- Feature
- Description
- Model

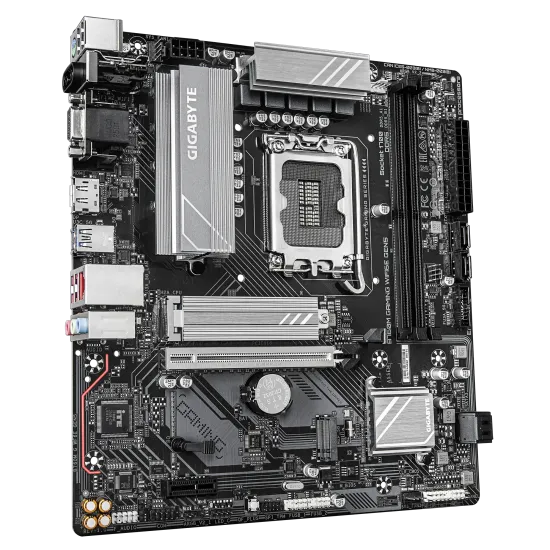

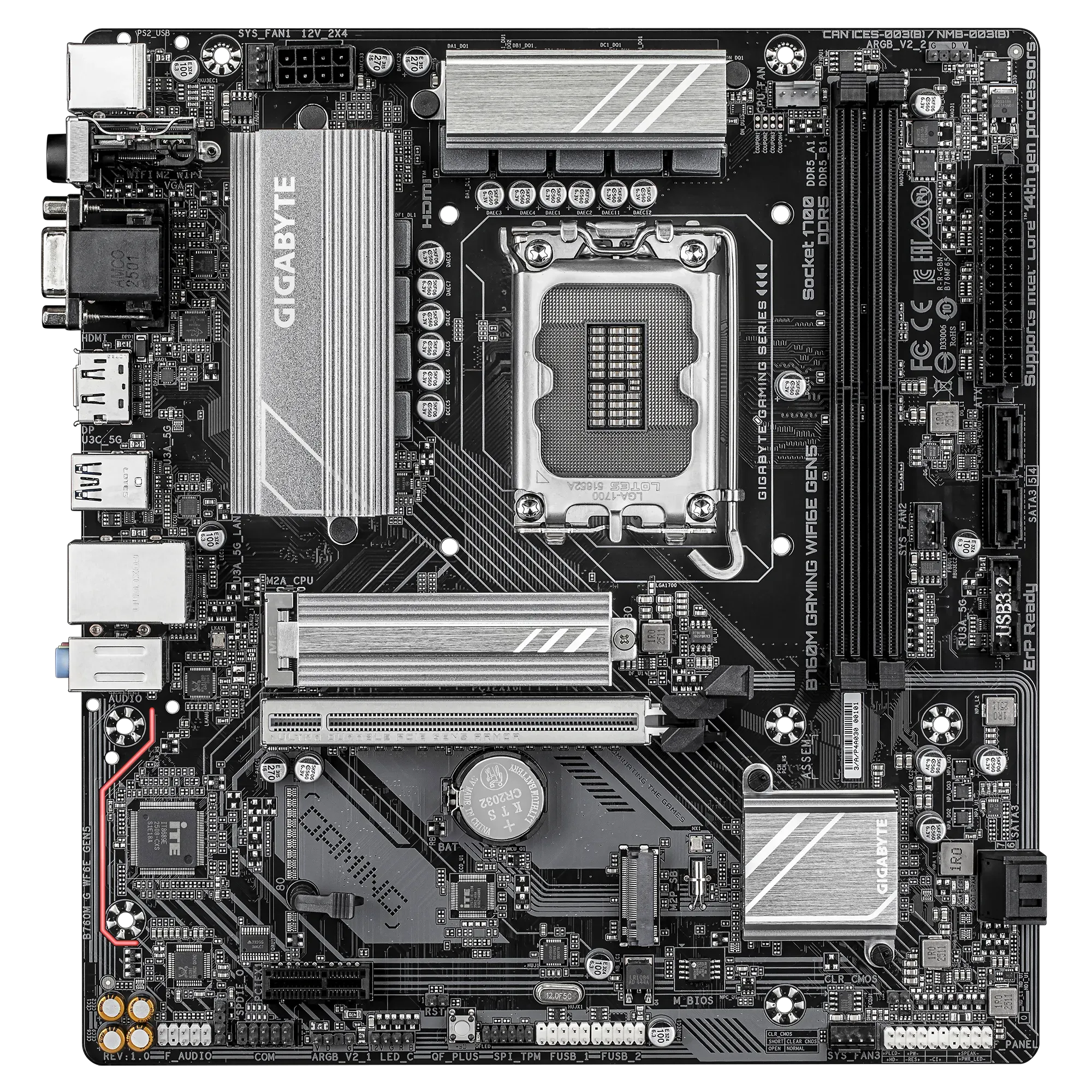

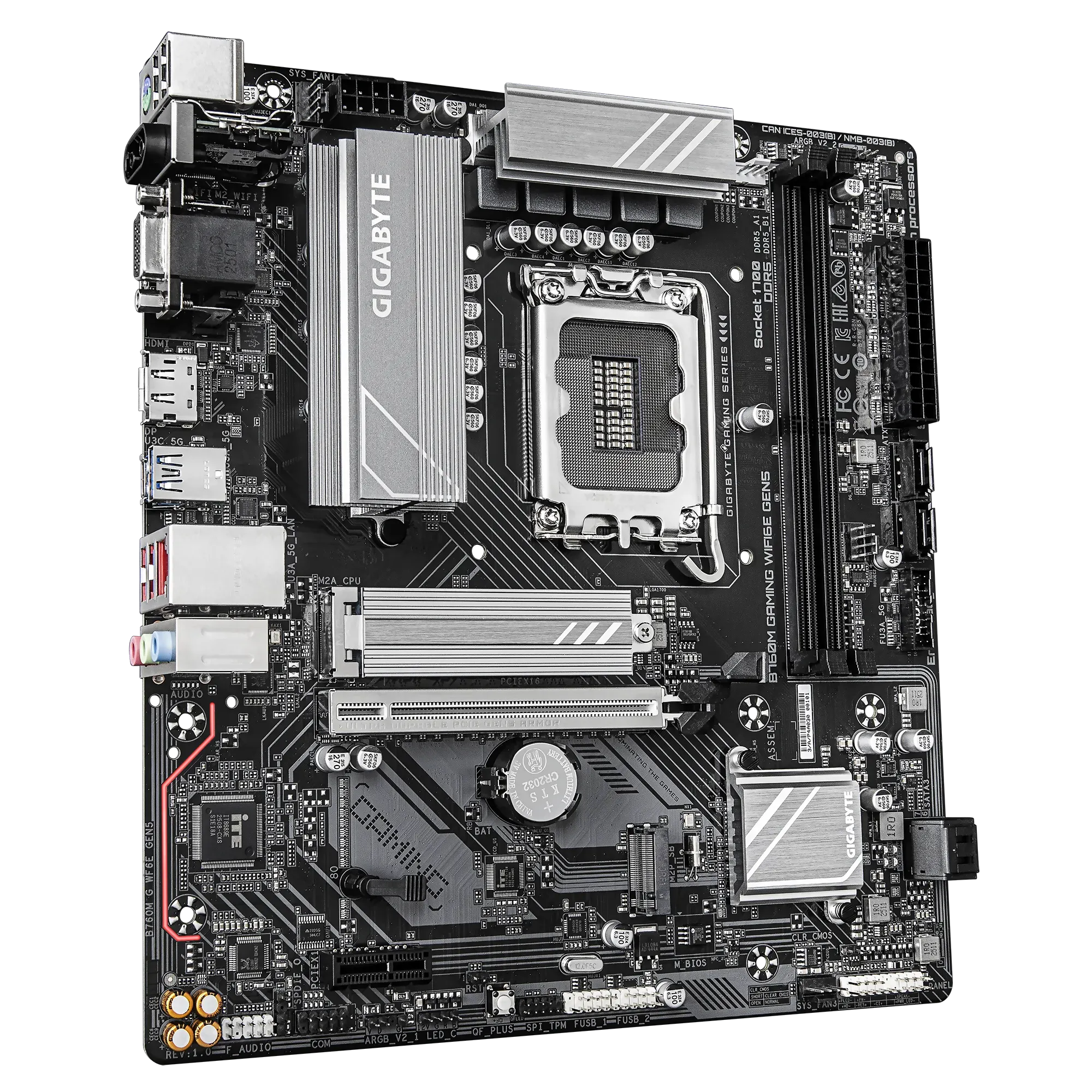

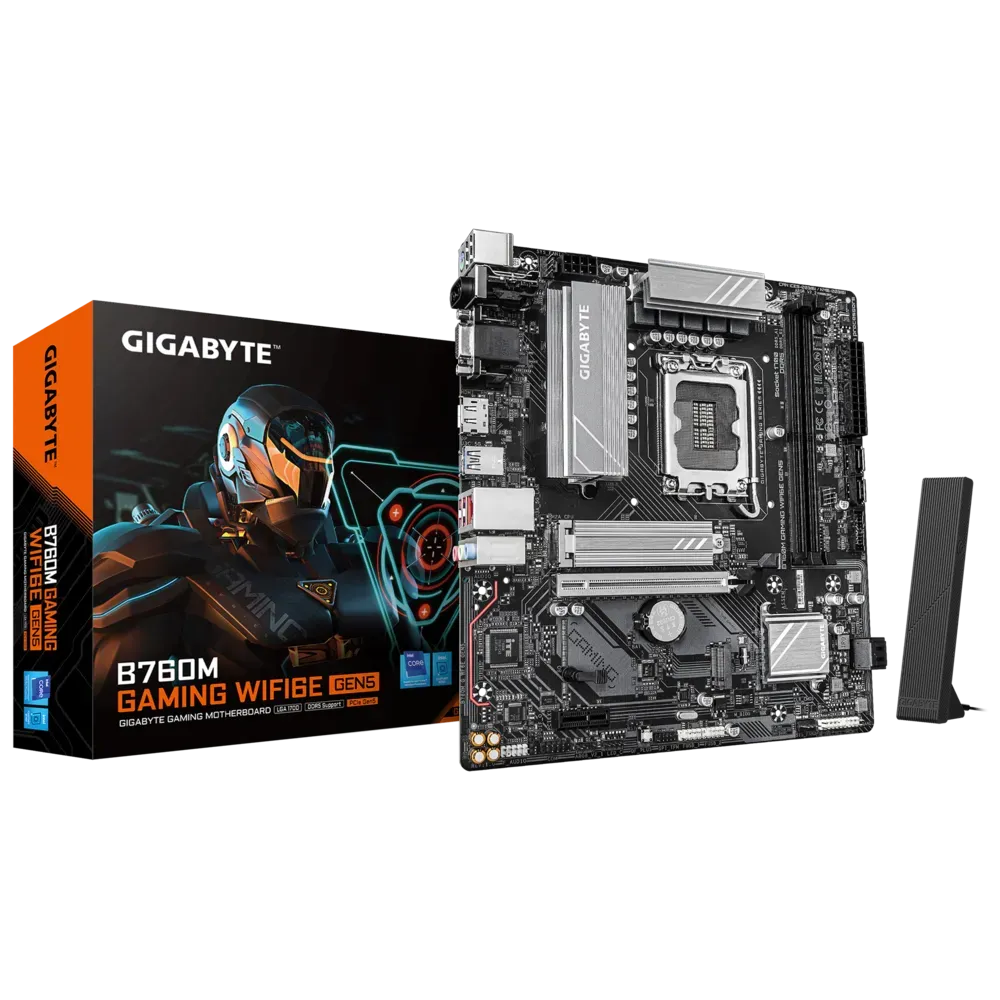

- Gigabyte B760M GAMING WIFI6E GEN5 DDR5
- CPU Support
- LGA1700 socket, Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron
- Chipset
- Intel® B760 Express
- Memory
- 2× DDR5 DIMM slots, up to 128GB, Dual channel, DDR5 8000(O.C.)+
- Graphics
- D-Sub, HDMI 2.1, DisplayPort 1.2, up to Triple Display
- Expansion
- 1× PCIe 5.0 x16, 1× PCIe 3.0 x1
- Storage
- 2× M.2 PCIe 4.0 NVMe, 4× SATA 6Gb/s, RAID 0/1/5/10
- Networking
- Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX210, Bluetooth 5.3

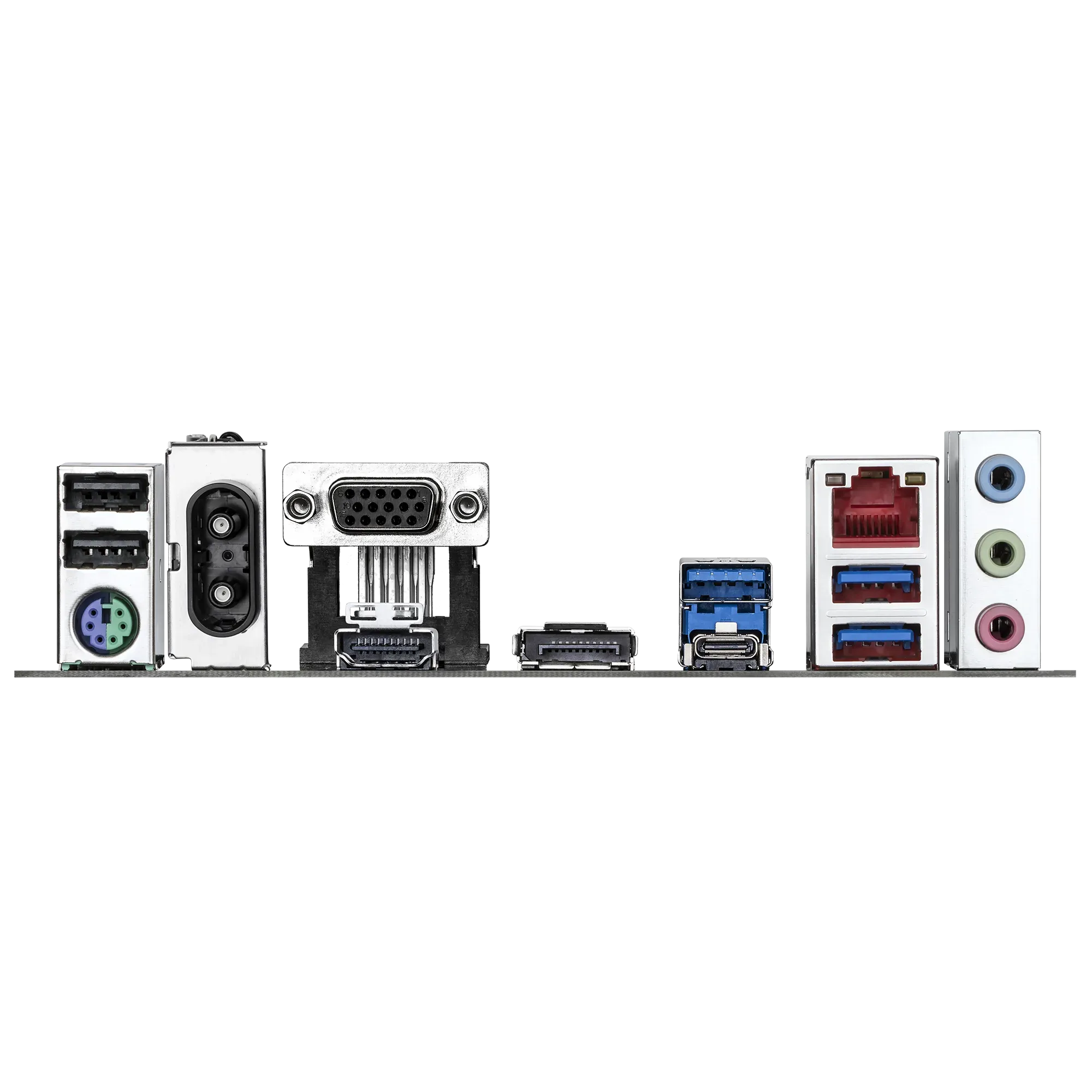

- USB Ports
- USB Type-C® 3.2 Gen1, multiple USB 3.2 Gen1 & USB 2.0
- Form Factor
- Micro ATX, 24.4 × 22.5 cm
