- Brand
- Gigabyte
- Model
- B760M DS3H WIFI6E DDR4
- Socket & Chipset
- Intel LGA1700, Intel B760 Express Chipset
- CPU Support
- Intel 14th, 13th & 12th Gen Core, Pentium Gold & Celeron Processors
- Memory Support
- 4 × DDR4 DIMM, Up to 128GB, Dual Channel, Up to 5333MHz (OC), XMP Support
- Expansion & Storage
- 1 × PCIe 5.0 x16, 2 × PCIe 3.0 x1, 2 × PCIe 4.0 M.2, 4 × SATA 6Gb/s
- Display Outputs
- 1 × HDMI 2.1, 2 × DisplayPort 1.2 (Triple Display Support)
- Networking
- 2.5GbE LAN, Intel Wi-Fi 6E AX210, Bluetooth 5.3

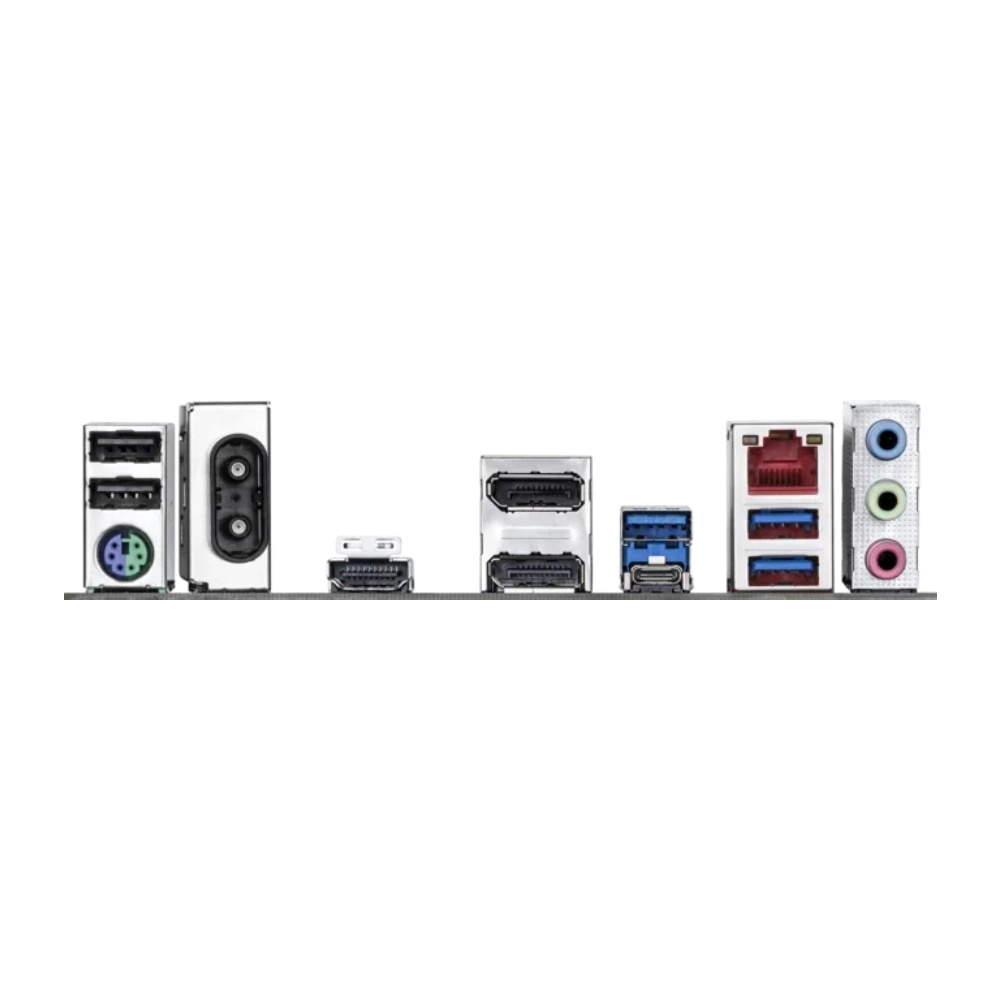

- Rear I/O
- USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0, RJ-45, PS/2, Audio Ports
- Key Features
- Intel B760 Chipset, Supports Intel 14th/13th/12th Gen Processors, DDR4 up to 128GB, PCIe 5.0 x16, Dual PCIe 4.0 M.2 Slots, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN, HDMI 2.1, DisplayPort and Q-Flash Plus
