- Feature
- Description
- Model

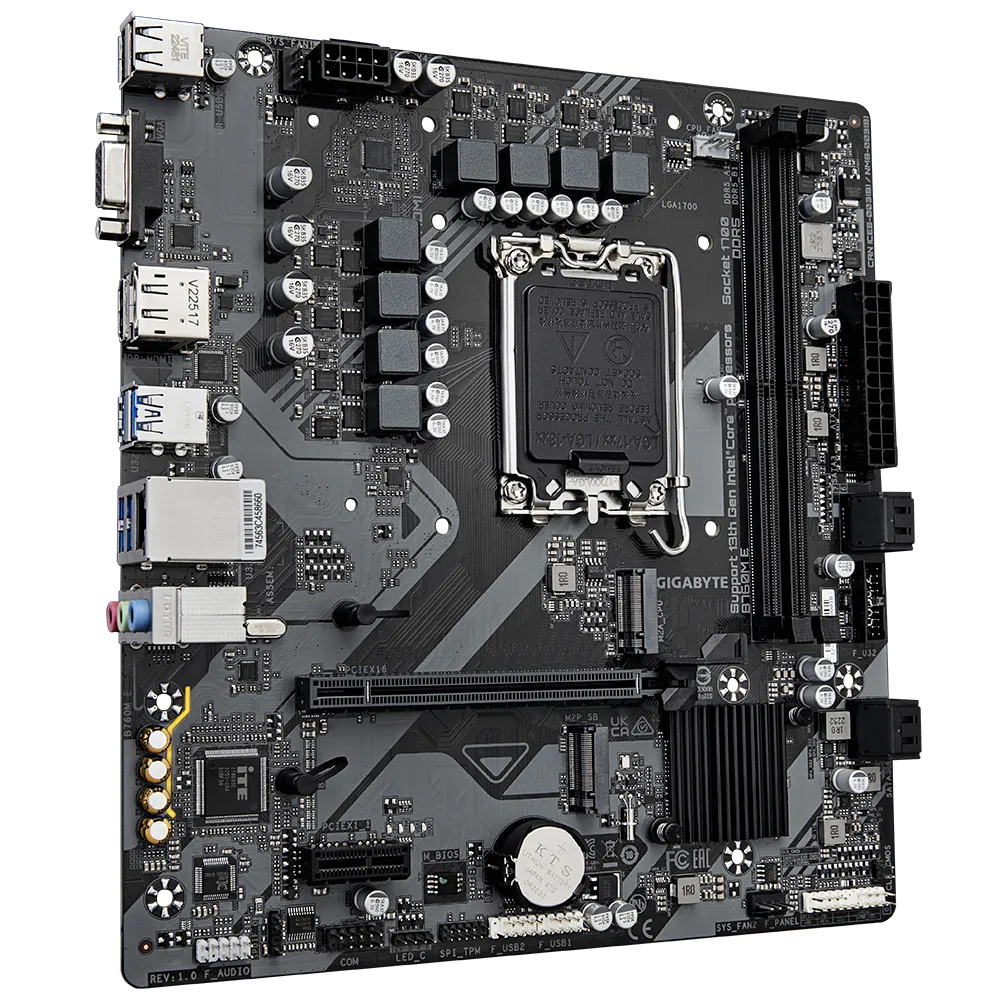

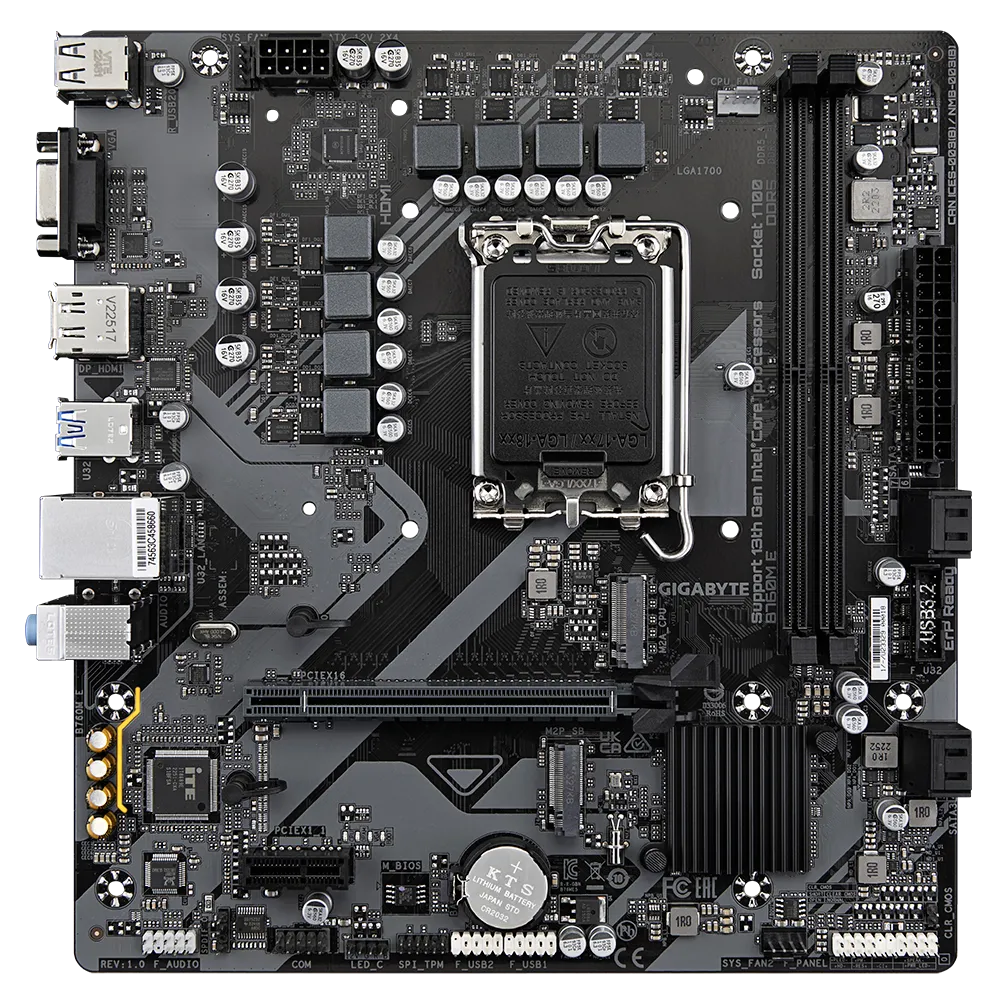

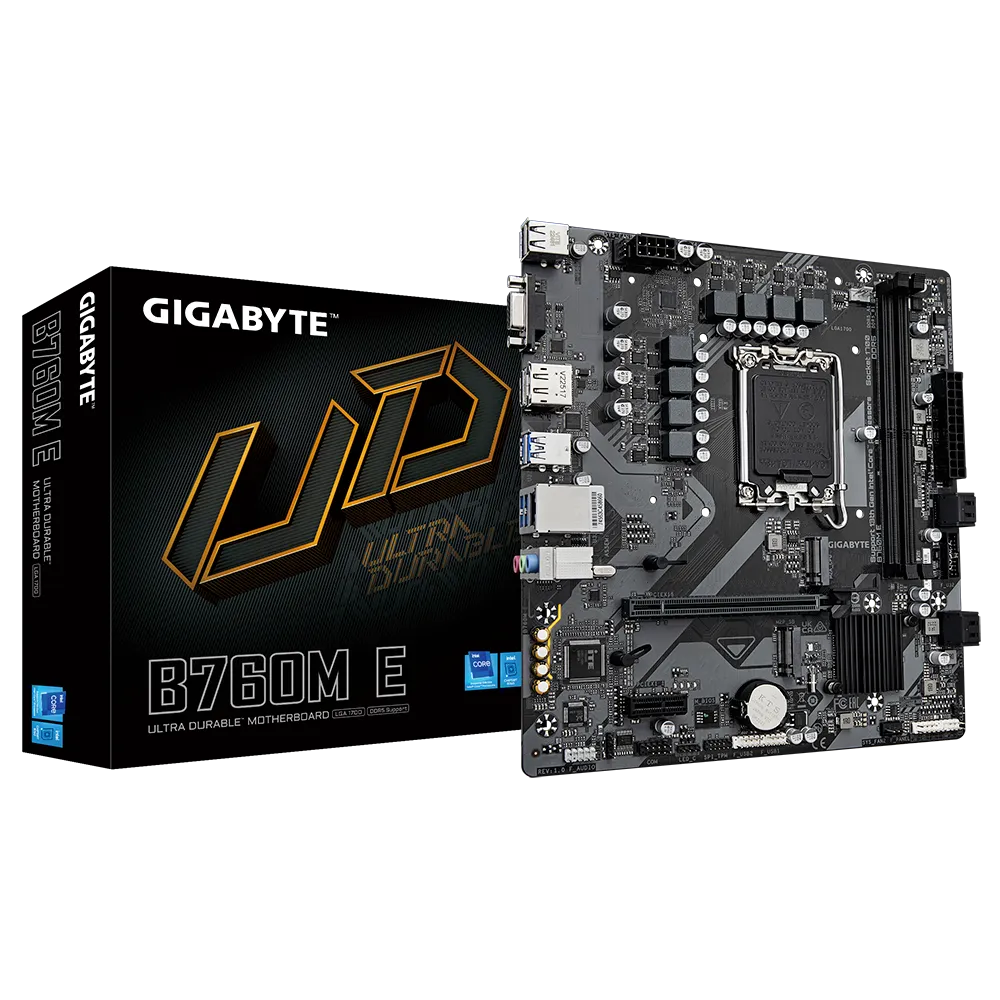

- Gigabyte B760M E DDR5
- CPU Support
- Intel 12th, 13th & 14th Gen (LGA1700)
- Chipset
- Intel B760 Express
- Memory
- DDR5 up to 7200+ MHz (OC), Dual Channel, 128GB Max

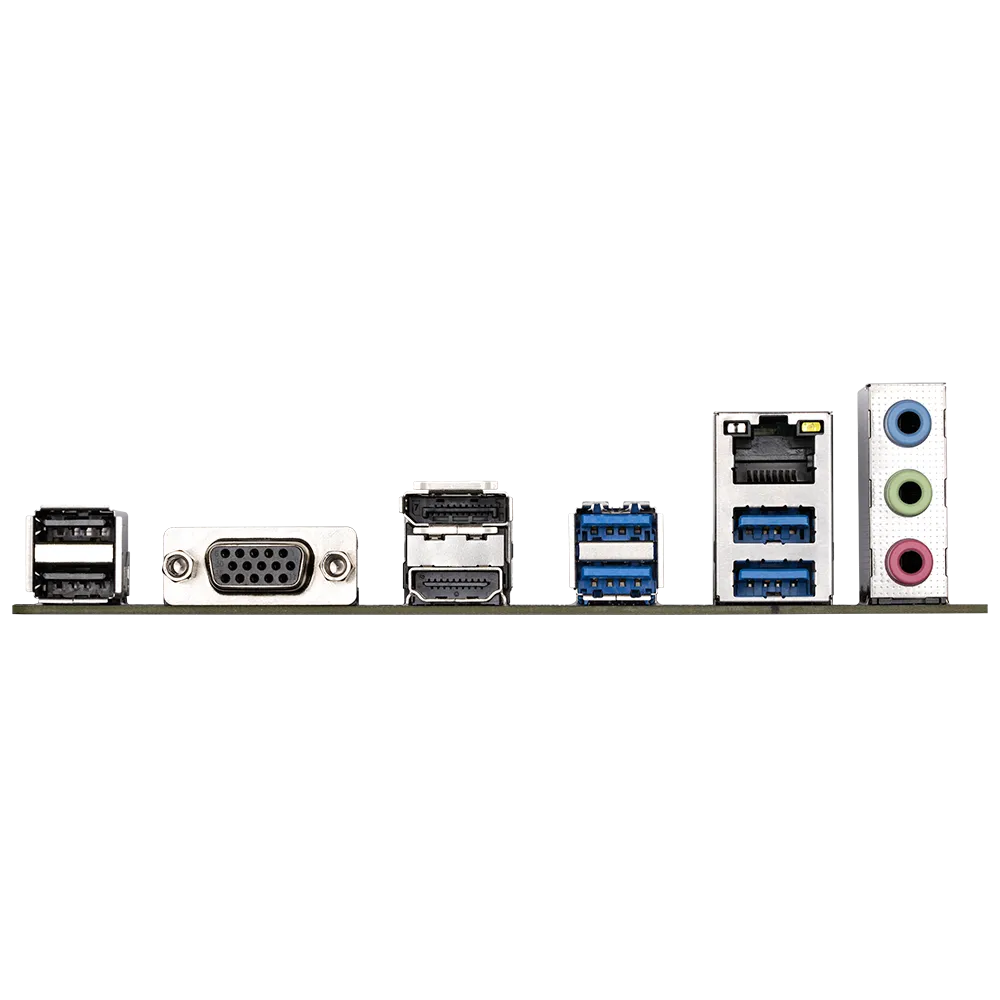

- Graphics Output
- HDMI 2.1, DisplayPort 1.2, D-Sub (Triple Display Support)
- Storage
- 2 × M.2 PCIe 4.0 Slots, 4 × SATA 6Gb/s
- Expansion Slots
- PCIe 4.0 x16 (GPU) + PCIe 3.0 x1
- LAN
- Realtek Gigabit LAN
- Audio
- Realtek HD Audio, 7.1 Channel Support
- USB Ports
- 4 × USB 3.2 Gen1, 2 × USB 2.0 (rear), others via headers
- Special Features
- Q-Flash, GCC Support, Fan/Temp Monitoring
- Form Factor
- Micro-ATX
