- CPU
- AMD Socket AM5, Ryzen™ 7000 / 8000 / 9000 Series
- Chipset
- AMD B650
- Memory
- DDR5 up to 8000 MT/s (OC), 4 DIMMs, 256 GB Max, Dual Channel, AMD EXPO/XMP support
- Graphics
- 2 x DisplayPort (4K@144Hz), 1 x HDMI 2.1 (4K@60Hz), Up to 3 displays
- Audio
- Realtek® Audio CODEC, 7.1-Channel HD Audio
- LAN
- Realtek® 2.5GbE LAN
- Wi-Fi / Bluetooth
- Wi-Fi 6E (RZ616 or AX210), Bluetooth 5.2 / 5.3
- PCIe Slots
- 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset)
- Storage
- 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s, RAID 0/1/10 for NVMe & SATA
- USB Ports
- USB 3.2 Gen 2 Type-C, Type-A, Gen 1, USB 2.0 (Internal & Rear)
- Internal Connectors
- 24-pin & 8-pin Power, Fan headers, RGB/ARGB, USB 3.2, TPM, CMOS

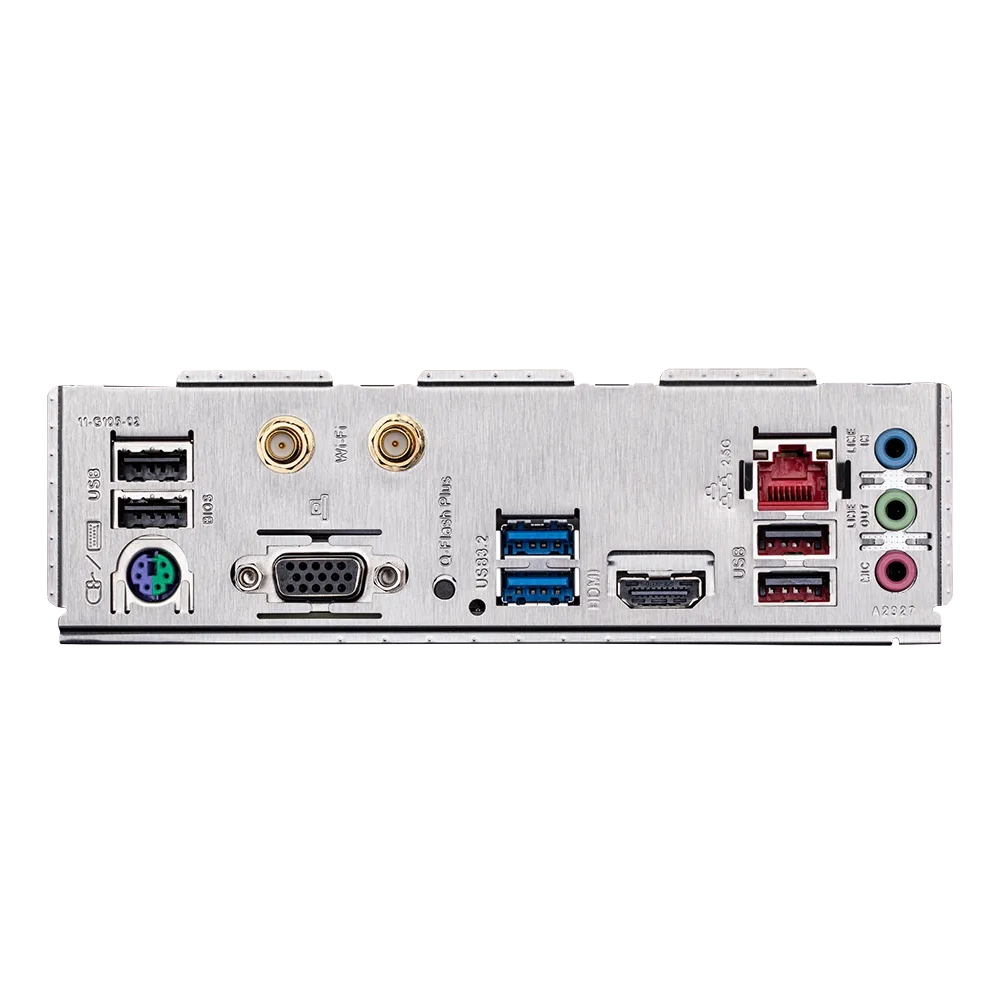

- Back Panel
- DP, HDMI, USB-C, USB-A, LAN, Audio, PS/2, Q-Flash, Antenna
