CPU

AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series Processors

Chipset

AMD X870

Memory

4 x DDR5 DIMM sockets, up to 256 GB Support for DDR5 8200(OC) to 4400 MT/s Dual channel, non-ECC Un-buffered DIMM Supports AMD EXPO™ and XMP profiles

Graphics

Integrated AMD Radeon™ Graphics - 2 x USB4® Type-C® (DP out, 3840x2160@240Hz) - 1 x HDMI 2.1 port (4096x2160@60Hz, HDR, HDCP 2.3)

Audio

Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel

LAN

Realtek® 2.5GbE LAN chip

Wi-Fi/Bluetooth

Realtek® Wi-Fi 6 RTL8851BE Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz), Bluetooth 5.3

PCIe Slots

- 1 x PCIe x16 (CPU): • Ryzen™ 9000/7000: PCIe 5.0 x16 • Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 • Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 - 2 x PCIe x16 (Chipset): PCIe 3.0 x1

Storage

- 3 x M.2 Slots: • M2A_CPU (PCIe 5.0/4.0 x4/x2) • M2B_SB (PCIe 4.0 x4/x2) • M2C_SB (PCIe 4.0 x2) - 4 x SATA 6Gb/s - RAID 0/1/5/10 for NVMe (RAID 5 on Ryzen 9000 only) - RAID 0/1/10 for SATA

USB Ports

- Rear: 2 x USB4® Type-C®, 1 x USB 3.2 Gen2 (red), 3 x USB 3.2 Gen1, 4 x USB 2.0 - Internal: 1 x USB-C Gen 2x2, 2 x USB 3.2 Gen1, 4 x USB 2.0

Internal Connectors

- 24-pin ATX, 8-pin + 4-pin CPU power - 1 x CPU fan, 1 x CPU/water pump, 4 x system fan - 3 x ARGB Gen2, 1 x RGB header - 3 x M.2, 4 x SATA - USB: 1 x USB-C Gen2x2, 1 x USB 3.2 Gen1, 4 x USB 2.0 - Front panel, audio header, TPM, reset, Clear CMOS

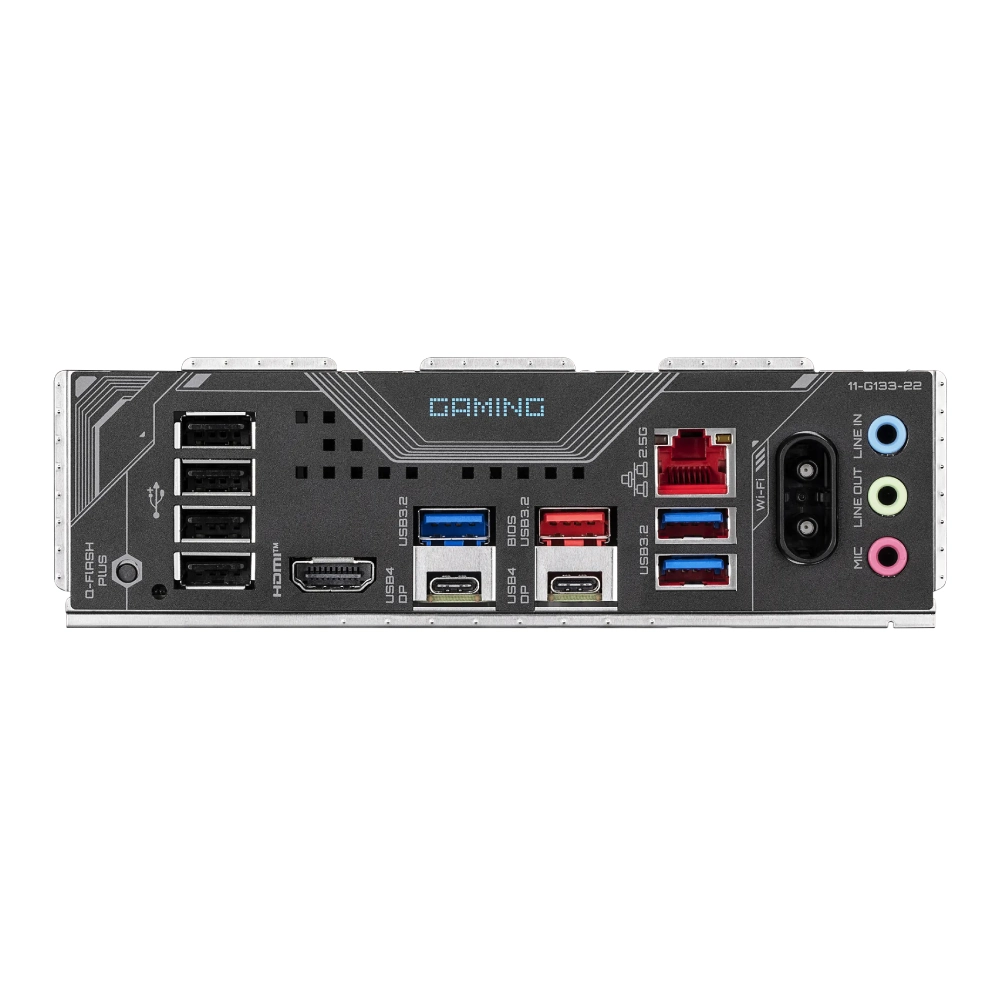

Back Panel

- 1 x Q-Flash Plus button - 2 x SMA antenna connectors - 1 x HDMI - 2 x USB4® Type-C® (DP out) - 1 x USB 3.2 Gen2 (red), 3 x USB 3.2 Gen1, 4 x USB 2.0 - 1 x RJ-45, 3 x audio jacks

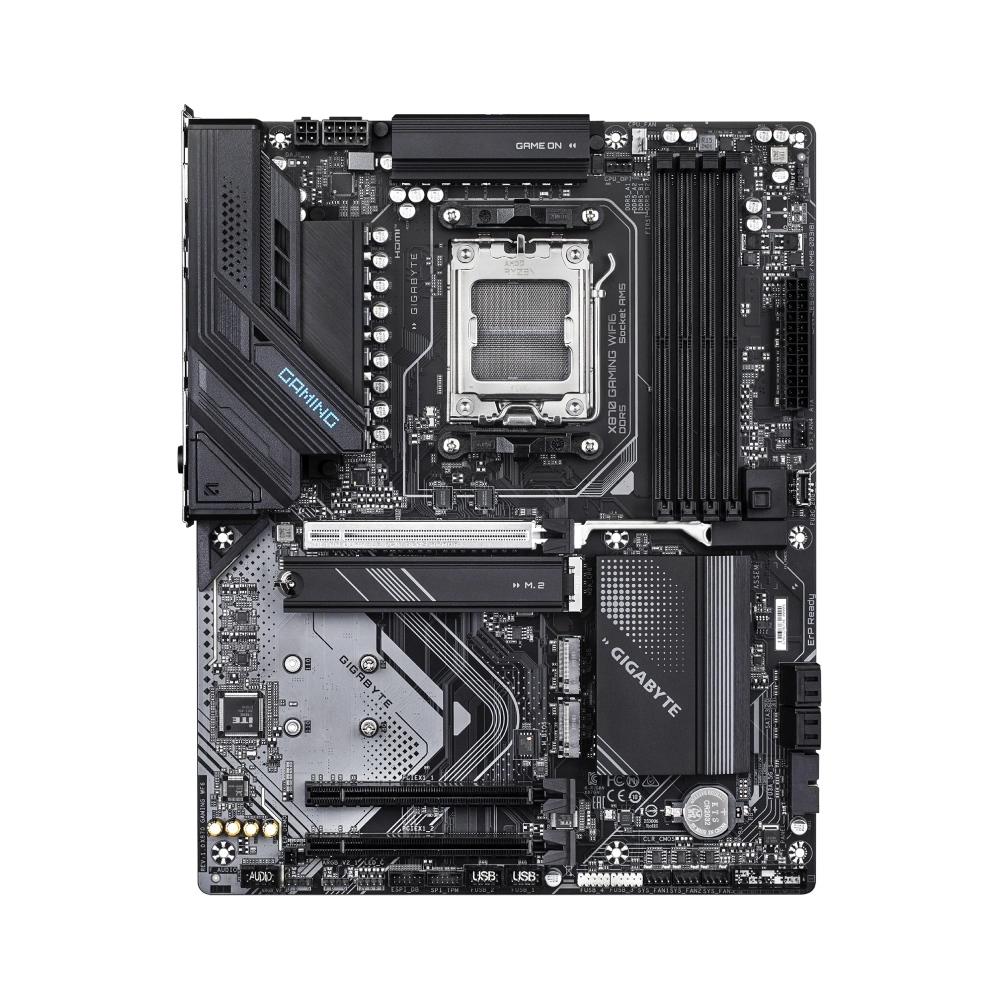

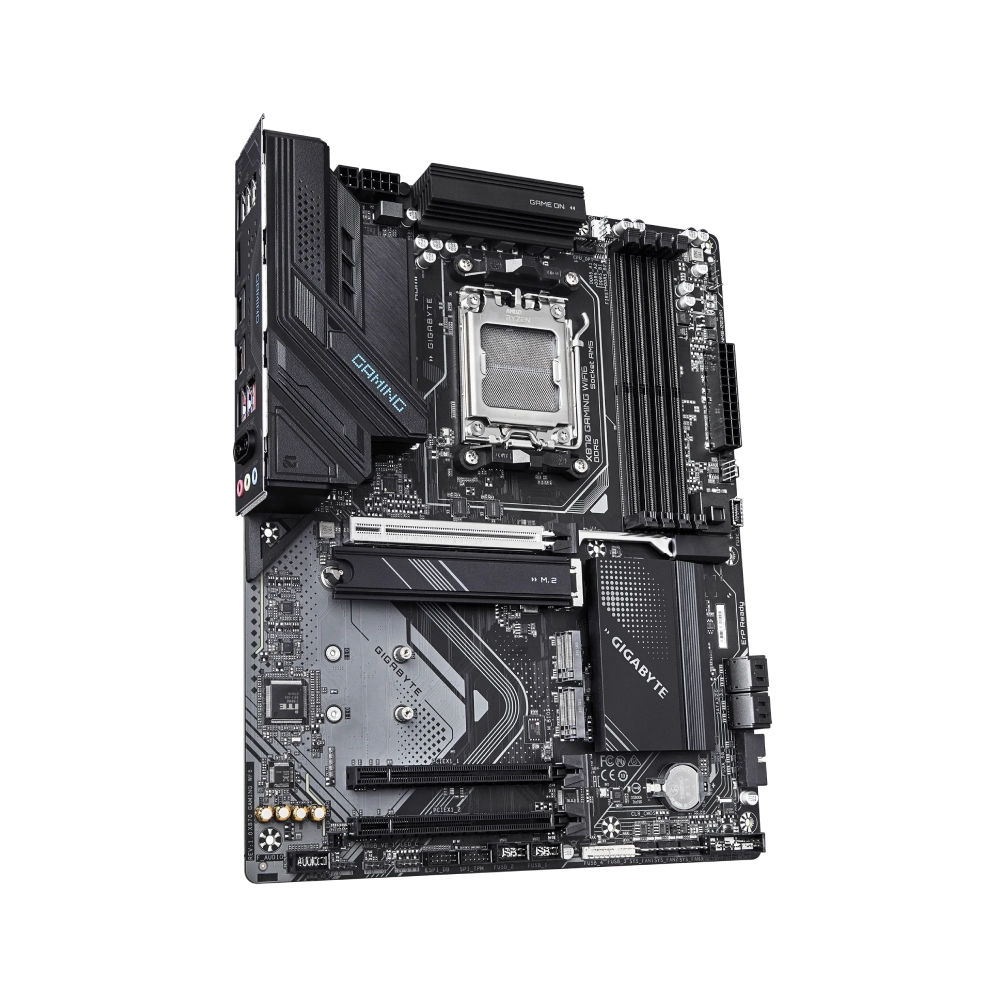

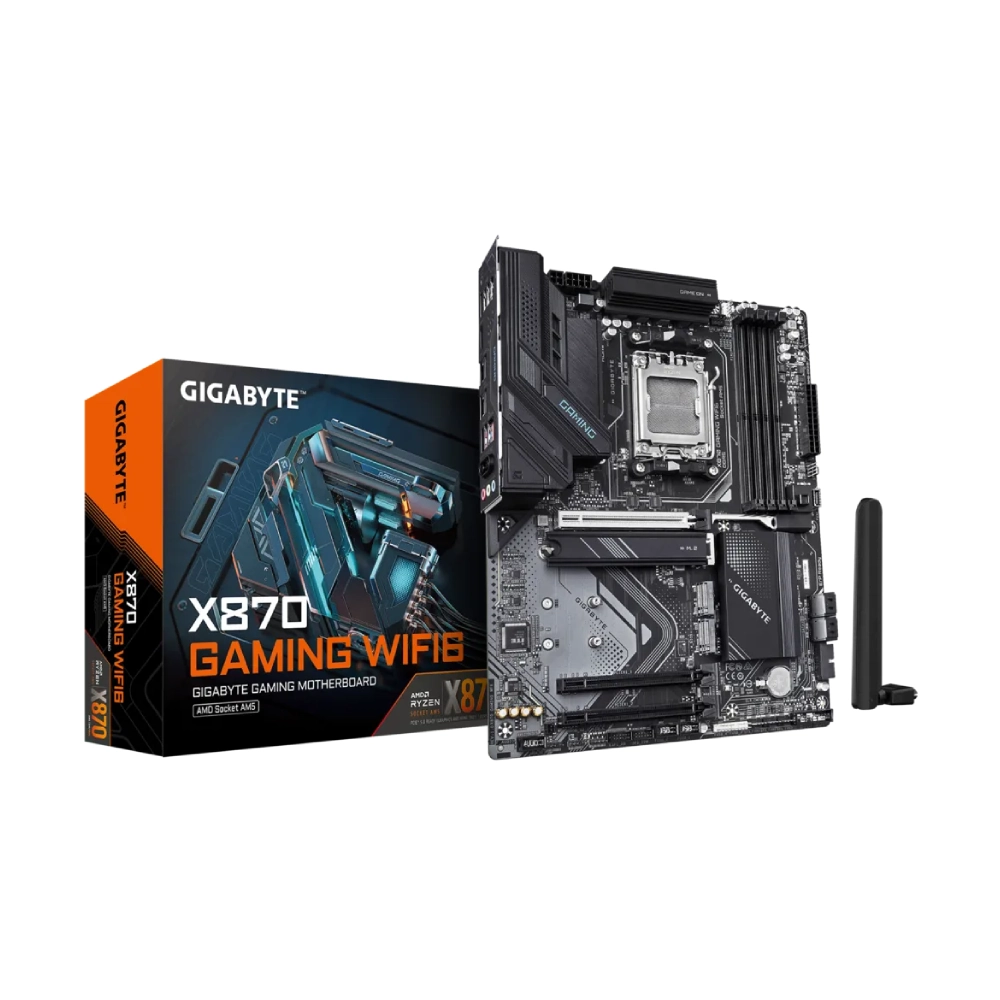

Gigabyte Motherboard X870 Gaming WIFI 6 DDR5 For AMD
