- Main Points
- Specifications
- CPU
- AMD Socket AM5: Supports Ryzen™ 9000 / 8000 / 7000 Series Processors
- Chipset
- AMD X870
- Memory
- 4 x DDR5 DIMM sockets, up to 256 GB Supports DDR5 up to 8200(OC) MT/s Dual Channel Architecture Non-ECC Un-buffered DIMMs, AMD EXPO™ and XMP support
- Graphics
- Integrated AMD Radeon™ Graphics: - 1 x HDMI (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) - 2 x USB4® Type-C (3840x2160@240 Hz, DisplayPort 1.4, HDR) * Graphics support varies by CPU
- Audio
- Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel * Configurable via audio software
- LAN
- Realtek® 2.5GbE LAN (2.5G/1G/100M)
- Wi-Fi / Bluetooth
- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) Supports 2.4/5/6 GHz, Bluetooth 5.4, 11be 160MHz * Requires Windows 11 SV3
- PCIe Slots
- 1 x PCIe x16 (from CPU): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 2 x PCIe x1 (PCIe 3.0, from chipset)
- Storage
- - 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 - 1 x M.2 (M2B_SB): PCIe 4.0 x4/x2 - 1 x M.2 (M2C_SB): PCIe 4.0 x2 * M2B_SB shares bandwidth with M2C_SB - 4 x SATA 6Gb/s RAID 0/1/5/10 (NVMe – RAID 5 only on Ryzen 9000) RAID 0/1/10 (SATA)
- USB Ports
- Rear: - 2 x USB4® Type-C (DisplayPort) - 1 x USB 3.2 Gen 2 Type-A (Red) - 3 x USB 3.2 Gen 1 - 4 x USB 2.0 Internal: - 1 x USB 3.2 Gen 2x2 Type-C header - 2 x USB 3.2 Gen 1 (via header) - 4 x USB 2.0 (via headers)
- Internal Connectors
- - 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V - 1 x CPU fan, 1 x CPU/water pump header, 4 x system fan headers - 3 x M.2, 4 x SATA - 3 x ARGB Gen2 headers, 1 x RGB header - Front panel, front audio, power/reset buttons, reset jumper, Clear CMOS jumper - TPM header - USB: 1 x Gen 2x2 Type-C, 1 x Gen 1 header, 2 x USB 2.0 headers

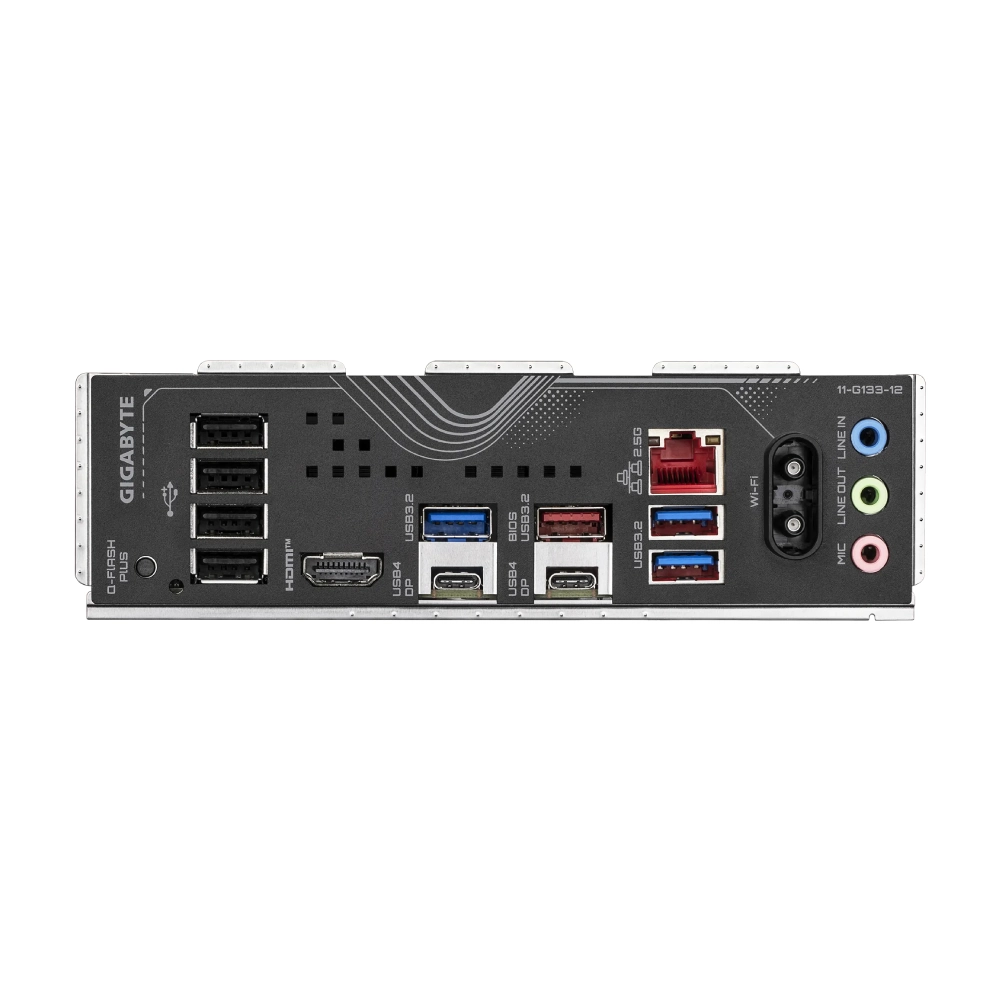

- Back Panel
- - 1 x Q-Flash Plus button - 2 x antenna connectors - 1 x HDMI - 2 x USB4® Type-C - 1 x USB 3.2 Gen 2 Type-A - 3 x USB 3.2 Gen 1 - 4 x USB 2.0 - 1 x RJ-45 LAN - 3 x audio jacks
