- Chipset
- Intel H610 Chipset
- CPU Socket & Support
- LGA 1700, Supports Intel Core 14th, 13th & 12th Gen Processors, Pentium Gold & Celeron Processors
- Memory Support
- 2 × DDR4 DIMM Slots, Up to 64GB, 1866–3200 MHz, Dual-Channel, Non-ECC Unbuffered Memory
- Graphics Output
- 1 × HDMI 1.4 with HDR, Up to 4K @ 30Hz (Requires Processor with Integrated Graphics)
- Expansion Slots
- 1 × PCIe 4.0 x16 Slot, 1 × PCIe 3.0 x1 Slot
- Storage Support
- 1 × M.2 PCIe 3.0 x4 Slot (2242/2260/2280), 2 × SATA 6Gb/s Ports
- Audio
- Realtek ALC897 Codec, 7.1-Channel High Definition Audio
- LAN Connectivity
- Realtek RTL8111H Gigabit Ethernet LAN
- Wireless Connectivity
- Wi-Fi 6E (802.11ax), 2.4GHz / 5GHz / 6GHz, Up to 2.4Gbps, MU-MIMO Support, Pre-installed M.2 Key-E Wireless Module

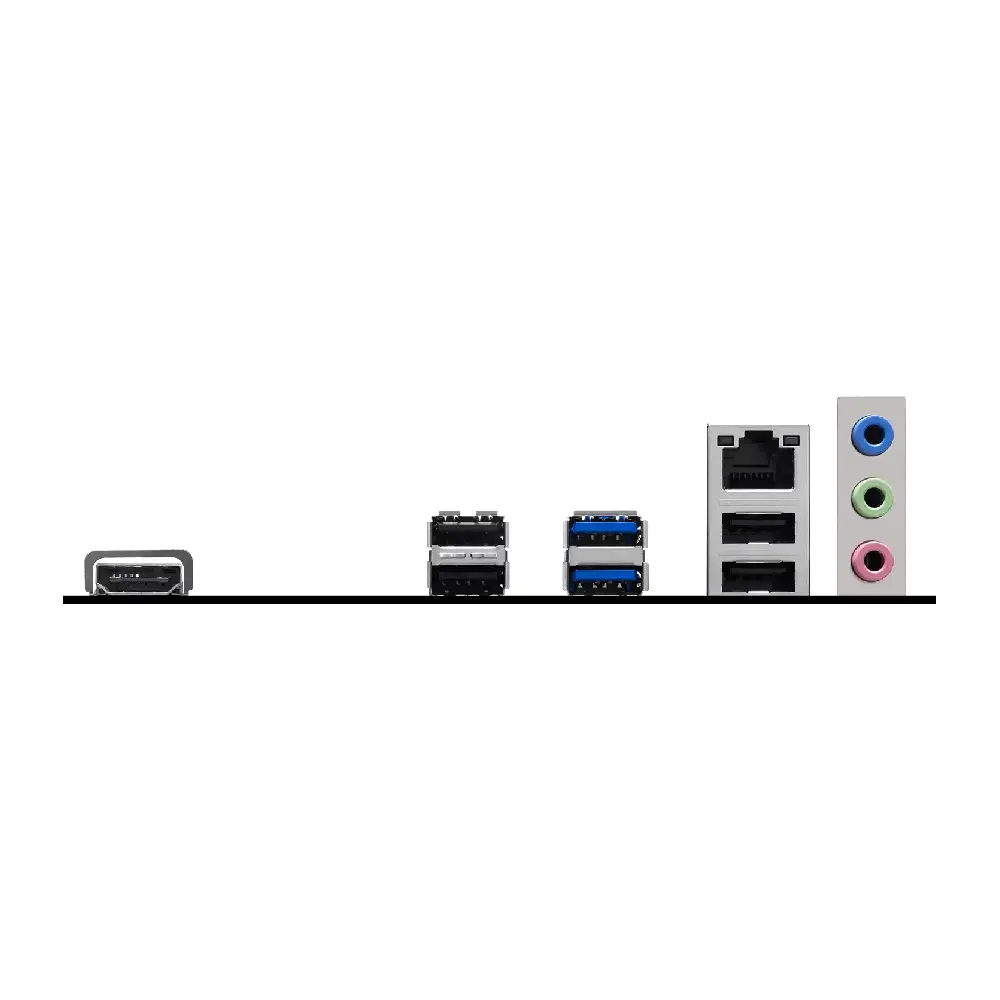

- Rear USB Ports
- 2 × USB 5Gbps Type-A, 4 × USB 2.0
- Front USB Support
- 2 × USB 5Gbps Type-A, 4 × USB 2.0 (Via Internal Headers)
- Internal Connectors & Features
- ATX & CPU Power Connectors, CPU/System Fan Headers, Front Panel & Audio Headers, TPM 2.0 Header, Chassis Intrusion Header
