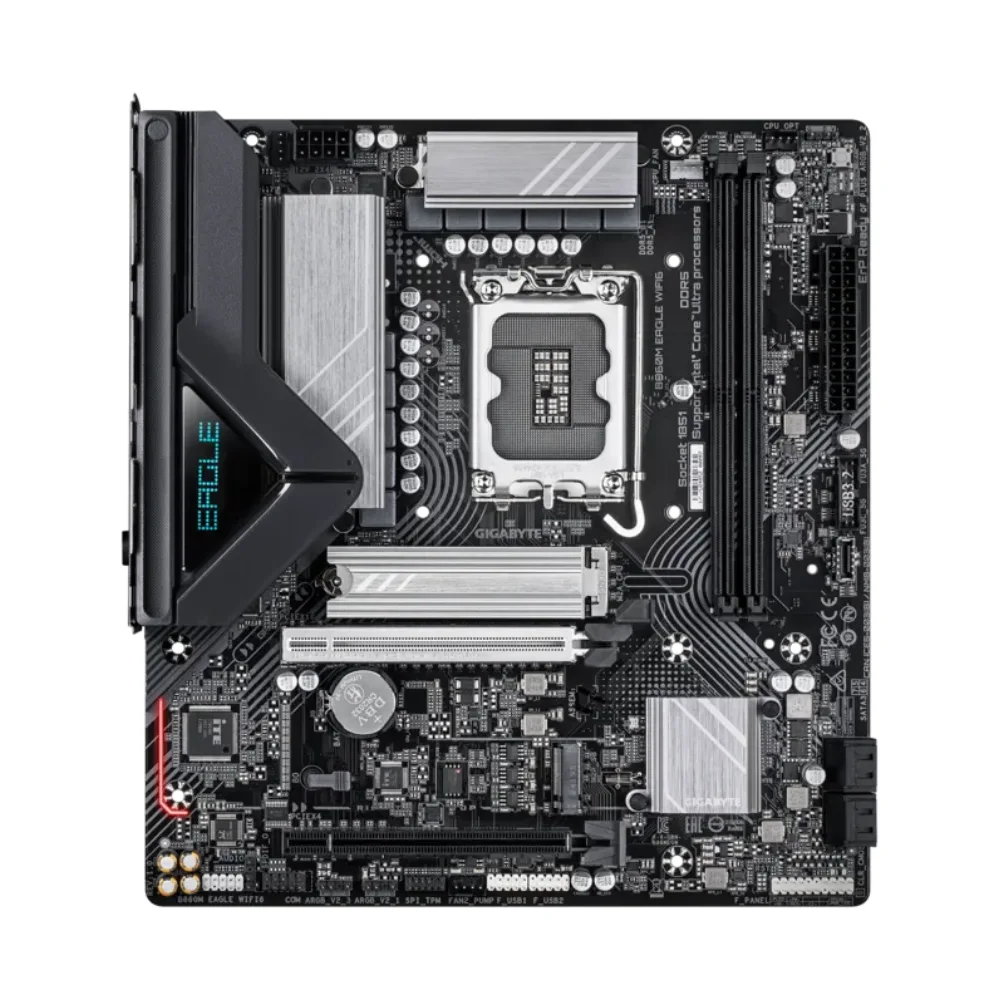

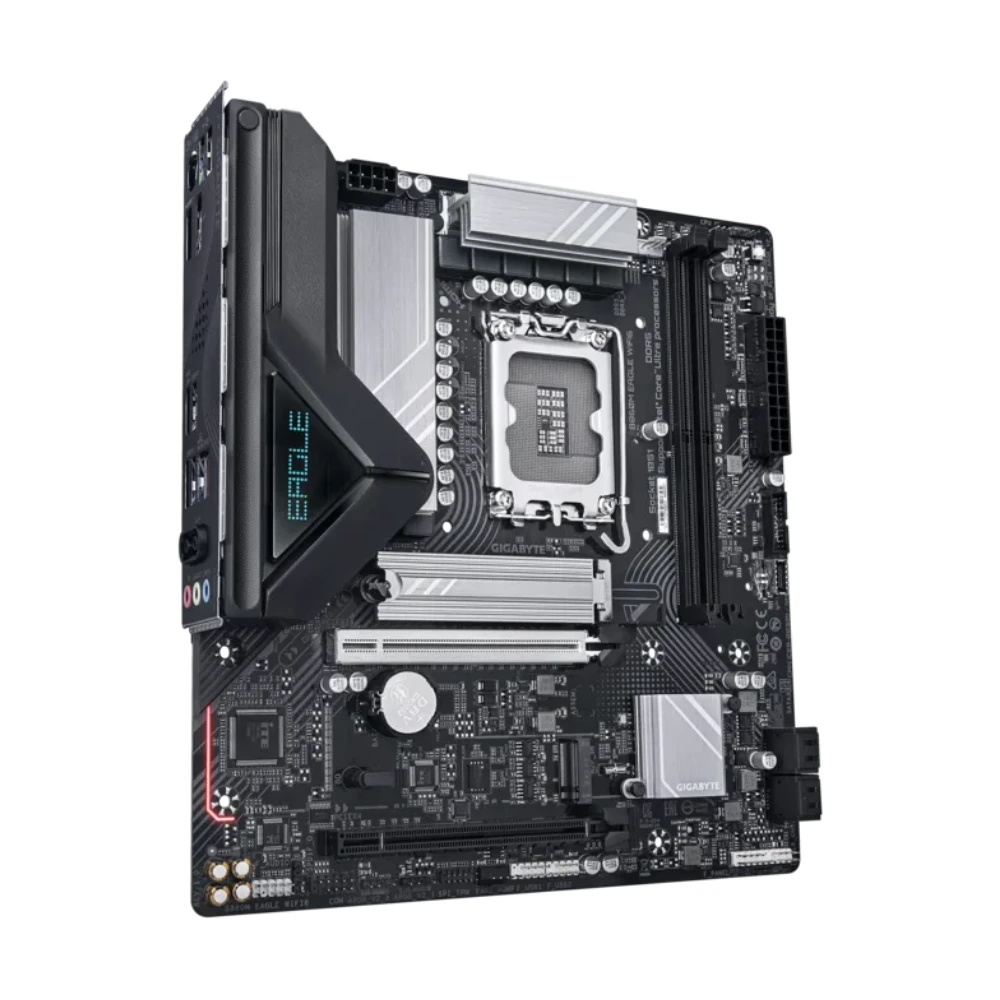

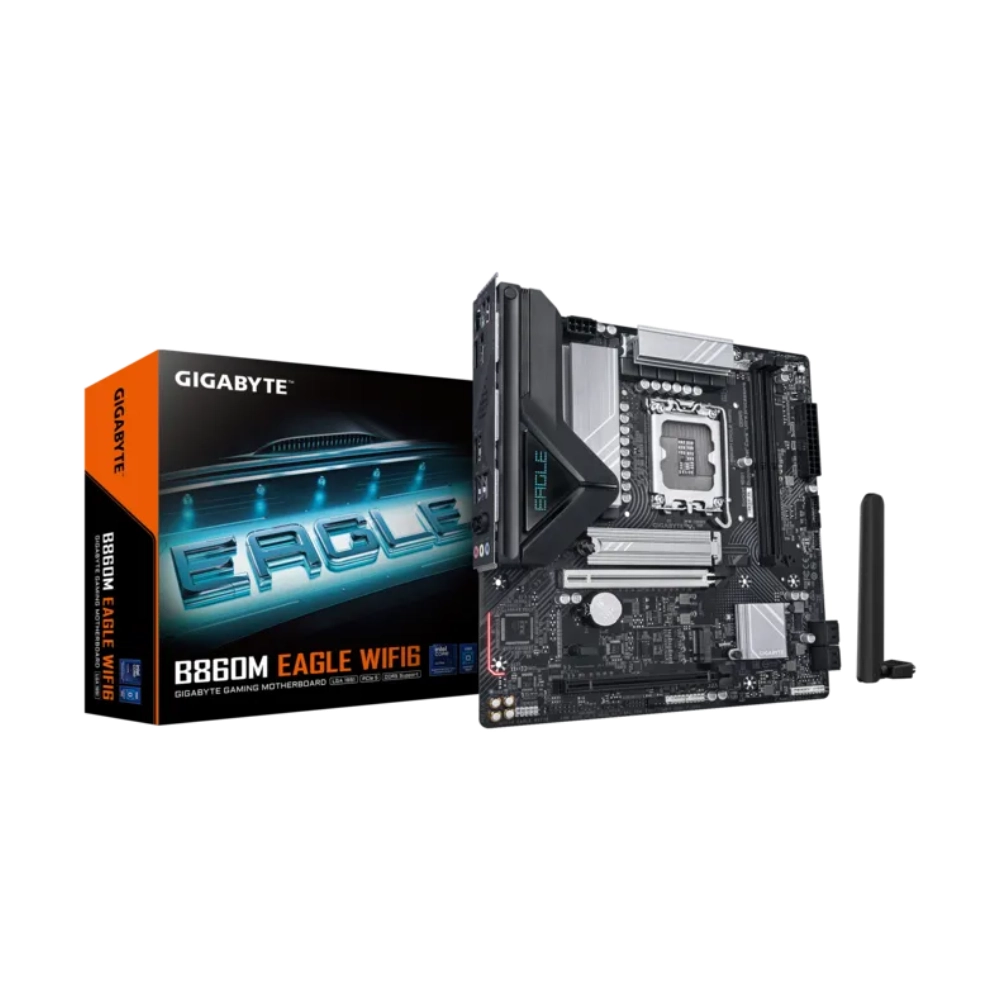

Gigabyte Motherboard B860M EAGLE WIFI6 DDR5 For Intel Ultra Processors

Product ID: A0842
Item CD: 15MXKHS
Model: B860M EAGLE WIFI6
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

For More Information: 70738 88300

Specifications

Main Point: Details
CPU: LGA1851 socket: Supports Intel® Core™ Ultra Processors L3 cache varies with CPU
Chipset: Intel® B860 Express Chipset
Memory: Supports DDR5 9066(O.C) to 5600 MT/s memory modules 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel architecture Supports ECC/Non-ECC Un-buffered DIMMs Supports Intel® XMP
Graphics: Integrated Intel® HD Graphics (CPU dependent) 1 x HDMI 2.1 (4096x2160@60 Hz, HDCP 2.3) 1 x DisplayPort 2.1 (3840x2160@144 Hz)
Audio: Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel support S/PDIF Out supported
LAN: Realtek® 2.5GbE LAN chip (2.5G/1G/100 Mbps)
Wi-Fi / Bluetooth: (PCB rev. 1.0) Intel® Wi-Fi 6 AX211 + Bluetooth 5.3 (PCB rev. 1.1) Realtek® Wi-Fi 6 RTL8852CE + Bluetooth 5.3 Supports 2.4/5/6 GHz bands, 11ax 160MHz
PCIe Slots: 1 x PCIe 5.0 x16 (CPU) 2 x PCIe 4.0 x1 (Chipset)
Storage: CPU: 1 x M.2 PCIe 5.0x4/x2 (M2A_CPU) Chipset: 2 x M.2 PCIe 4.0x4/x2 (M2Q_SB, M2P_SB) 4 x SATA 6Gb/s Supports RAID 0/1/5/10
USB Ports: Rear: 1 x USB-C (3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A (red), 4 x USB 2.0 Internal: 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal Connectors: 1 x 24-pin ATX, 1 x 8-pin 12V 1 x CPU fan, 1 x CPU/WC pump, 4 x system fan (2 with pump support) 3 x ARGB Gen2, 1 x RGB LED header 3 x M.2, 4 x SATA 1 x front panel, audio, S/PDIF, serial, TPM, Q-Flash Plus, reset, Clear CMOS 1 x USB-C (Gen1), 1 x USB 3.2 Gen1, 2 x USB 2.0
Back Panel: 1 x PS/2, 1 x HDMI, 1 x DisplayPort 1 x USB-C (3.2 Gen 2x2), 1 x USB 3.2 Gen2 Type-A (red) 4 x USB 2.0 2 x antenna connectors, 1 x RJ-45 3 x audio jacks
