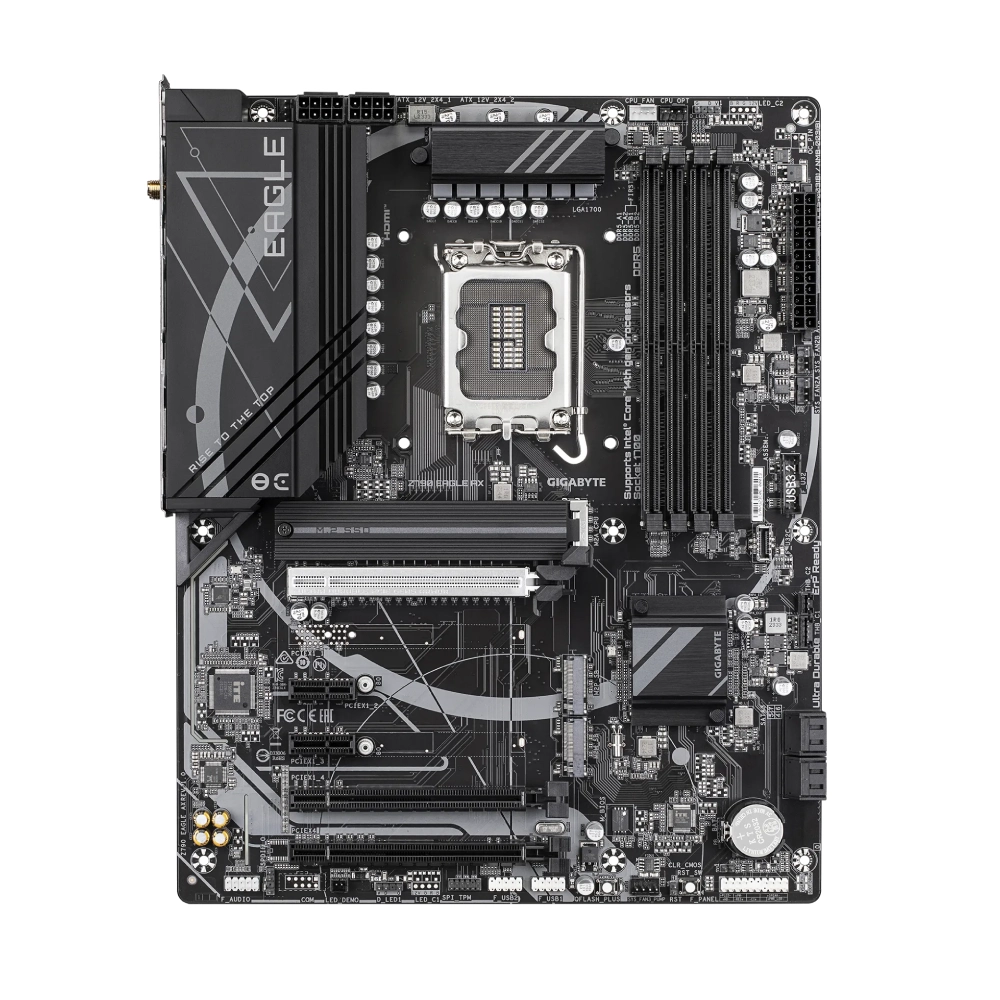

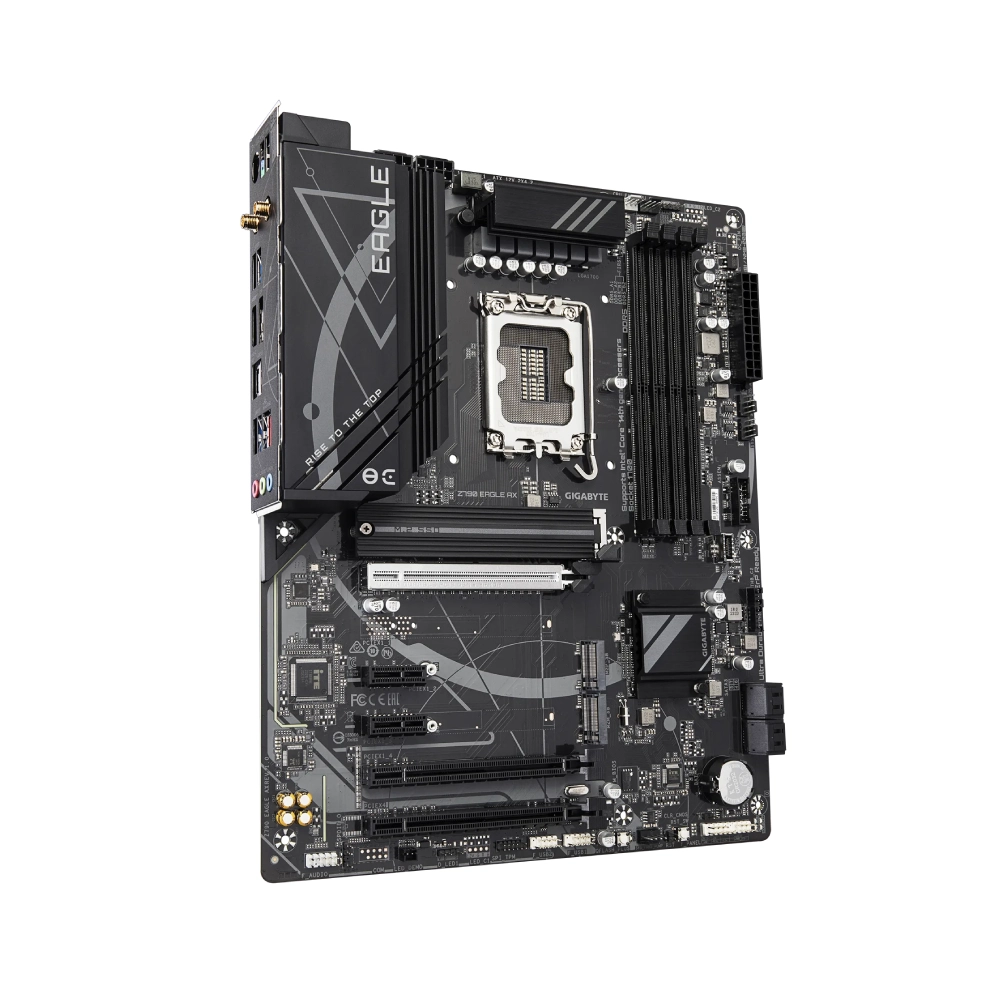

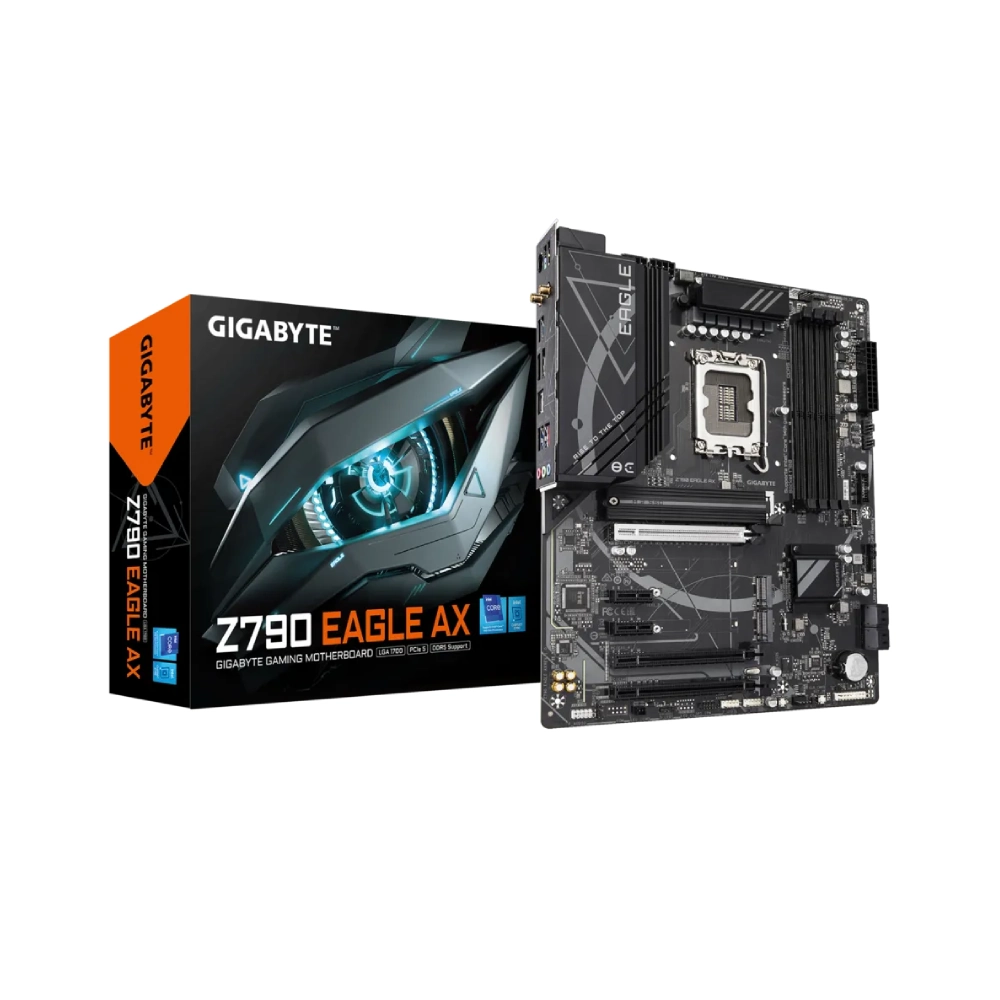

Gigabyte Motherboard Z790 EAGLE AX WIFI DDR5 For INTEL 14th | 13th | 12th Gen

Name: Gigabyte Motherboard Z790 EAGLE AX WIFI DDR5 For INTEL 14th | 13th | 12th Gen
Brand: GIGABYTE
SKU: 15JT728
Price: 19636 INR
Availability: InStock

Product IDA0822

Item CD15JT728

ModelZ790 EAGLE AX

Warranty Period3 Years

Service Center ListView Product URLView Product Product RegistrationClick here

₹19,636

In Stock

Compatible Products

COMPATIBLE RAMS COMPATIBLE PROCESSOR

Feature	Specification
CPU	LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	14th & 13th Gen i9/i7: DDR5 up to 7600(O.C.) MT/s 13th Gen i5/i3 & 12th Gen: DDR5 4800/4400 MT/s 4 x DDR5 DIMM sockets (up to 256 GB) Dual channel, ECC & non-ECC support XMP support
Graphics	Intel® HD Graphics (CPU-dependent) - 1 x HDMI: 4096x2160@60 Hz (HDMI 2.1) - 1 x DisplayPort: 4096x2304@60 Hz (DP 1.2)
Audio	Realtek® Audio CODEC HD Audio: 2/4/5.1/7.1-channel S/PDIF Out support
LAN	Realtek® 2.5GbE LAN (2.5G/1G/100M)
Wi-Fi / Bluetooth	Intel® Wi-Fi 6E AX211 (BT 5.3) or Realtek® RTL8852CE (BT 5.3) Supports 2.4/5/6 GHz, 11ax 160MHz (Wi-Fi 6E support)
PCIe Slots	CPU: 1 x PCIe 5.0 x16 (PCIEX16) Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1
Storage	CPU: 1 x M.2 PCIe 4.0 x4/x2 (M2A_CPU) Chipset: 2 x M.2 (PCIe 4.0 + SATA support) 4 x SATA 6Gb/s RAID 0/1/5/10 support for NVMe & SATA
USB Ports	Back Panel: 1 x USB-C (3.2 Gen 2), 1 x USB-A (3.2 Gen 2), 4 x USB 3.2 Gen 1, 2 x USB 2.0 Internal: 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Internal Connectors	1 x 24-pin ATX, 2 x 8-pin 12V CPU & system fan/pump headers 3 x M.2, 4 x SATA USB-C, USB 3.2 Gen 1, USB 2.0 headers RGB/ARGB headers, TPM, Thunderbolt add-in, Q-Flash Plus, Clear CMOS

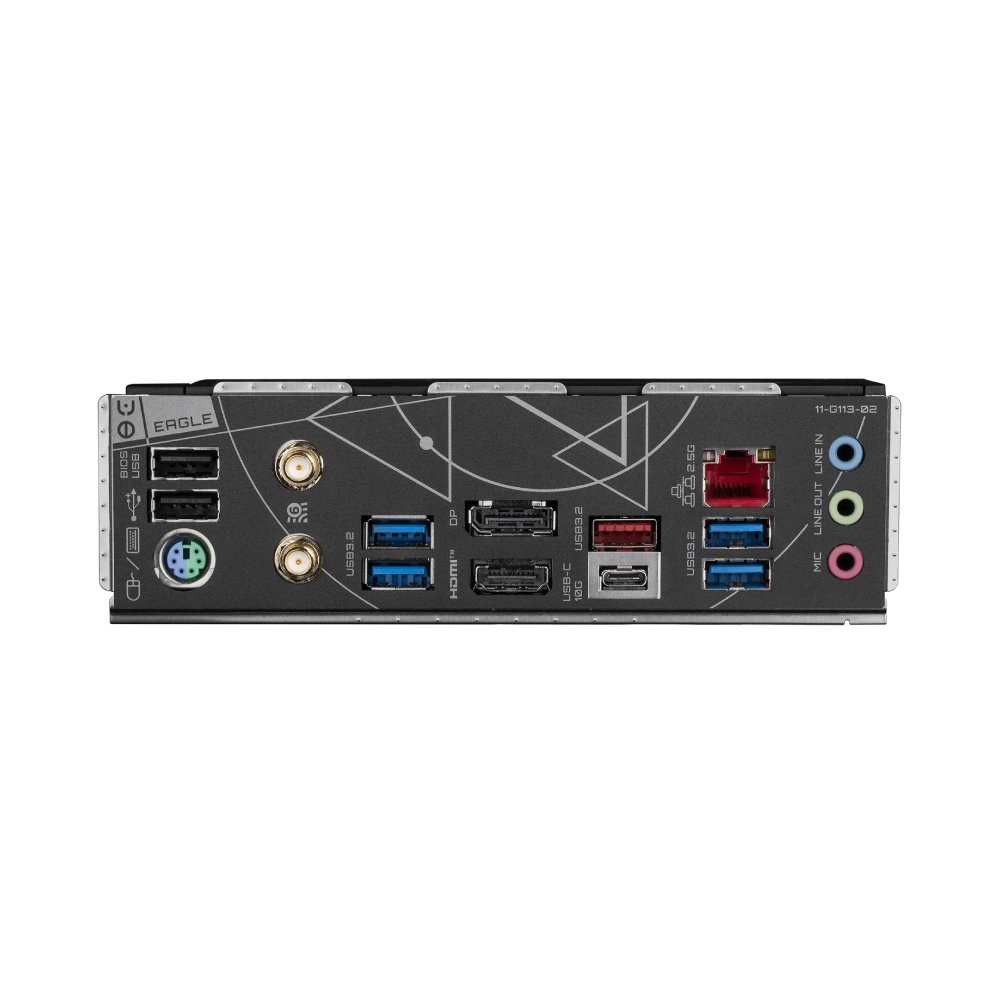

Back Panel	1 x PS/2 port 1 x USB-C (3.2 Gen 2), 1 x USB-A (3.2 Gen 2) 4 x USB 3.2 Gen 1, 2 x USB 2.0 1 x HDMI, 1 x DisplayPort 2 x SMA antenna connectors 1 x RJ-45, 3 x audio jacks
