Feature

Specification

CPU

AMD Socket AM4, support for: - AMD Ryzen™ 5000 G-Series Processors - AMD Ryzen™ 5000 Series Processors - AMD Ryzen™ 4000 G-Series Processors - AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Memory

2 x DDR4 DIMM sockets, up to 64 GB (32 GB per DIMM) Supports DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Dual channel architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Support for Extreme Memory Profile (XMP)

Onboard Graphics

Integrated Graphics Processor: - 1 x D-Sub port (max resolution 1920x1200@60 Hz) - 1 x HDMI port (max resolution 4096x2160@60 Hz)

Audio

Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel support

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Storage Interface

CPU: - 1 x M.2 connector (Socket 3, M key, type 2280, supports SATA & PCIe 3.0 x4/x2 SSDs) Chipset: - 4 x SATA 6Gb/s connectors

USB

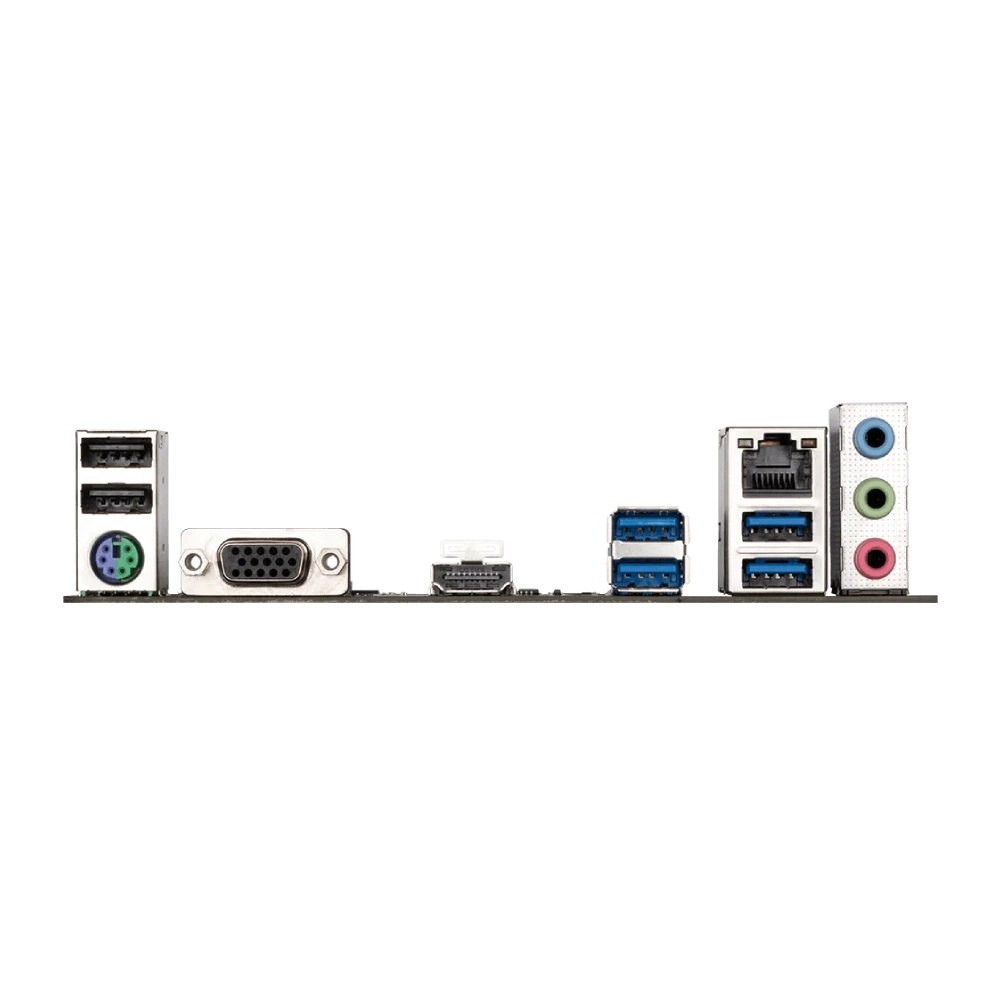

CPU: - 4 x USB 3.2 Gen 1 ports (back panel) Chipset: - 2 x USB 3.2 Gen 1 ports (internal header) - 6 x USB 2.0/1.1 ports (2 back panel, 4 internal headers)

Internal I/O Connectors

- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x M.2 Socket 3 connector - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) - 1 x speaker header - 1 x Clear CMOS jumper - 1 x chassis intrusion header

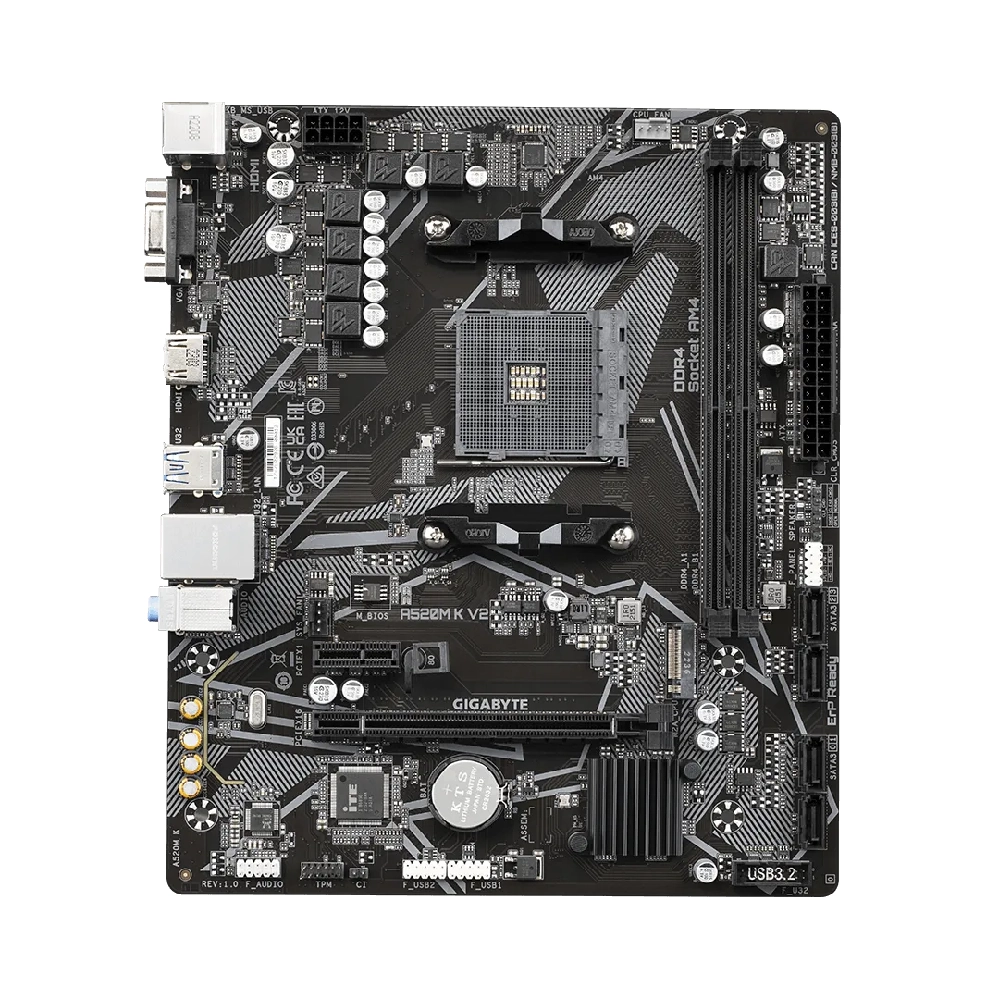

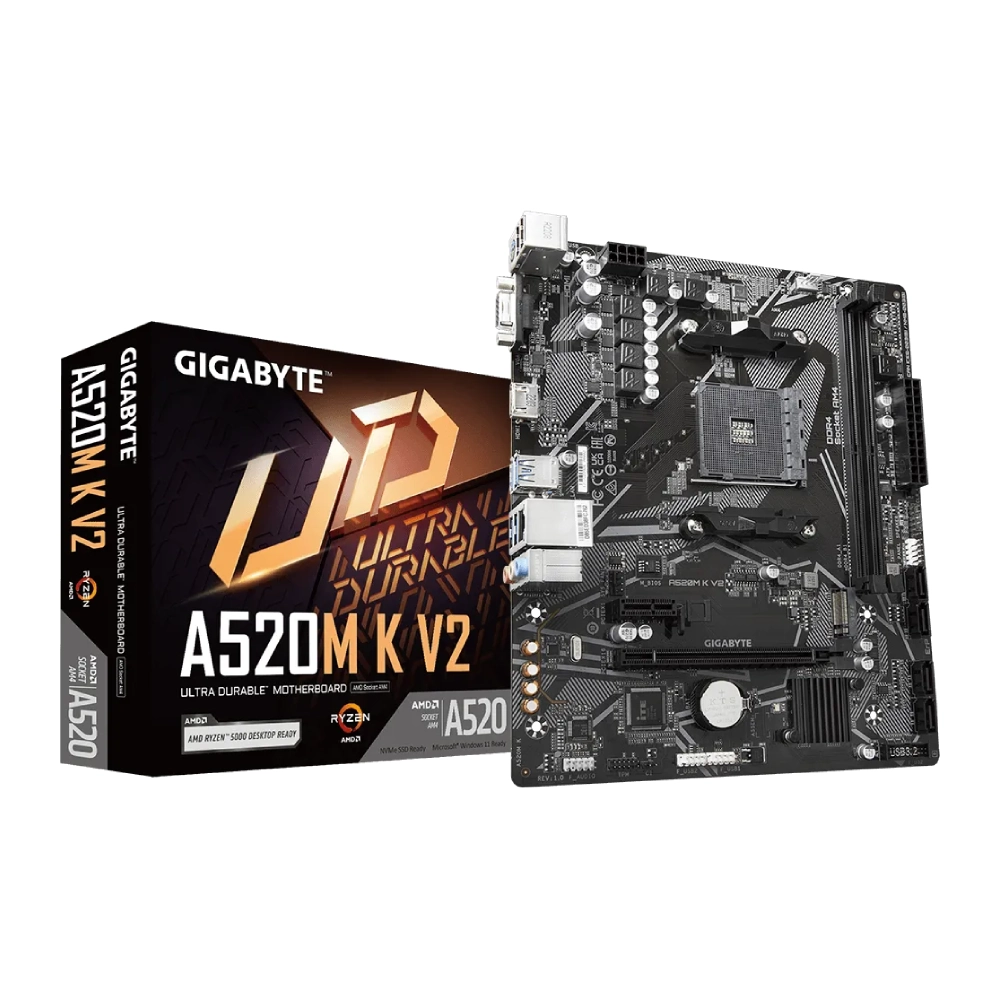

Gigabyte Motherboard For AMD A520M K V2 DDR4
