For More Information: 70738 88300

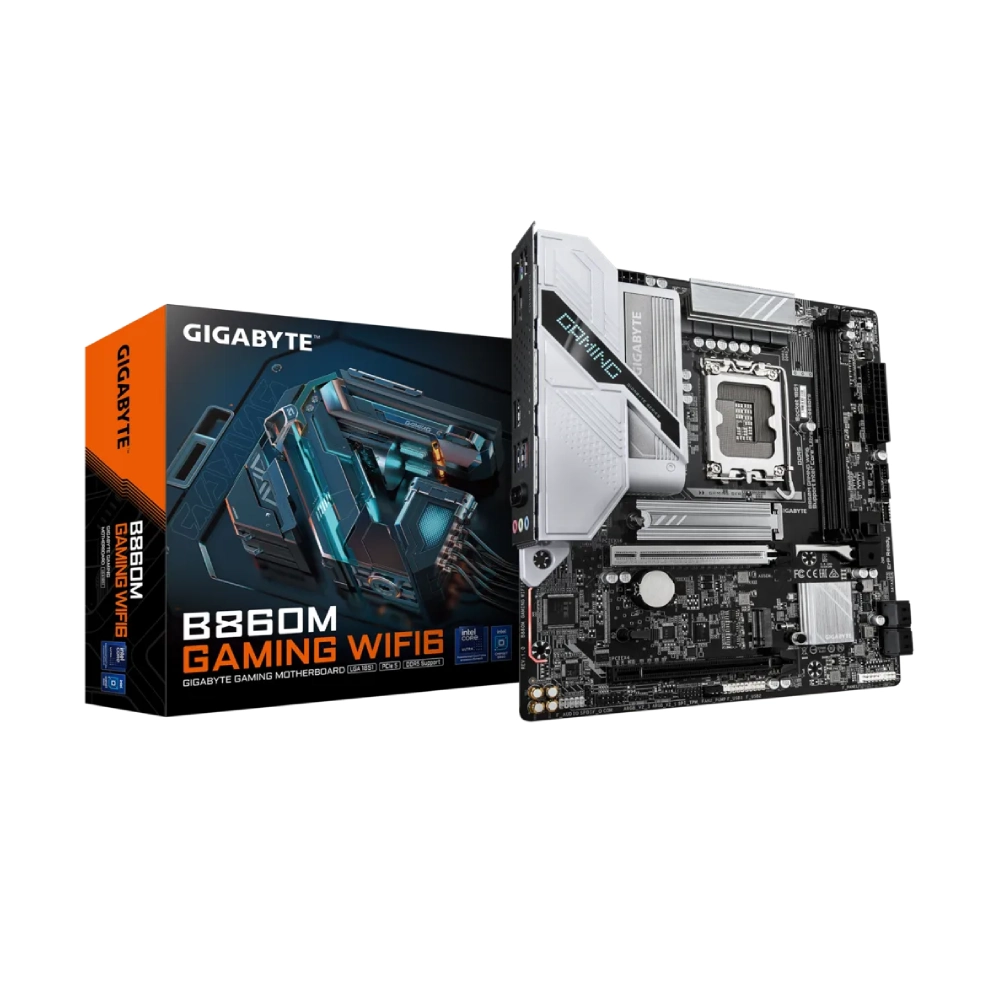

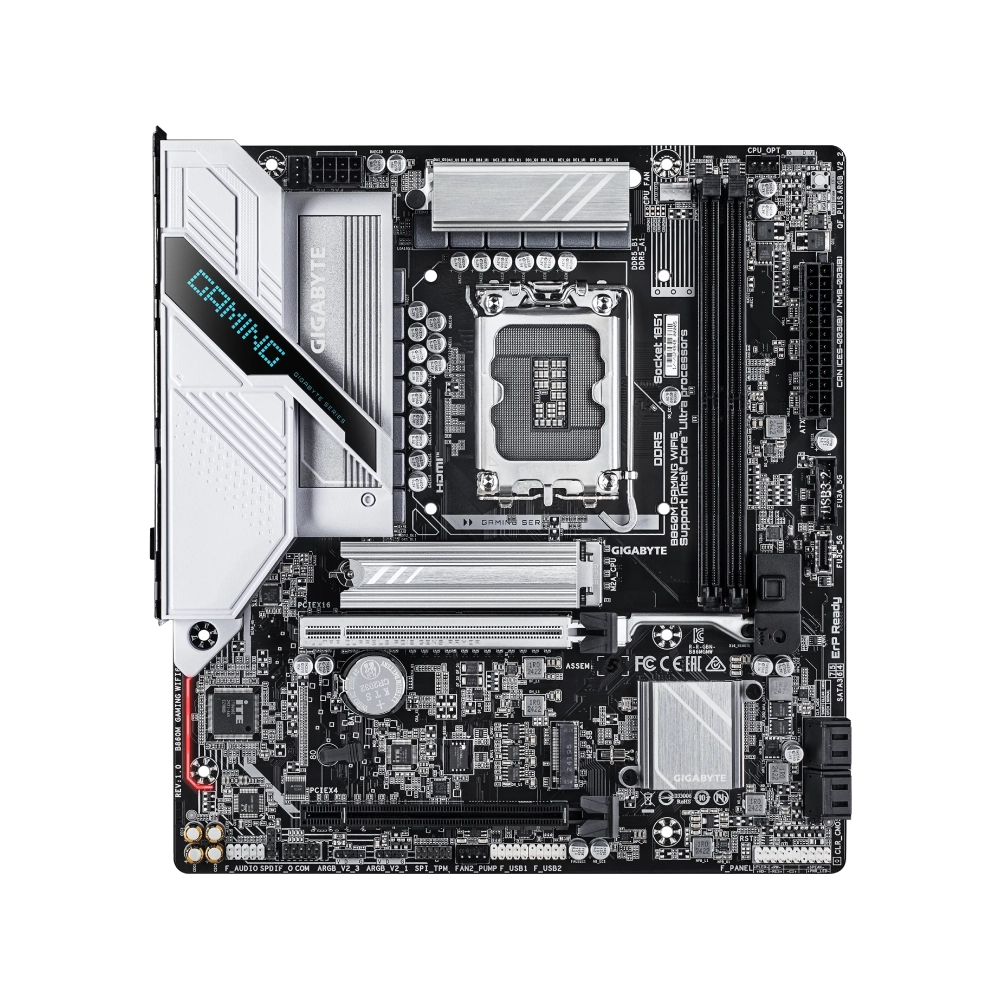

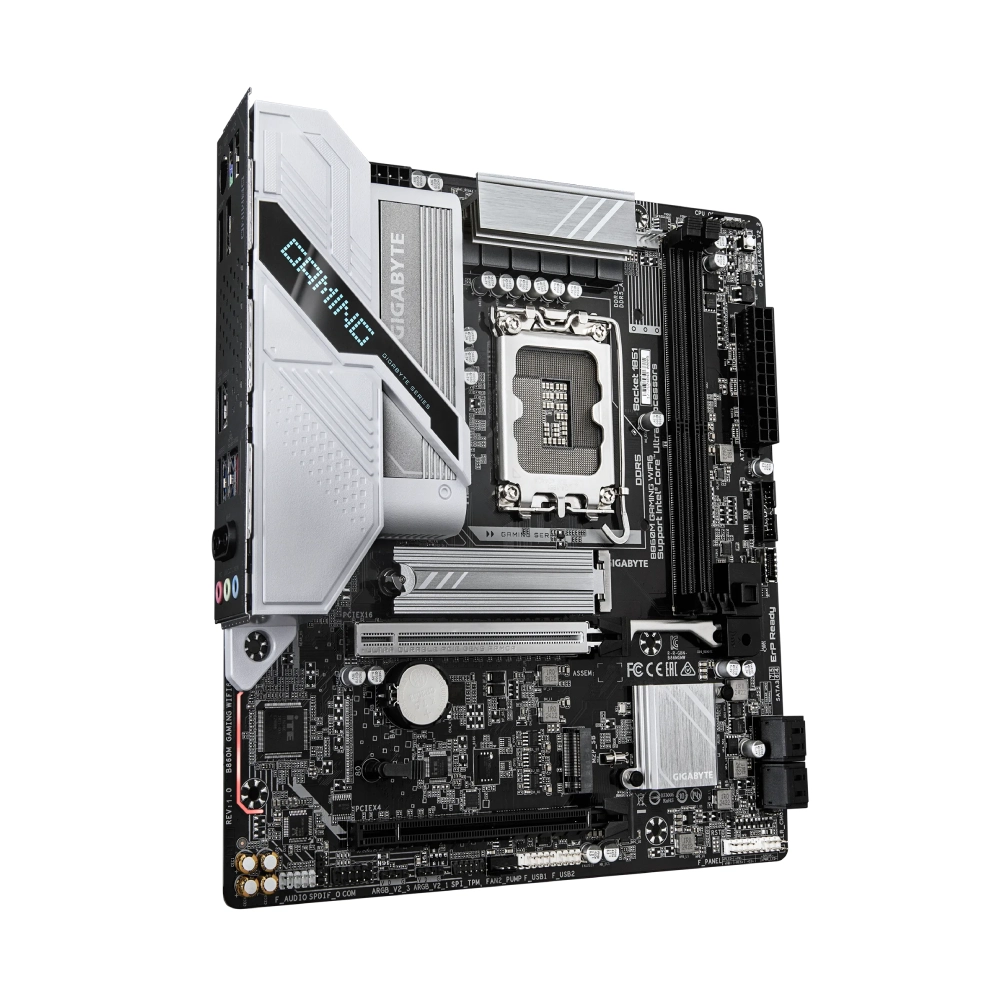

Explore Gigabyte Motherboard B860M GAMING WIFI 6 DDR5 on Mega Jaipur, ideal for Intel Ultra Processors. With stellar gaming performance, seamless WiFi connectivity, and unparalleled DDR5 support, it's the perfect choice to upgrade your system.
| Main Points | Specifications |
|---|---|
| CPU | LGA1851 socket, supports Intel® Core™ Ultra processors, L3 cache varies |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 up to 9066(O.C.), 2 DIMMs, 128GB max, ECC/Non-ECC support, Dual Channel, XMP supported |
| Graphics | Intel® HD Graphics: - 1x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) - 1x DisplayPort (3840x2160@144Hz, DP 2.1) - Triple-display support (depends on CPU) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out supported |
| LAN | Realtek® 2.5GbE LAN (2.5G/1G/100M) |
| Wi-Fi / Bluetooth | Realtek® Wi-Fi 6 RTL8851BE, Bluetooth 5.3 Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz, 11ax 80MHz |
| PCIe Slots | CPU: 1x PCIe 5.0 x16 Chipset: 1x PCIe 4.0 x4 |
| Storage | CPU: 1x M.2 PCIe 5.0 x4/x2 Chipset: 1x M.2 PCIe 4.0 x4/x2, 4x SATA 6Gb/s Supports RAID 0/1/5/10 |
| USB Ports | Rear: 3x USB 3.2 Gen1, 3x USB 2.0 Internal: 1x USB 3.2 Gen1 Type-C header, 2x USB 3.2 Gen1, 4x USB 2.0 |
| Internal Connectors | 24-pin & 8-pin power connectors, CPU/System fan headers, water cooling headers 3x ARGB Gen2, 2x M.2, 4x SATA, front panel/audio, USB Type-C, USB headers TPM header, S/PDIF header, serial header, Q-Flash Plus button, reset jumper, Clear CMOS jumper |

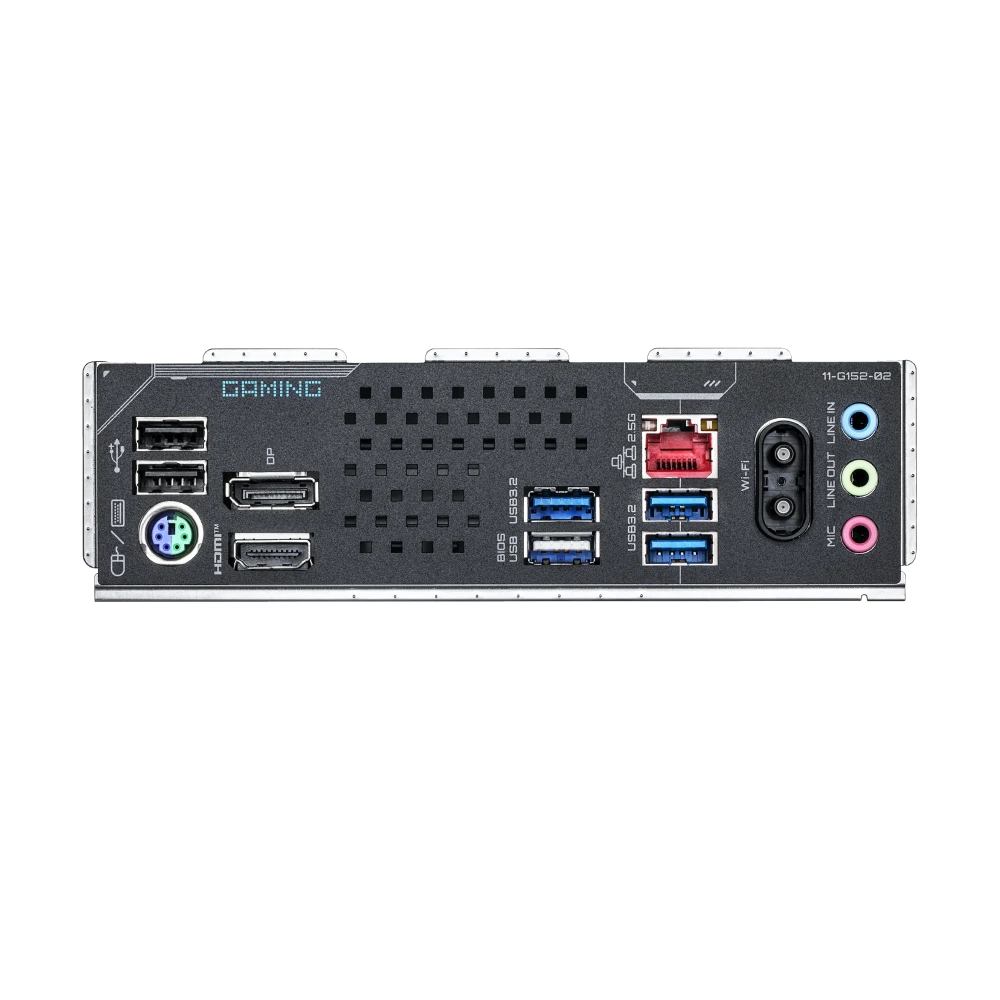

| Back Panel | 1x PS/2, 1x HDMI, 1x DP, 3x USB 3.2 Gen1, 3x USB 2.0, 2x antenna connectors, 1x RJ-45, 3x audio jacks |
