- Brand
- MSI
- Model
- PRO B860M-E
- Chipset
- Intel® B860
- CPU Support
- Intel® Core™ Ultra Processors (Series 2), LGA1851 Socket
- Memory Support
- 2 × DDR5 UDIMM Slots, Up to 128GB, Supports DDR5 9066+ MT/s (OC), Intel® XMP 3.0
- Expansion Slots
- 1 × PCIe 5.0 x16 & 1 × PCIe 4.0 x1
- Storage
- 2 × M.2 (PCIe 5.0 & PCIe 4.0) & 4 × SATA 6Gb/s
- Networking
- Realtek® 5Gbps LAN
- Audio
- Realtek® ALC897 7.1-Channel High Definition Audio

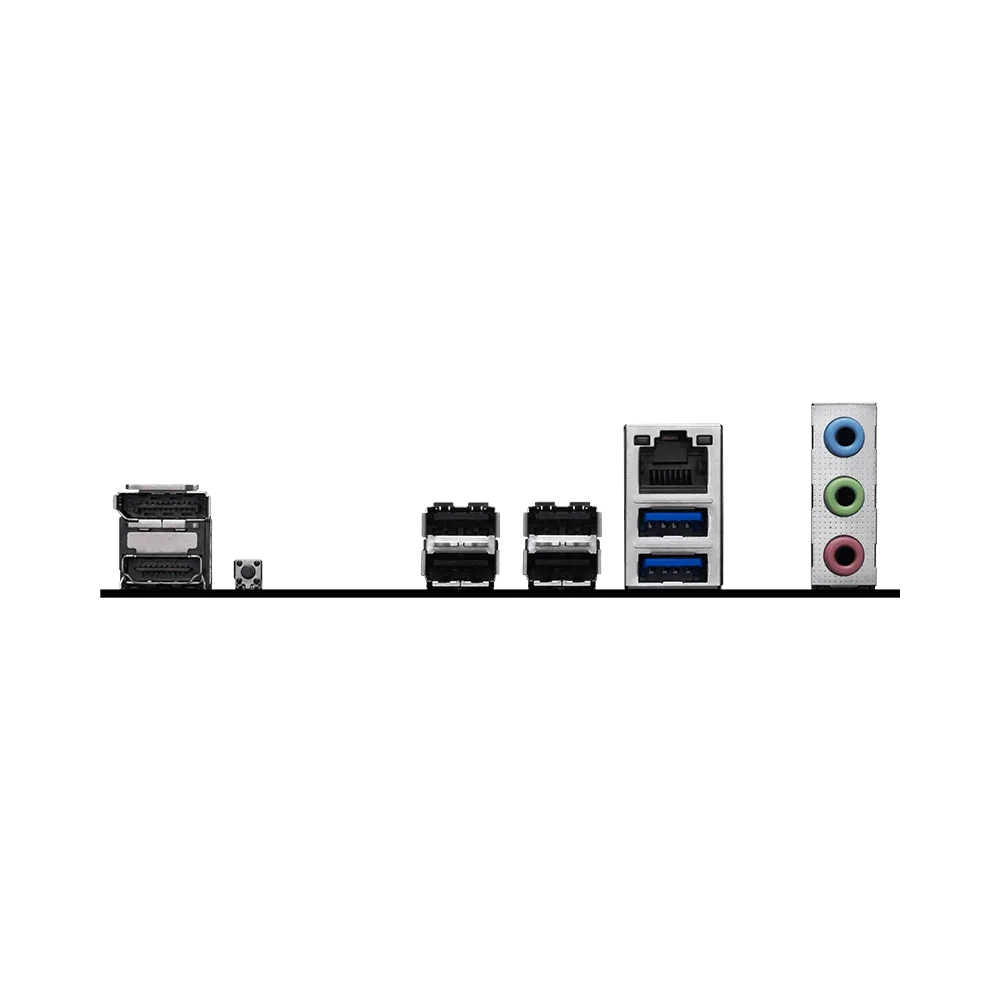

- Display Output
- HDMI 2.1 & DisplayPort 1.4 (Up to 4K@60Hz)
- USB Connectivity
- USB 10Gbps Type-C, USB 5Gbps Type-A & USB 2.0
- LED Features
- EZ Debug LED & EZ Memory Detection LED
