- Feature
- Description
- CPU Support
- AMD Socket AM4, Ryzen 5000/4000G/3000 Series
- Chipset
- AMD B550
- Memory
- 4 x DDR4 DIMM, up to 128GB, Dual Channel, XMP Support
- Graphics
- 1 x HDMI 2.1, 1 x DisplayPort 1.4, Max 5120x2880@60Hz, Shared 16GB
- Audio
- Realtek® HD Audio, 2/4/5.1/7.1 Channel
- LAN
- Realtek® GbE LAN (10/100/1000 Mbps)
- Expansion Slots
- 1 x PCIe x16 (Ryzen 5000/3000 = PCIe 4.0), 1 x PCIe x1
- Storage
- 2 x M.2 (PCIe 4.0/3.0), 4 x SATA 6Gb/s, RAID 0/1/10
- USB
- 4 x USB 3.2 Gen1 (Rear), 2 x USB 3.2 Gen1 (Header), 6 x USB 2.0
- Internal I/O
- 24-pin ATX, 8-pin ATX 12V, CPU & System Fan, TPM, Front Audio/USB

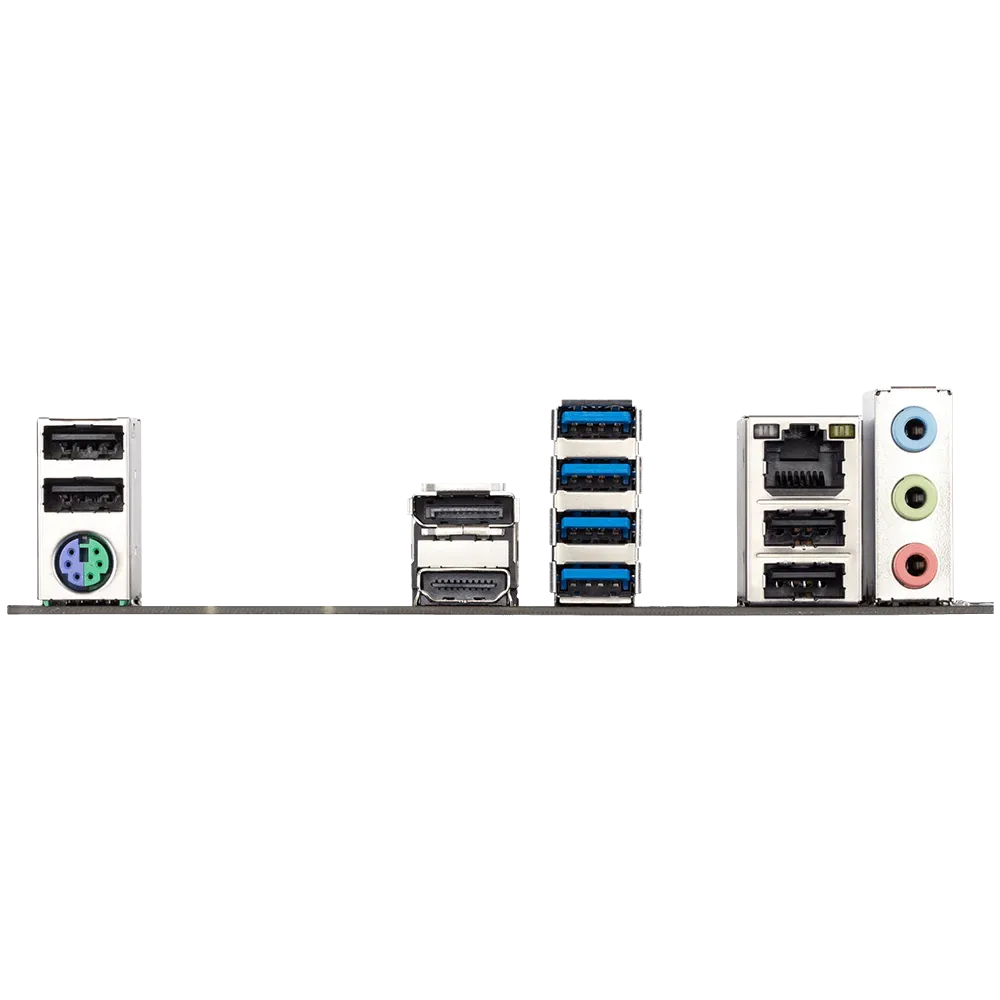

- Back Panel
- PS/2, HDMI, DP, 4 x USB 3.2, 4 x USB 2.0, RJ-45, 3 x Audio Jacks
- BIOS
- 128 Mbit Flash, AMI UEFI BIOS, Q-Flash
- Special Features
- APP Center, @BIOS, EasyTune, Smart Backup, System Info Viewer
- OS Support
- Windows 11/10 64-bit
- Form Factor
- Micro ATX, 24.4cm x 24.4cm
