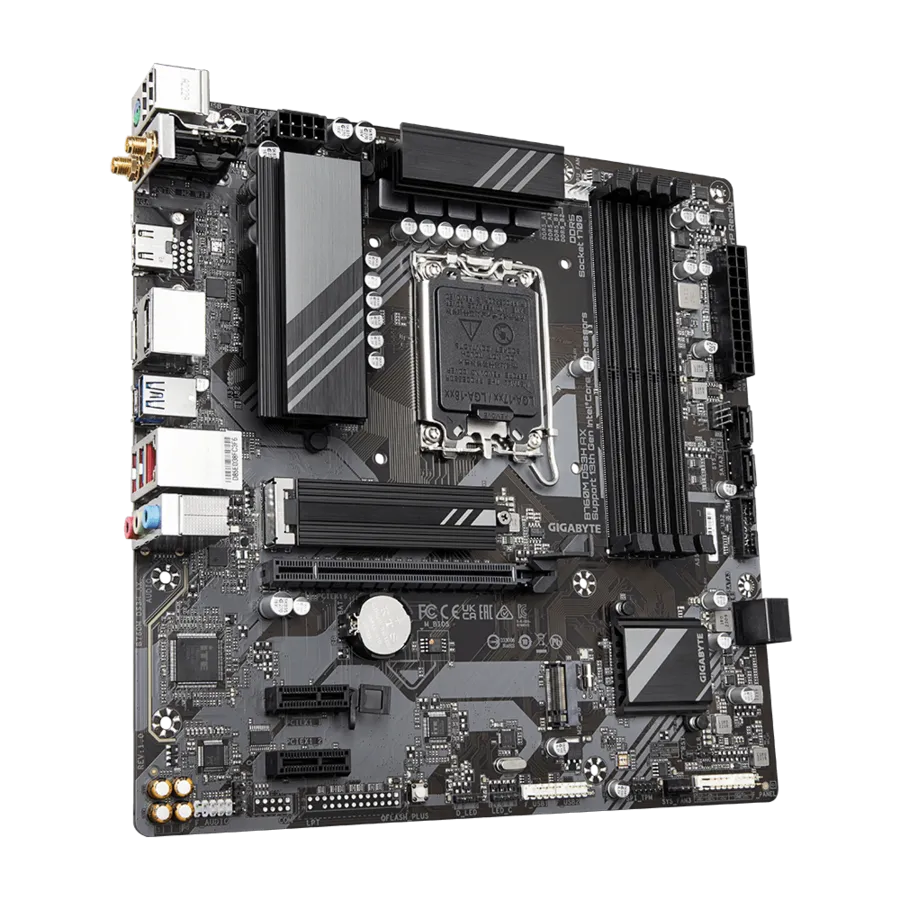

Gigabyte B760M DS3H AX DDR5 Motherboard For INTEL 12th | 13th |14th Gen

Product ID: P1938
Item CD: 07KNSHS
Model: B760M DS3H AX
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

For More Information: 70738 88300

Compatible Products

Specifications

Component: Description
CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors. L3 cache varies with CPU.
Chipset: Intel B760 Express Chipset
Memory: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) /6400(O.C.) /6200(O.C.) /6000(O.C.) /5800(O.C.) /5600(O.C.) /5400(O.C.) /5200(O.C.) /4800 /4000 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules.
Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. Support for DisplayPort 1.2 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. Support for DisplayPort 1.2 version.
Expansion Slots: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (The PCIEX16 slot can only support a graphics card or an NVMe SSD). Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1.
Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices.
USB: Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). 2 x USB 2.0/1.1 ports on the back panel. Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers.
Internal I/O Connectors: 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 3 x system fan headers. 1 x addressable LED strip header. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only). 1 x S/PDIF Out header. 1 x Q-Flash Plus button. 1 x reset jumper. 1 x Clear CMOS jumper.
Back Panel Connectors: 2 x USB 2.0/1.1 ports. 1 x PS/2 keyboard/mouse port. 2 x SMA antenna connectors (2T2R). 1 x HDMI port. 2 x DisplayPorts. 3 x USB 3.2 Gen 1 ports. 1 x USB Type-C® port, with USB 3.2 Gen 2 support. 1 x RJ-45 port. 3 x audio jacks.
I/O Controller: iTE® I/O Controller Chip
H/W Monitoring: Voltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control.
BIOS: 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
