- Specification
- Intel B760
- CPU
- LGA1700, 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron®
- Chipset
- Intel® B760 Express
- Memory
- DDR5 up to 7600(O.C.), 4 DIMMs, 256GB max
- Graphics
- D-Sub, HDMI 2.1, 2 x DisplayPort, Quad Display
- Audio
- Realtek® CODEC, 7.1-Channel, S/PDIF Out
- LAN
- Realtek® 2.5GbE
- PCIe Slots
- 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
- Storage
- 2 x M.2 PCIe 4.0, 4 x SATA, RAID 0/1/5/10
- USB
- 1 x USB-C Gen 2, 3 x USB 3.2, 6 x USB 2.0
- Internal Connectors
- 24-pin, 8-pin, fan & RGB headers, TPM, Q-Flash

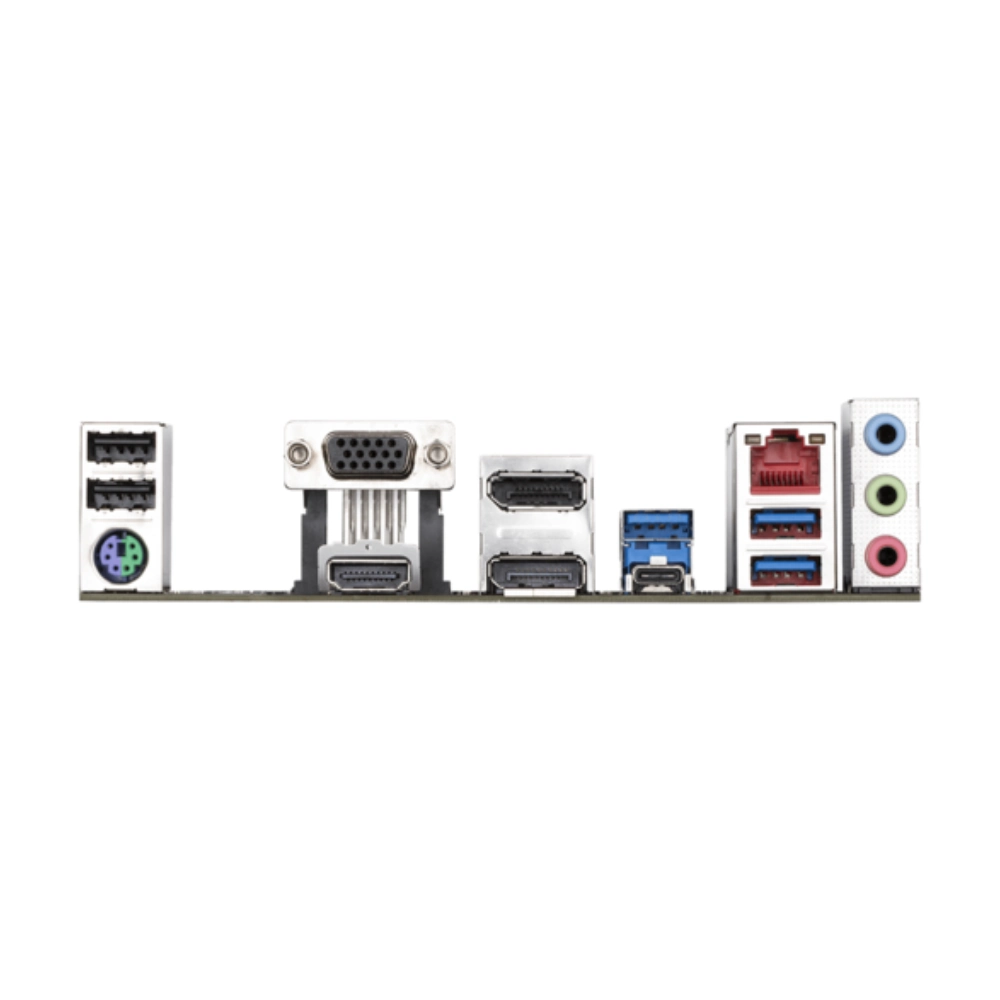

- Back Panel
- D-Sub, HDMI, 2 x DP, USB-C, 3 x USB 3.2, LAN, Audio
