- Detection Method
- Opening Contact
- Detection Gap
- 43mm Max
- Feature
- Digital Processing
- Tamper Protection
- Front; Rear
- Environment Temperature Indicator
- Support
- Signal Strength Indicator
- Support
- Alarm Input
- Normally Closed; Normally Open; Impulse Count
- Power Switch
- Power Up Enrolling
- LED Indicator
- Blue (Alarm)
- Transmission Technology
- Tri-X Wireless
- Transmission Method
- Two-Way RF Wireless
- Transmission Frequency
- 433 MHz
- Transmission Security
- AES-128 Encryption
- Transmission Range (Free Space)
- 1.2 Km
- Frequency Hopping
- Support
- Enrolling Method
- Power up; Remote ID; QR Code
- Standard Battery Life
- Up to 5 years (standby time)
- Power Supply
- Battery Powered
- Battery Type
- CR123A x 1
- Typical Voltage
- 3V
- Operation Temperature
- -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature
- -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity
- 10% to 90%
- Dimension (WxHxD)
- 22.5mm × 103mm × 23.2mm / 13mm × 34.4mm × 11.4mm
- Weight
- 59g
- Application Scenario
- Indoor

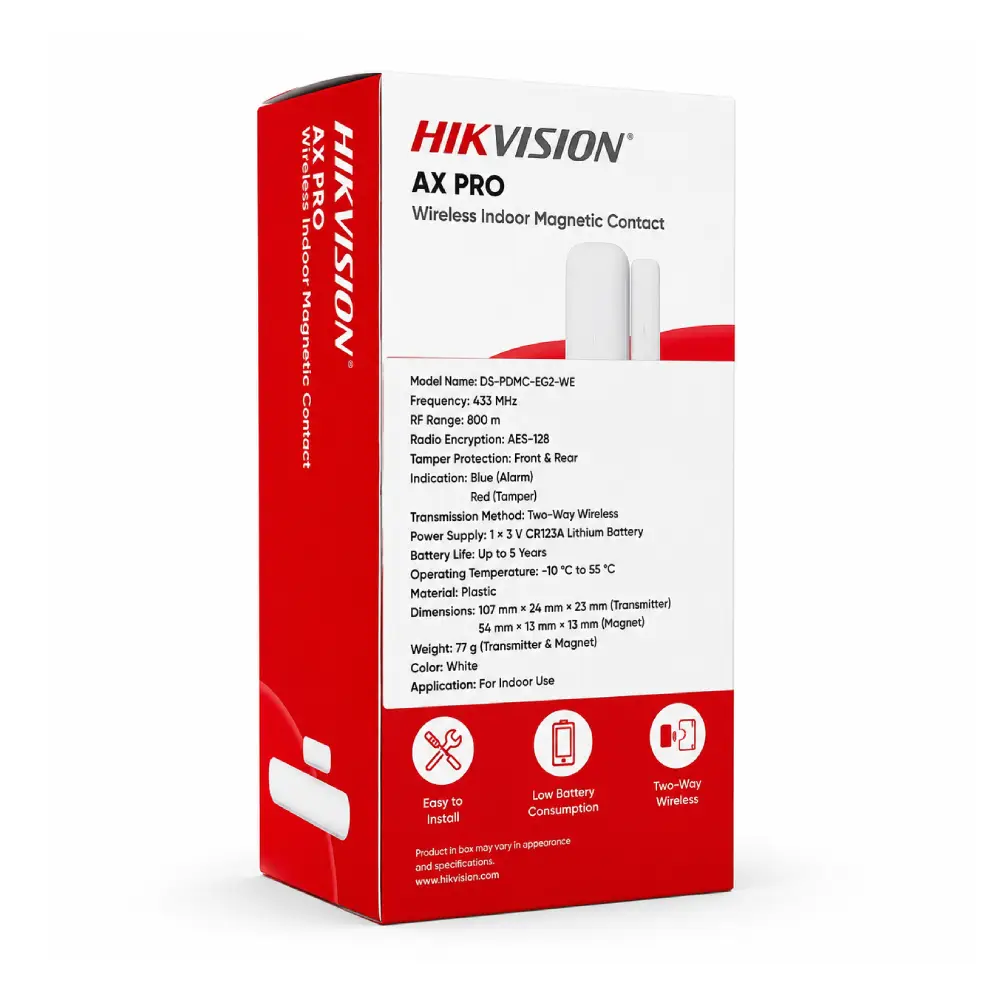

/95b13787-b30f-427d-8043-6eea4ad834c1.webp)
