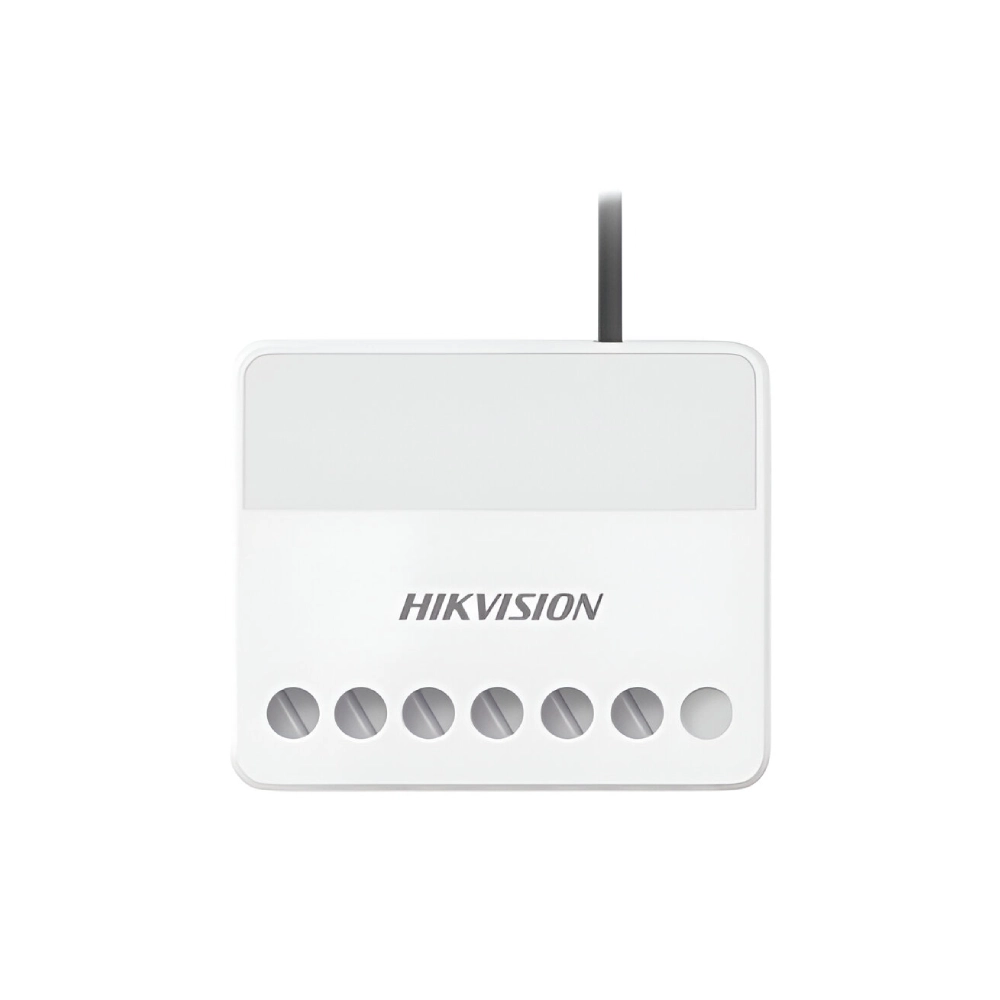

Hikvision DS-PM1-O1L-WB Relay Module (Wall Switch)

Hikvision DS-PM1-O1L-WB Relay Module (Wall Switch)
Hikvision DS-PM1-O1L-WB Relay Module (Wall Switch)
  • Product ID: P5559
  • Item CD: LRTYE
  • Model: DS-PM1-O1L-WB
  • Warranty: 2 Years From Hikvision Service Center
  • Product URL: View Product
₹2,030
In Stock
Ex Tax: ₹2,030
  • DATASHEET :
CategoryFeatureSpecification
Software FeaturesScenario SettingBy alarm, by operation, by fault, by schedule, by manual
Learning Button1, for register
Hardware FeaturesSerial Port1, for debug
Electrical CharacteristicsPower SupplyDC 7V to 24V
Operation Humidity10% to 90%
Operation Temperature-10°C to 55°C
Wireless TransmissionRF Frequency433 MHz
RF MethodTwo-way communication
RF Modulation2GFSK
RF Distance800 m
Wireless SecurityAES-128
DisplayLEDs Status3, register/signal (green/red), power (green), relay status (blue)
Alarm Input1 for tamper, NO/NC
GeneralInstallation MethodWall-Mounting
Dimension (WxHxD)38 mm × 25 mm × 18 mm
Shell MaterialPlastic
ColorWhite
Weight28.5 g
Device ManagementRelay Output1, NO/NC (0 to 36V DC, Max 5A)
