{"@context":"https://schema.org","@type":"Product","name":"Hikvision PWA96KITWB Control Panel Alarm AX Pro Kit Wireless","image":["https://api.megajaipur.com/uploads/products/security/biometric-vdp-intrusion-alarm-locks/VDP/Hikvision/DS-PWA64-Kit/hikvision-pwa96kitwb-control-panel-ax-pro-kit-wireless.webp"],"description":"\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Software Features
Tag	48
Area	32
Zones	96 (up to 48 PIRCAMs)
Onboard video clips	4
Installer	1
User	46
Admin	1
Voice Prompt	Supported
Loudspeaker built in	Supported
Tag reader built in	Supported
Memory Log stored	5000
Programming tools	Hik-Connect/Hik-ProConnect/Web Portal/IVMS4200/Convergence Cloud
Firmware upgrade	APP/Web Portal
Arm modes	Away/Stay
Automatic Arm/Disarm Timers	Supported
Forced Arming with Open Zones	Supported
Diagnostics via the APP or Web	Supported
ARC protocol	SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)	Supported
Video verification and remote control	Supported
User APP for operating	Supported
Installer APP for programming	Supported
Web server for maintenance (offline configuration)	Supported
Hardware Features
RS232 output	Supported
SIM slot	Dual
RF transmission	Two-way Wireless Communication Support
RF Frequency	433Mhz
Wireless Security	Frequency Hopping 128 AES Encryption
3/4G on board	Supported
Electrical Characteristics
Power supply	Built-in power supply
Battery type	Built-in on board Battery Li
Battery life span	Up to 12 hours at normal temperature
Wired network	Supported
Wi-Fi Standard	Supported
Display
LEDs Status	Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
Operation temperature	-10 °C to +55 °C
Shell material	Plastic
Dimension (WxHxD)	170.0 mm (6.7\") x 170.0 mm (6.7\") x 38.6 mm (1.5\")
Weight	557.5 g (19.7 oz)
Color	White
Device Management
Keyfob	48
Wireless sounder	6 (3 internal + 3 external)
Keypad	8 (Including Tag reader)
Wireless Repeater	4
Multi Transmitter	6
PIR Cam	Supported

","sku":"0D9L340","brand":{"@type":"Brand","name":"HIKVISION"},"offers":{"@type":"Offer","url":"https://megajaipur.com/security/intrusion-and-alarm/hikvision-pwa96kitwb-control-panel-alarm-ax-pro-kit-wireless-p3280","priceCurrency":"INR","price":17050,"availability":"https://schema.org/InStock","itemCondition":"https://schema.org/NewCondition"}}

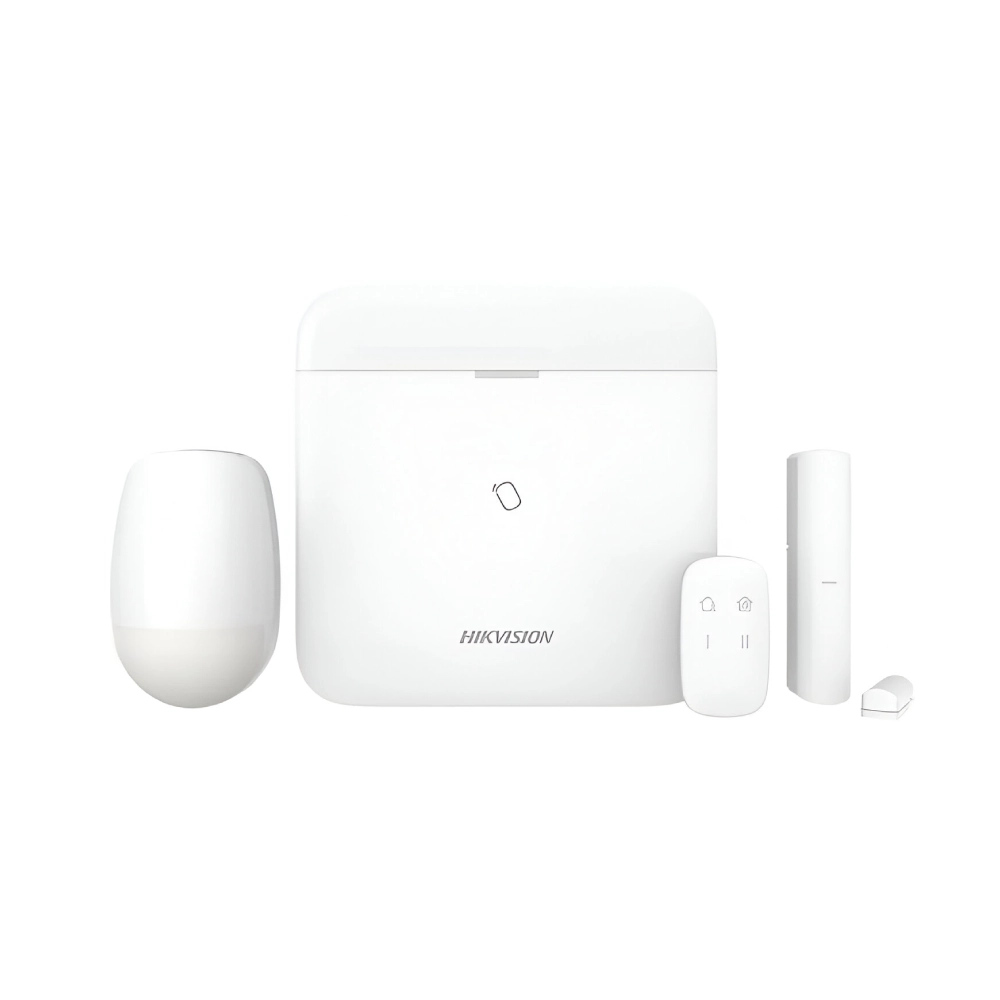

Hikvision PWA96KITWB Control Panel Alarm AX Pro Kit Wireless
