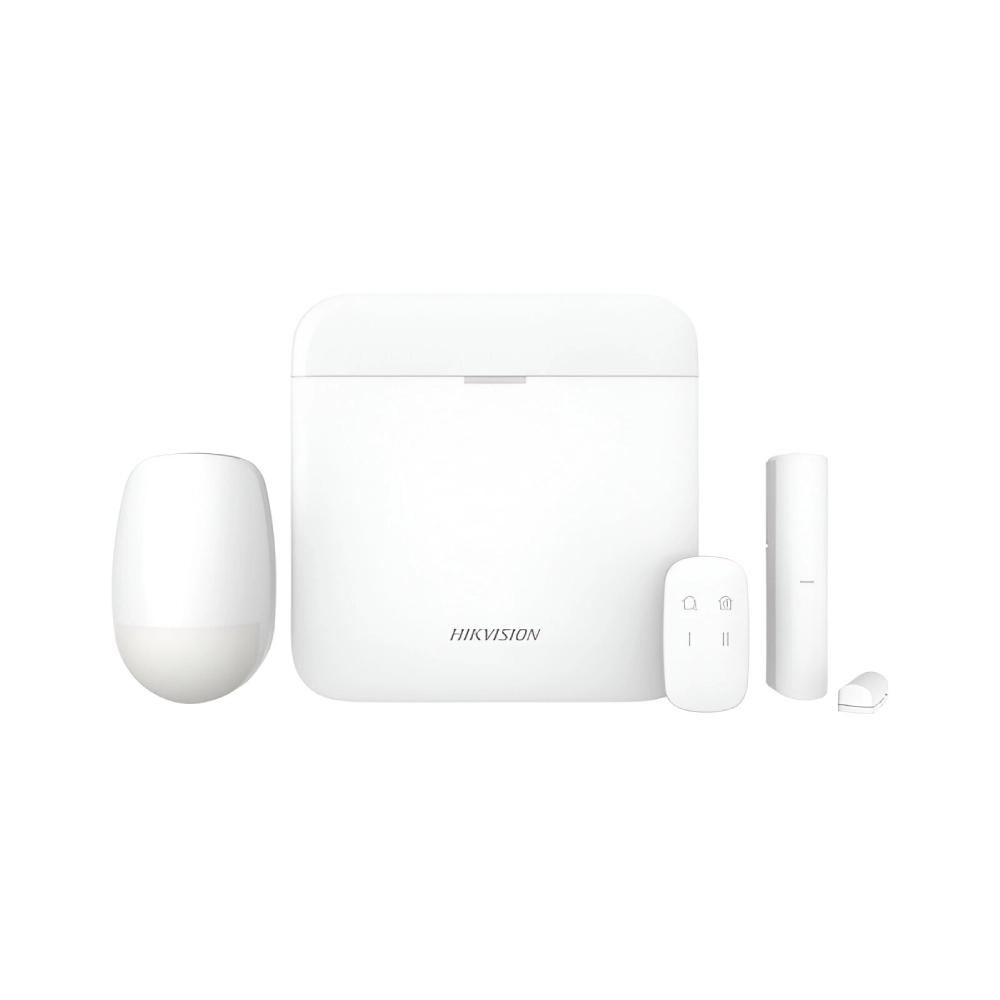

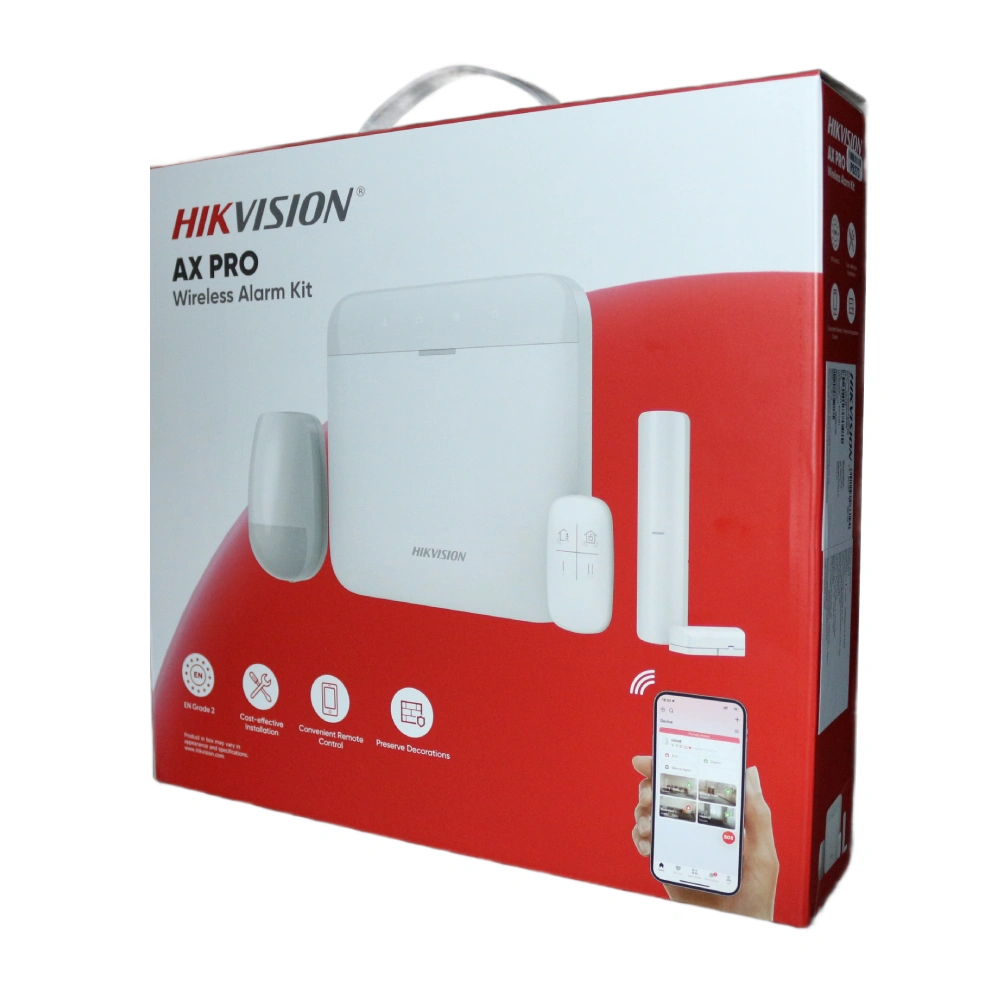

Hikvision Control Panel AX Pro Wireless Alarm Kit (without Power Cord) DS-PWA64-Kit-WB

Name: Hikvision Control Panel AX Pro Wireless Alarm Kit (without Power Cord) DS-PWA64-Kit-WB
Brand: HIKVISION
SKU: 0YWJSOW
Price: 13632 INR
Availability: InStock

Product IDP8273

Item CD0YWJSOW

ModelDS-PWA64-Kit-WB

Warranty Period2 Years from Hikvision Service Center

Service Center ListView Product URLView Product DATASHEETClick here

₹13,632

In Stock

Tag	32
Area	16
Zones	64 (up to 48 PIRCAMs)
Installer	1
User	30
Admin	1
Voice Prompt	Supported
Loudspeaker Built-in	Supported
Memory Log Stored	5000
Programming Tools	Hik-Connect, Hik-Pro Connect, Web Portal, IVMS4200, Convergence Cloud
Firmware Upgrade	APP/Web Portal
Arm Modes	Away/Stay
Automatic Arm/Disarm Timers	Supported
Forced Arming with Open Zones	Supported
Diagnostics via the APP or Web	Supported
ARC Protocol	SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)	Supported
Supports Video Verification and Remote Control	Supported
User APP for Operating	Supported
Installer APP for Programming	Supported
Web Server for Maintenance (Offline Configuration)	Supported
RS232 Output	Supported
SIM Slot	Single
RF Transmission	433 MHz
Wireless Security	Frequency Hopping 128 AES Encryption
GPRS on Board	Supported
Power Supply	Built-in Power Supply
Battery Type	Built-in Onboard Battery Li
Battery Life Span	Up to 12 hours at normal temperature (Battery life decreases at low temperatures)
Wireless Transmission	Wired Network Supported
Wi-Fi Standard	Supported
Display	LEDs Status (Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power)
Operation Temperature	-10°C to +55°C
Shell Material	Plastic
Dimensions (WxHxD)	170.0 mm x 170.0 mm x 38.6 mm
Weight	557.5 g (19.7 oz)
Color	White
Device Management	Keyfob: 32, Wireless Sounder: 4 (2 internal + 2 external), Keypad: 8 (Including Tag Reader), Wireless Repeater: 2, Multi Transmitter: 4, PIR Cam: Supported
