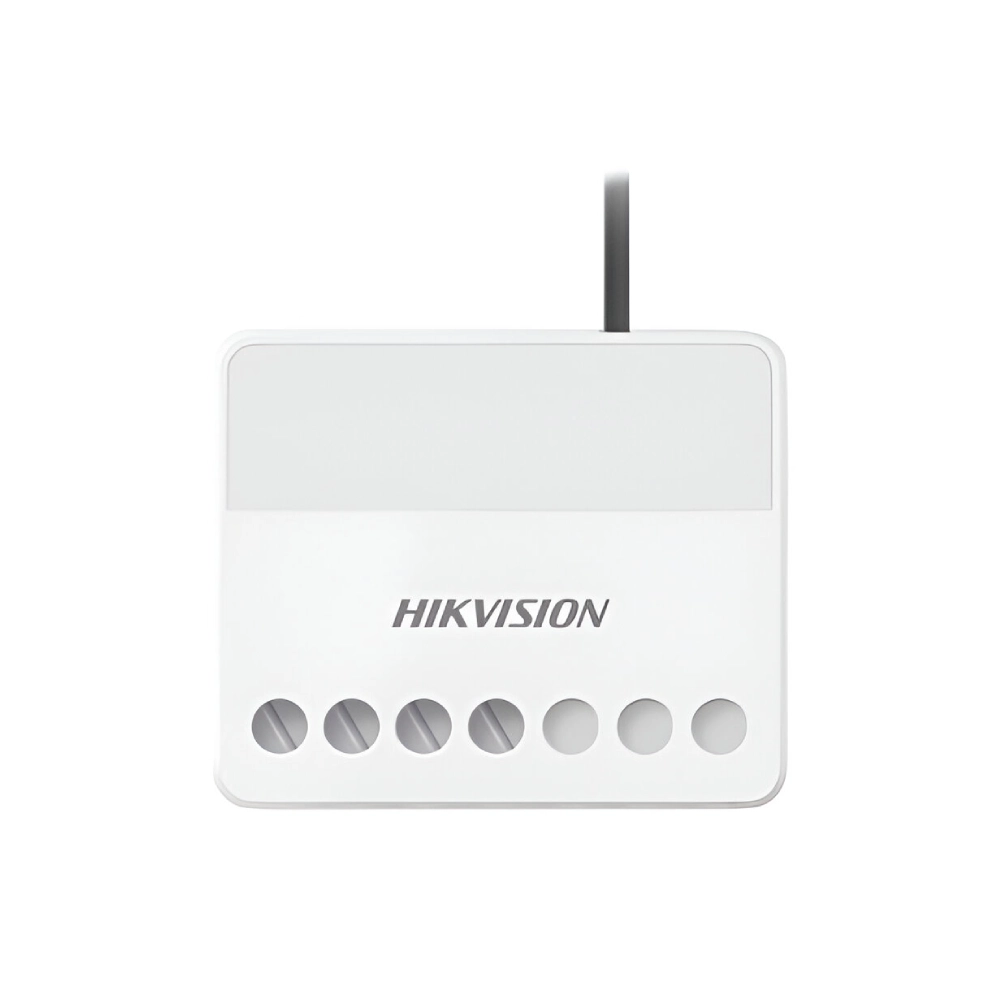

Hikvision DS-PM1-O1H-WB Wall Switch Relay Module
- Product ID: P980
- Item CD: BTRWQ
- Model: DS-PM1-O1H-WB
- Warranty: 2 Years From HIKVISION Service Center
- Product URL: View Product
₹2,386
In StockEx Tax: ₹2,386

| Category | Feature | Specification |
|---|---|---|
| Software Features | Scenario Setting | By Alarm, By Operation, By Fault, By Schedule, By Manual |
| Learning Button | 1, For register | |
| Hardware Features | Serial Port | 1, for debug |
| Electrical Characteristics | Power Supply | AC 100v – 240v, 50/60 HZ |
| Operation Humidity | 10%~90% | |
| Operation Temperature | ﹣10℃~+55℃ | |
| Wireless Transmission | RF Frequency | 433MHz |
| RF Method | Two-way communication | |
| RF Modulation | 2GFSK | |
| RF Distance | 800m | |
| Wireless Security | AES-128 | |
| Display | LEDs Status | 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
| Relay Output | 1, NO/NC (AC 100~240v, Max 13A) | |
| General | Installation Method | Wall Mounting or Inside 86 box |
| Dimension (WxHxD) | 38x25x18mm | |
| Shell Material | Plastic | |
| Color | White | |
| Weight | 31.5g |
