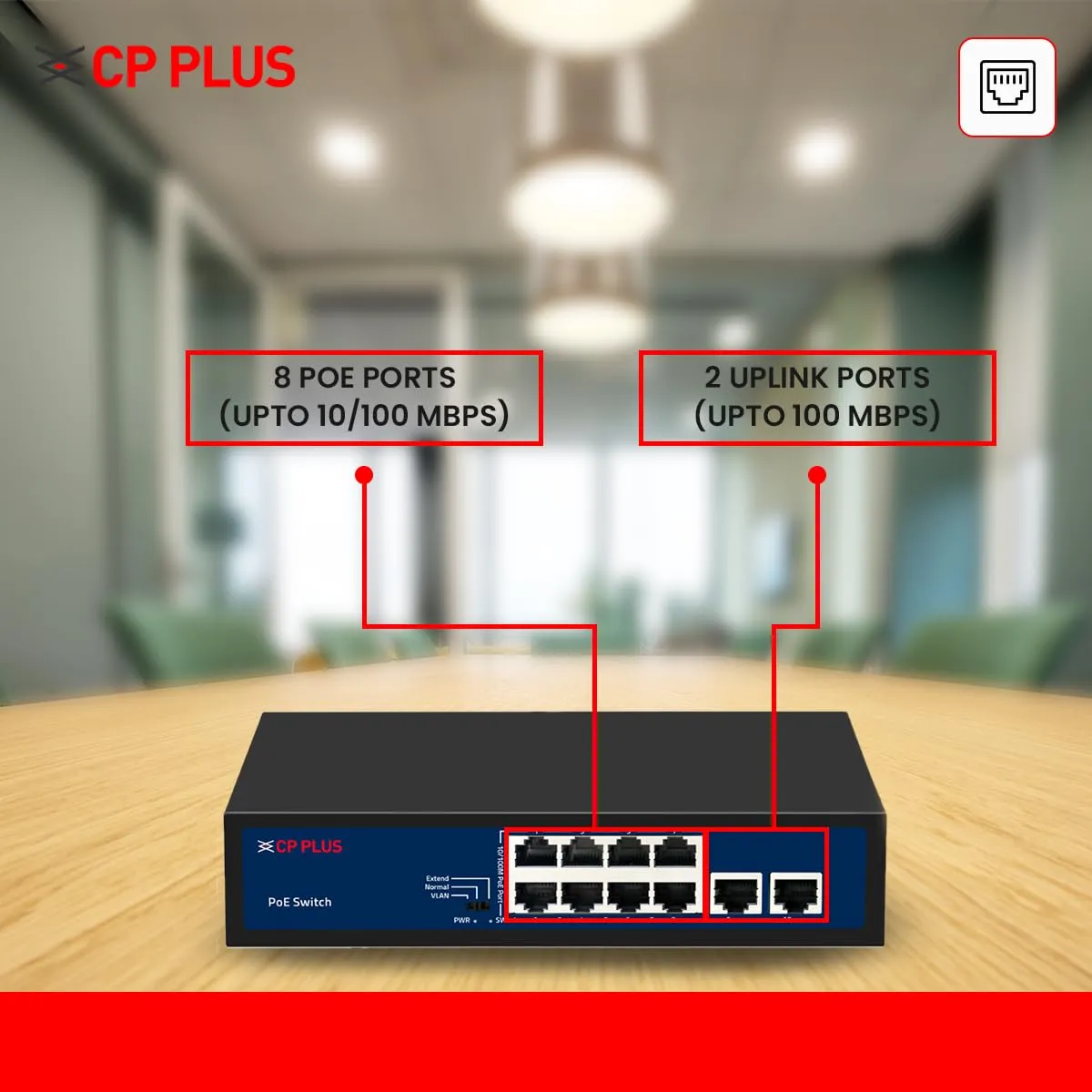

- Network Port
- 8, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
- Uplink Ports
- 2, 10/100Mbps; Transmission Distance: Default: 0-100m
- Switch Capacity
- 2Gbps (non-blocking)
- Forwarding Rates
- 0.1488 Mbps/port
- Poe Standard
- IEEE802.3/802.3u/802.3x
- Poe Power Supply
- 1/2(+), 3/6(-)

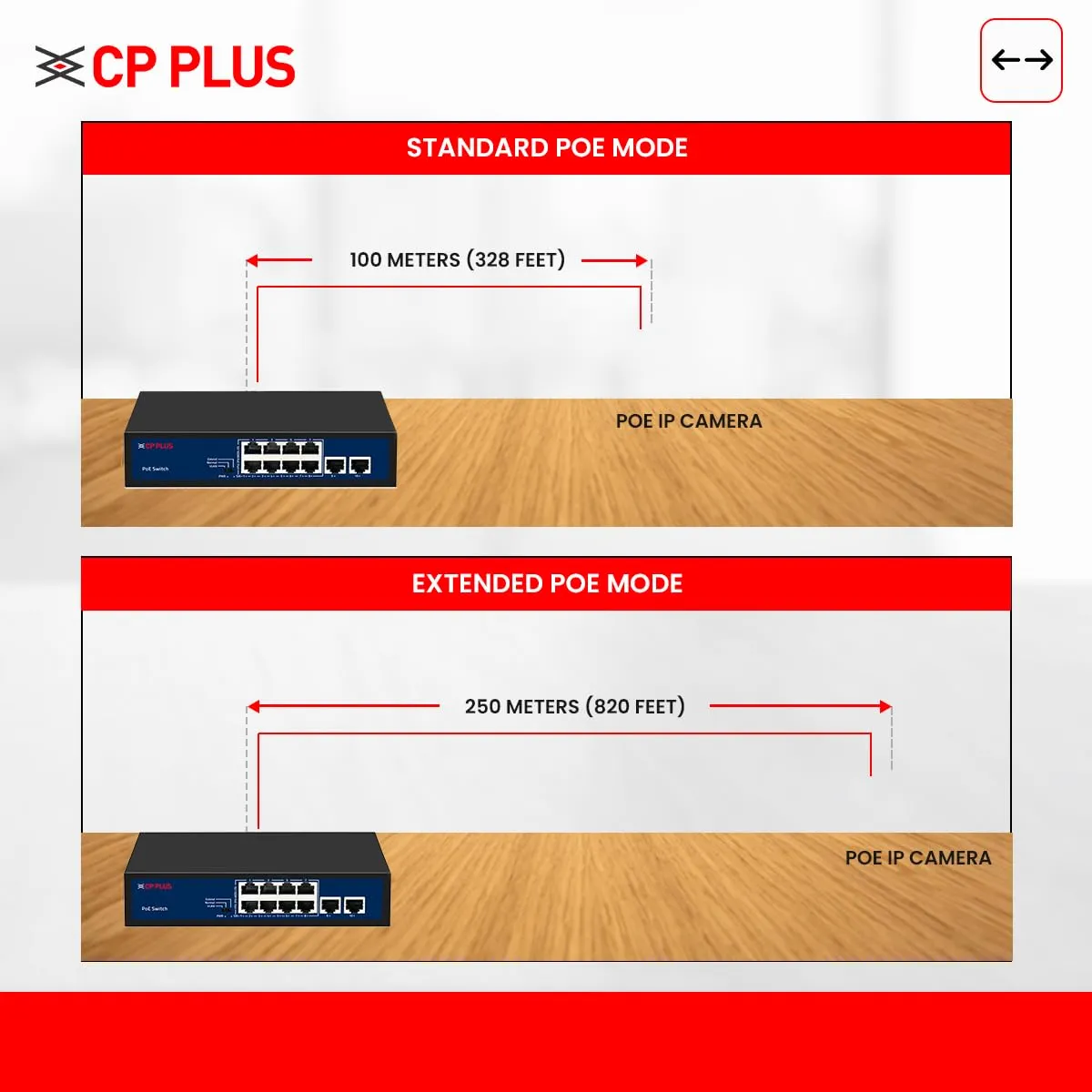

- Transmission Distance
- 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
- MAC Address List
- 2K
- Lightning Protection
- Support

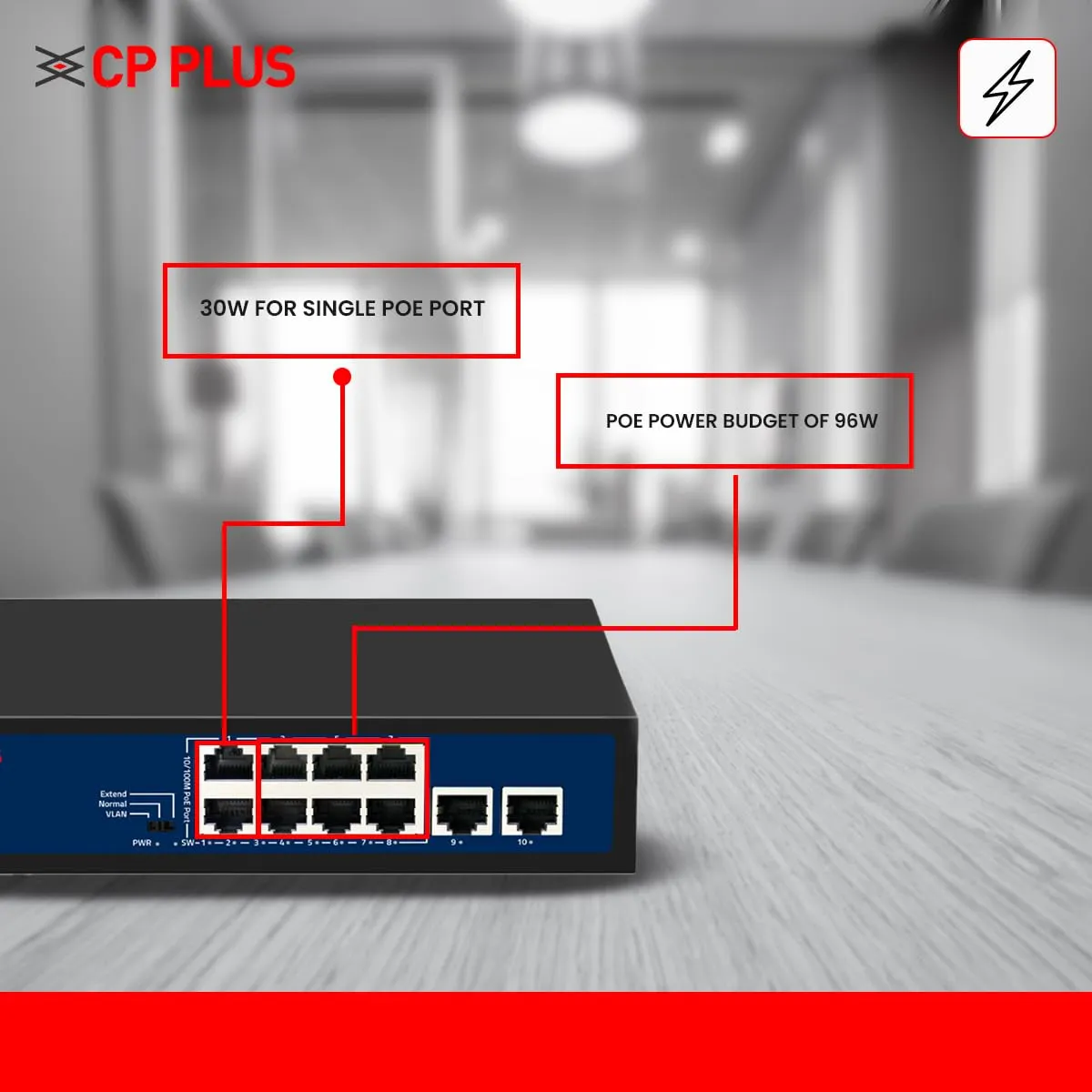

- Poe Power Budget
- 96W
- ESD Protection
- Air discharge: 8KV; Contact discharge: 6KV
- LED Light
- Light on: Powering; Light off: No Power
- Power Source
- Built-in Power Supply, Input: 100-240V AC, 50/60Hz
- Power Light
- Green light off: Normal/Default mode; Green light on: VLAN mode; Green light flash: Extend mode
- Working Temperature
- -20°C ~50°C
- Humidity
- 10% - 95%, non-condensing
- Storage Temperature
- -45°C ~85°C
- Dimension
- 200mm x 118mm x 44mm
