- Brand
- PRAMA
- Model
- PT-SW3U10P-E
- Product Type

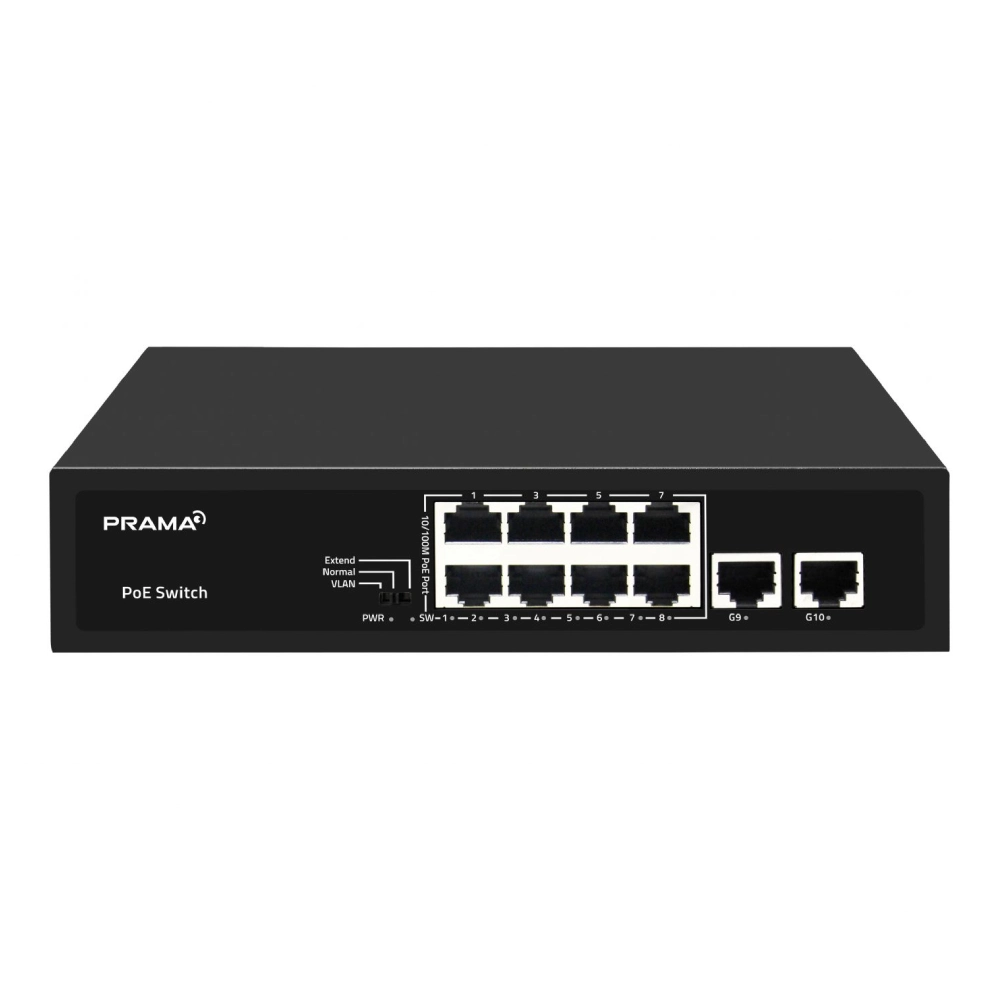

- 10-Port PoE Switch (8 FE PoE + 2 Gigabit Uplink)
- Ports
- 8 × 10/100Mbps PoE Ports, 2 × 10/100/1000Mbps RJ45 Uplink Ports
- PoE Standard
- IEEE 802.3af / IEEE 802.3at, Up to 30W per PoE Port
- Switching Capacity
- 5.6Gbps
- Packet Forwarding Rate
- 4.166Mpps
- Transmission Distance
- Up to 100m (Normal Mode), Up to 250m (Extend Mode @ 10Mbps)
- Operating Modes
- Normal Mode, VLAN Isolation Mode & Extend Mode with PoE Watchdog
- Protection
- 4KV Surge Protection, ESD Protection (Air 8KV / Contact 6KV)
- Power Supply
- AC 100–240V, 50/60Hz, 96W Built-in Power Supply
- Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Auto MDI/MDIX, Store-and-Forward Switching
- Applications
- IP Cameras, CCTV Surveillance, Wireless Access Points, VoIP Phones & Enterprise Network Deployments
