- Brand & Model

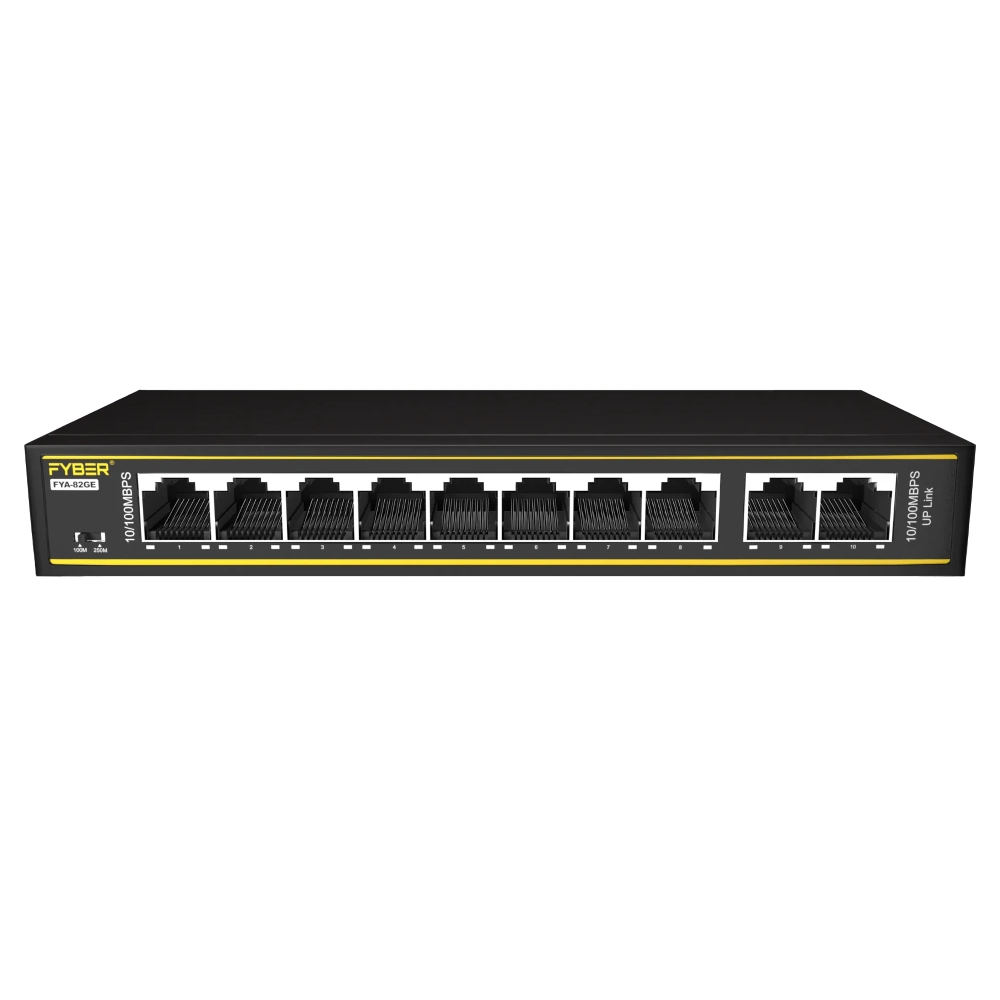

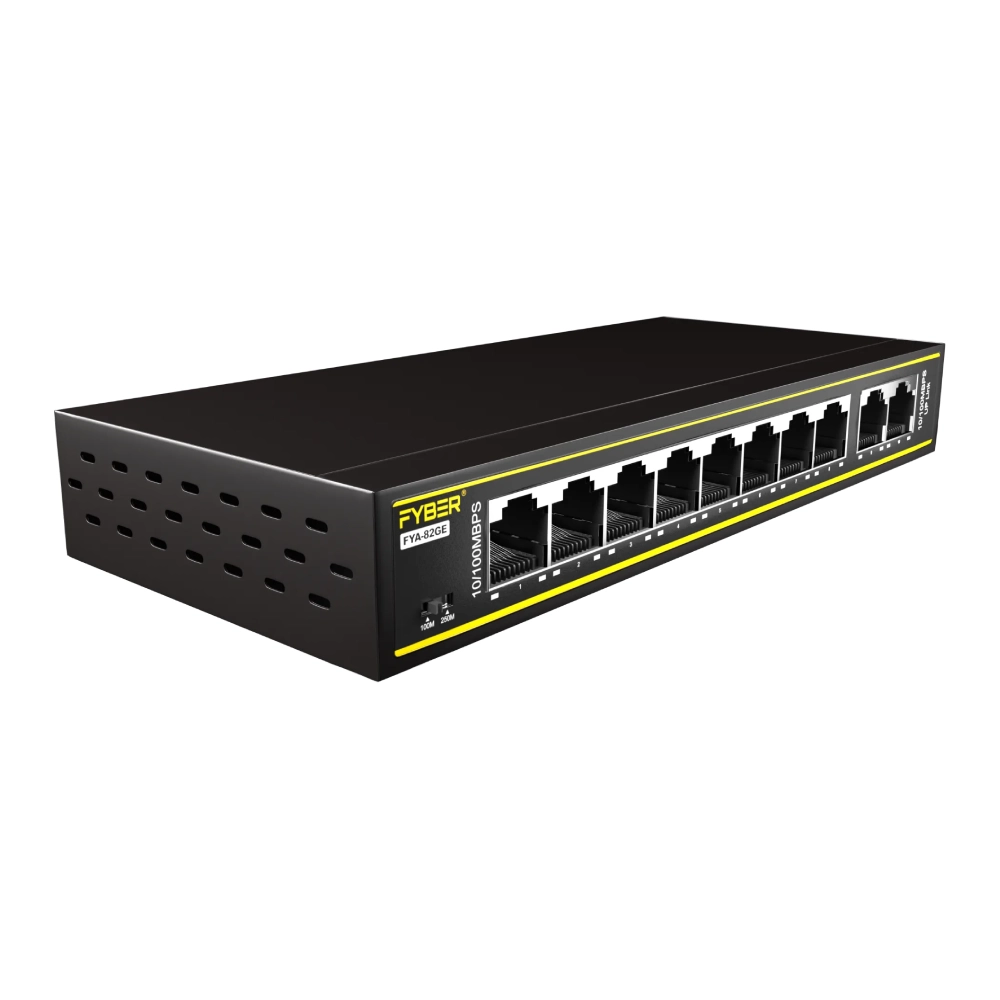

- Fyber FYK-82GE (ATOM Series)
- Product Type
- 8-Port PoE Switch with 2 Gigabit Uplink Ports
- Switching Chipset & Management
- Realtek Chipset, Unmanaged Plug-and-Play
- PoE Ports
- 8 x 10/100 Mbps RJ45 PoE Ports
- Uplink Ports
- 2 x 10/100/1000 Mbps RJ45 Gigabit Ports
- PoE Standard
- IEEE 802.3af/at
- Network Standards
- IEEE 802.3, 802.3u, 802.3X, Auto MDI/MDIX & Flow Control
- Switching Performance
- 5.6 Gbps Switching Capacity, 4.1664 Mpps Forwarding Rate
- MAC Table & Buffer
- 4K MAC Address Table, 1.5M Packet Buffer, Store-and-Forward
- Extend & VLAN Modes
- 250m Transmission at 10 Mbps (Ports 1–8); VLAN Isolation Between PoE Ports with Access to Uplink Ports
- Power Supply
- 52V DC / 2.3A Adapter, Surge Protected & EMI Filtered
- Protection Features
- 4kV Surge Protection, ±4kV Contact ESD, ±6kV Air ESD, Individual TVS Diodes on PoE Ports
