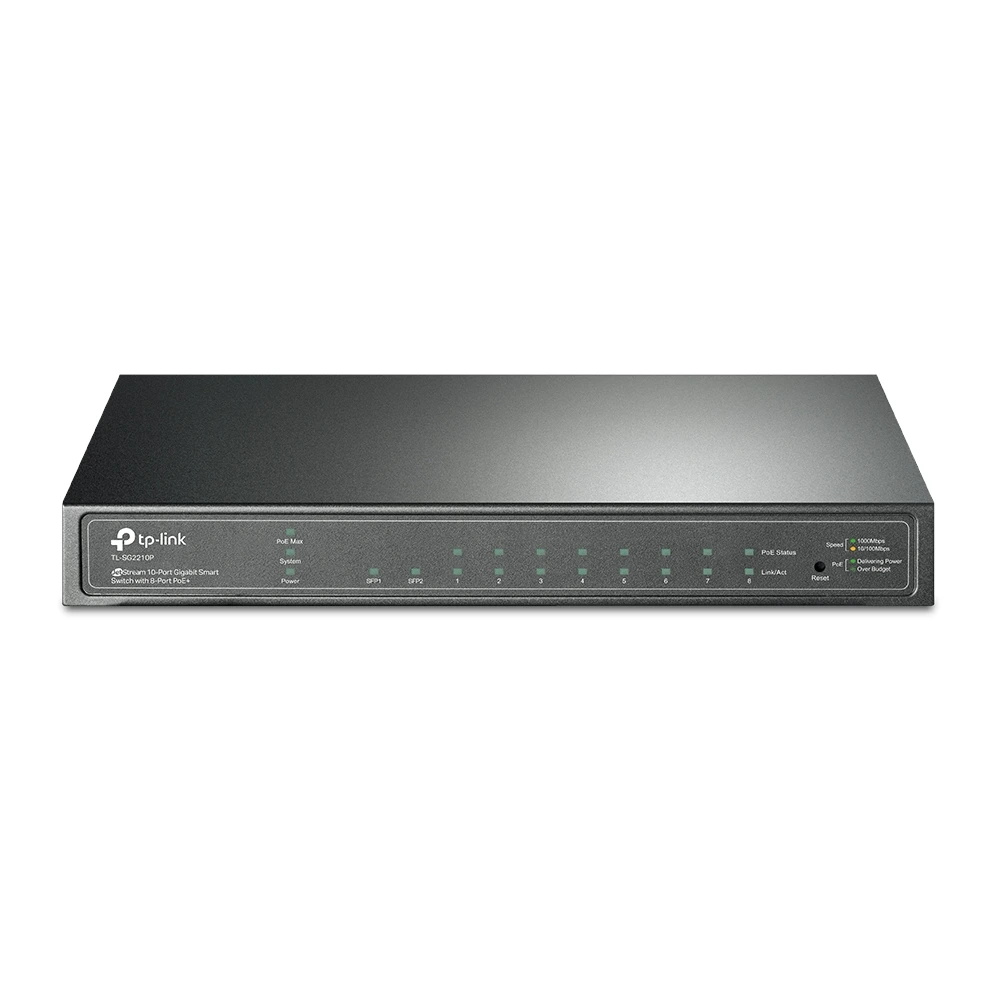

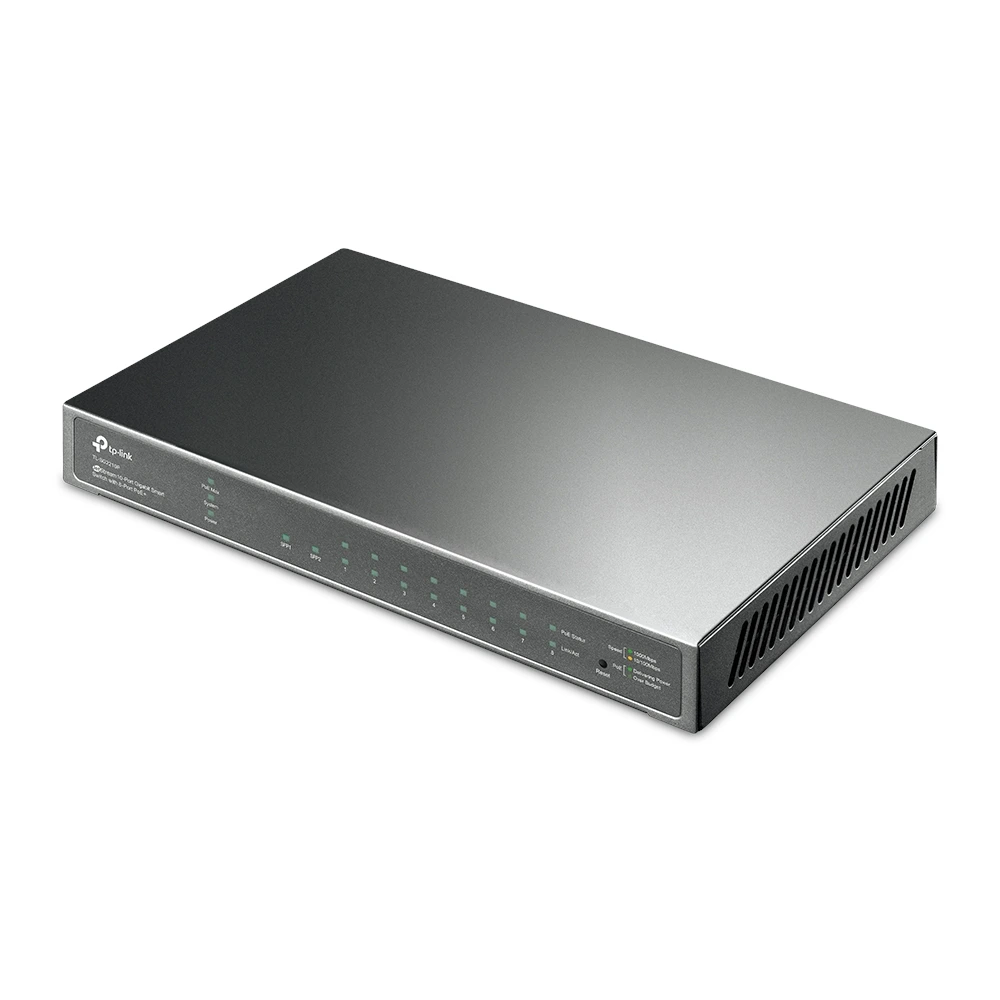

TP-Link Omada Access PoE+ Switch 8 Port (8 GE + 2 GE SFP Port) SG2210P

Product ID: A0035
Item CD: 11X6DQ8
Model: TL-SG2210P
Master Box: 10
Warranty Period: 3 years From TPLINK Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

For Any Query : 78498 31942

Specifications

Feature: Description
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

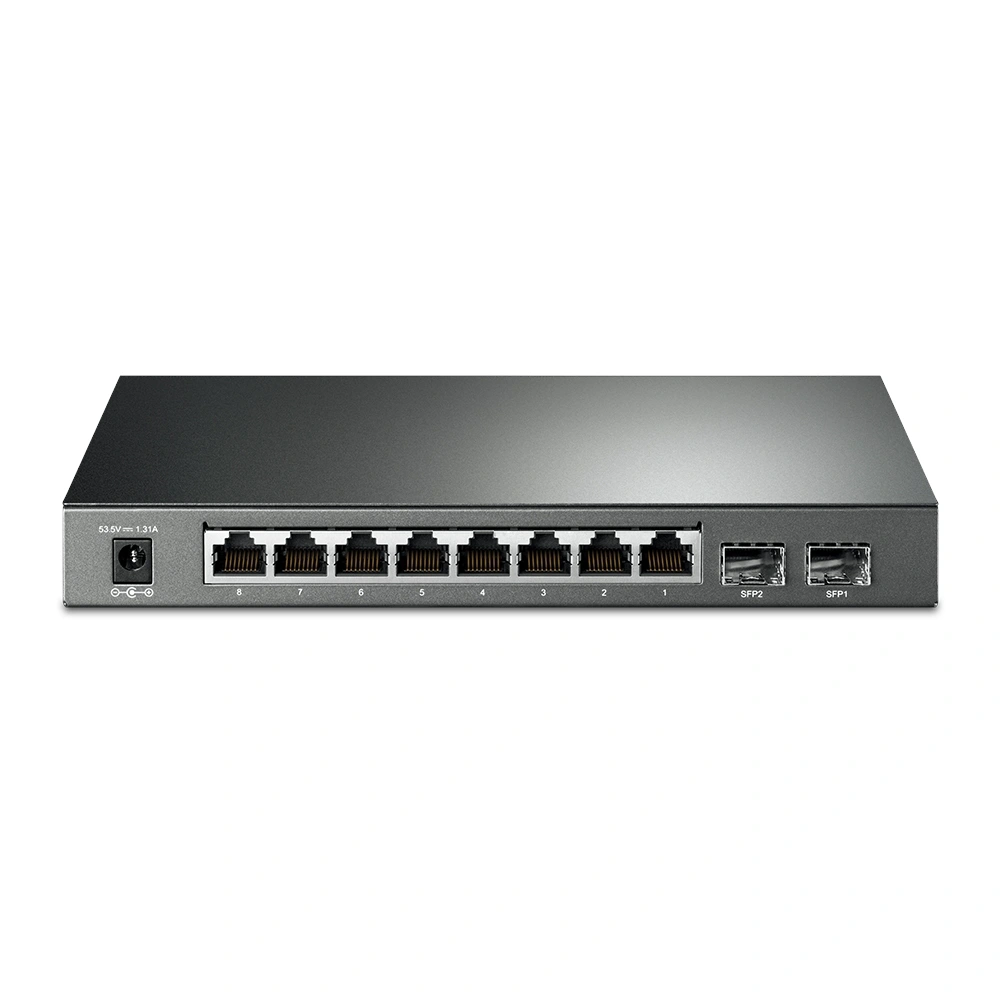

Interface: 8 10/100/1000Mbps RJ45 Ports, 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX)
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
Fan Quantity: Fanless
Power Supply: 100~240VAC, 50/60Hz, External Power Adapter (Output: 53.5VDC/1.31A)
Power Consumption: 10.3 W (220 V/50 Hz) (no PD connected), 76.5 W (220 V/50 Hz) (with 61 W PD connected)
PoE Ports (RJ45): 802.3af/at compliant, 8 Ports, Power Supply: 61 W*
Dimensions (W x D x H): 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
Mounting: Desktop / Wall-Mounting
Max Power Consumption: V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected), 10.3 W (220 V/50 Hz) (no PD connected) V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected) V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected)
Max Heat Dissipation: V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected), 35.14 BTU/hr (220 V/50 Hz) (no PD connected) V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected) V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)
Feature: Description
Switching Capacity: 20 Gbps
Bandwidth/Backplane: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB
Feature: Description
Quality of Service: 802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode, Queue Weight Config, Bandwidth Control, Storm Control
L2 and L2+ Features: 16 IP Interfaces (IPv4/IPv6), Static Routing (32 Static Routes), DHCP Server/Relay, Link Aggregation (Static and 802.3ad LACP), Spanning Tree Protocol (STP, RSTP, MSTP)
VLAN: Max 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN
Access Control List: Support up to 230 entries, Time-Range ACL, MAC ACL, IP ACL, IPv6 ACL
Security: AAA, 802.1X, IP/MAC Binding, DoS Defend, Port Security, ACL, Secure Management (HTTPS, SSH)
IPv6: IPv6 Static Routing, ACL, Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 Applications (Ping6, Tracert6, etc.)
Feature: Description
Omada App: Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4), OC300, OC200, Omada Software Controller
Centralized Management: Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4), OC300, OC200, Omada Software Controller
Cloud Access: Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4), OC300, OC200, Omada Software Controller
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, not supported by TL-SG2210P v4)
Management Features: Web-based GUI, CLI (telnet), SNMPv1/v2c/v3, SNMP Trap/Inform, RMON, Dual Image, CPU Monitoring, System Log
