Shop for the Gigabyte Motherboard B860M DS3H WIFI DDR5 on Mega Jaipur. Designed for Intel Ultra processors, this product offers enhanced speed, high performance, and features high-resolution graphics.
| Main Points | Specifications |
|---|---|
| CPU | LGA1851 socket, supports Intel® Core™ Ultra processors, L3 cache varies |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 up to 9066(O.C.), 4 DIMMs, 256GB max, ECC/Non-ECC, Dual Channel, XMP support |
| Graphics | Intel® HD Graphics: 1x HDMI (4096x2160@60Hz), 2x DP (3840x2160@144Hz), triple display support |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel support |
| LAN | Realtek® 2.5GbE LAN (2.5G/1G/100M) |
| Wi-Fi / Bluetooth | Rev 1.0: Intel® Wi-Fi 6E AX211, Bluetooth 5.3 Rev 1.1: Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3 Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, 160MHz |
| PCIe Slots | CPU: 1x PCIe 5.0 x16 Chipset: 3x PCIe 4.0 x1 (x16 slot size) |
| Storage | CPU: 1x M.2 PCIe 5.0 x4/x2 Chipset: 1x M.2 PCIe 4.0 x4/x2, 4x SATA 6Gb/s Supports RAID 0/1/5/10 |
| USB Ports | Rear: 1x USB 3.2 Gen2 (Type-A), 2x USB 3.2 Gen1, 3x USB 2.0 Internal: 1x USB 3.2 Gen1 Type-C header, 2x USB 3.2 Gen1, 4x USB 2.0 |
| Internal Connectors | ATX 24-pin & 8-pin power, CPU/System fan headers, 3x ARGB Gen2, 1x RGB, 2x M.2, 4x SATA, Front panel/audio, USB Type-C, USB headers, TPM, Q-Flash Plus, reset, Clear CMOS |

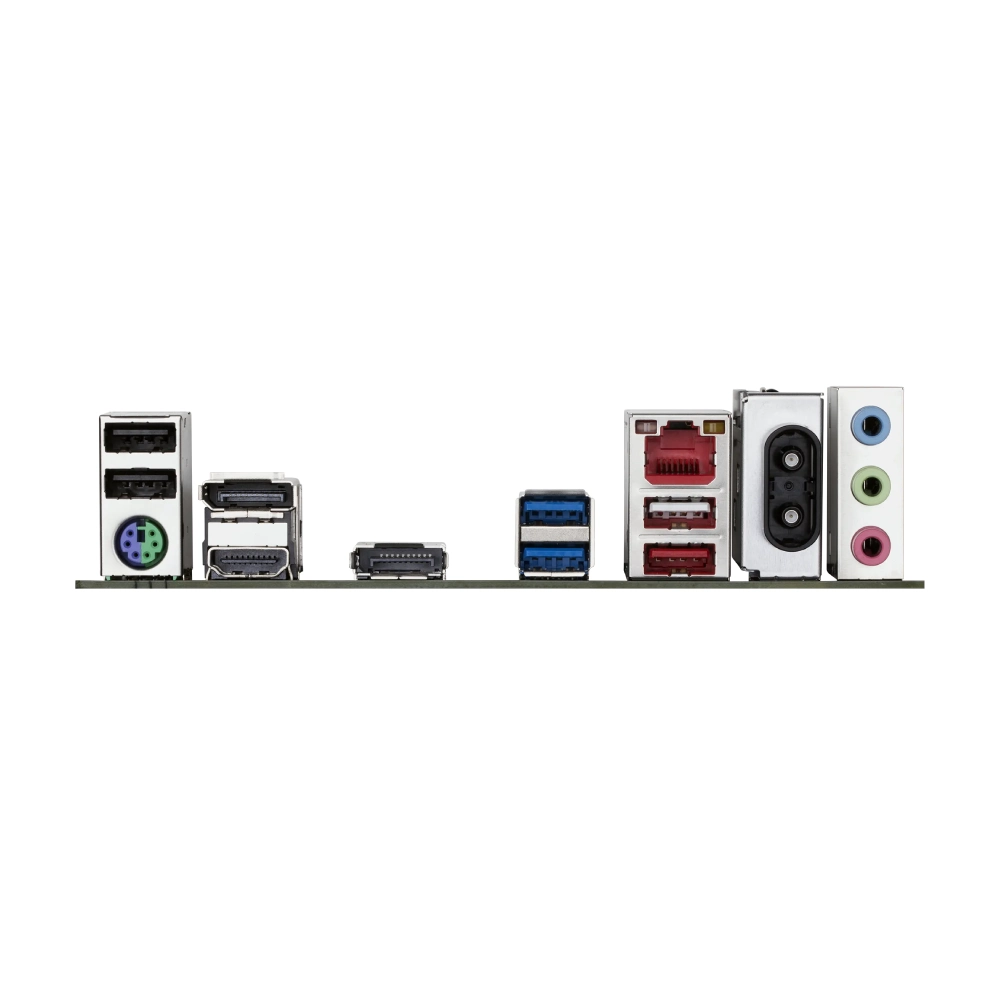

| Back Panel | 1x PS/2, 1x HDMI, 2x DP, 1x USB 3.2 Gen2, 2x USB 3.2 Gen1, 3x USB 2.0, 2x antenna connectors, 1x RJ-45, 3x audio jacks |
