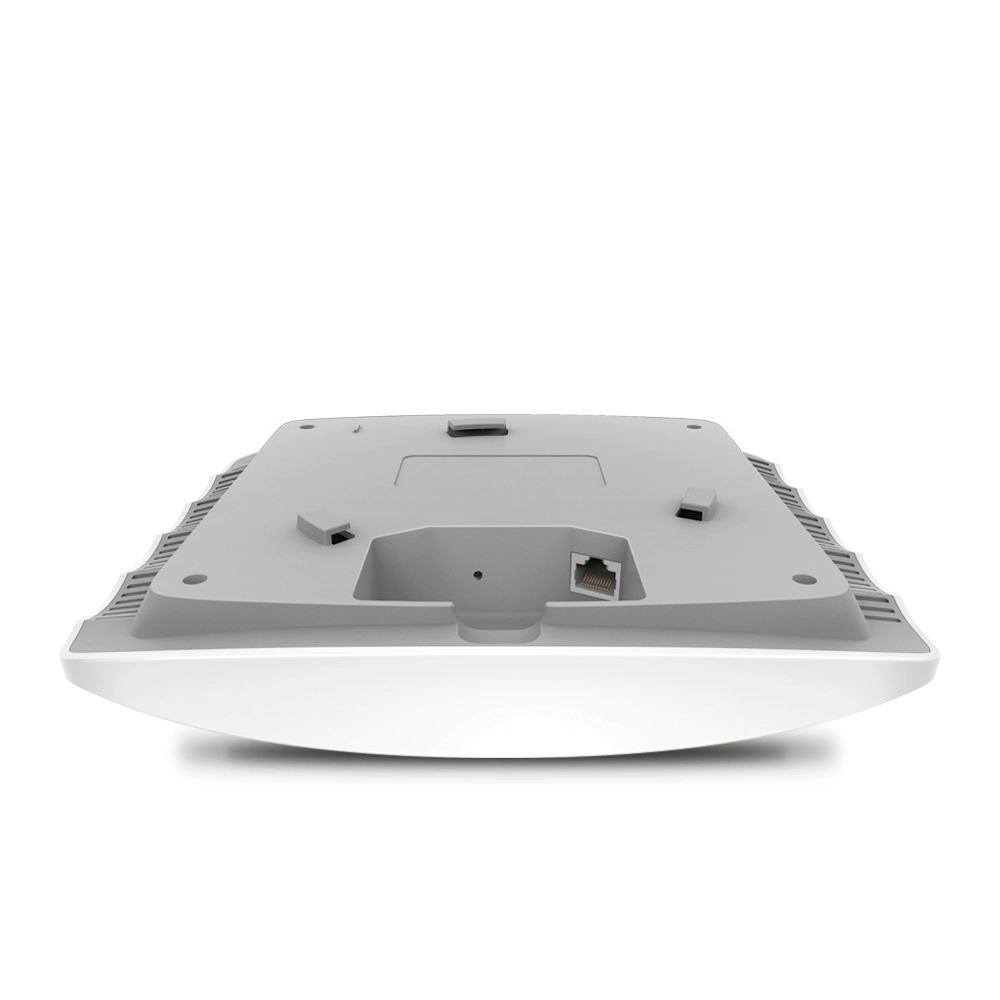

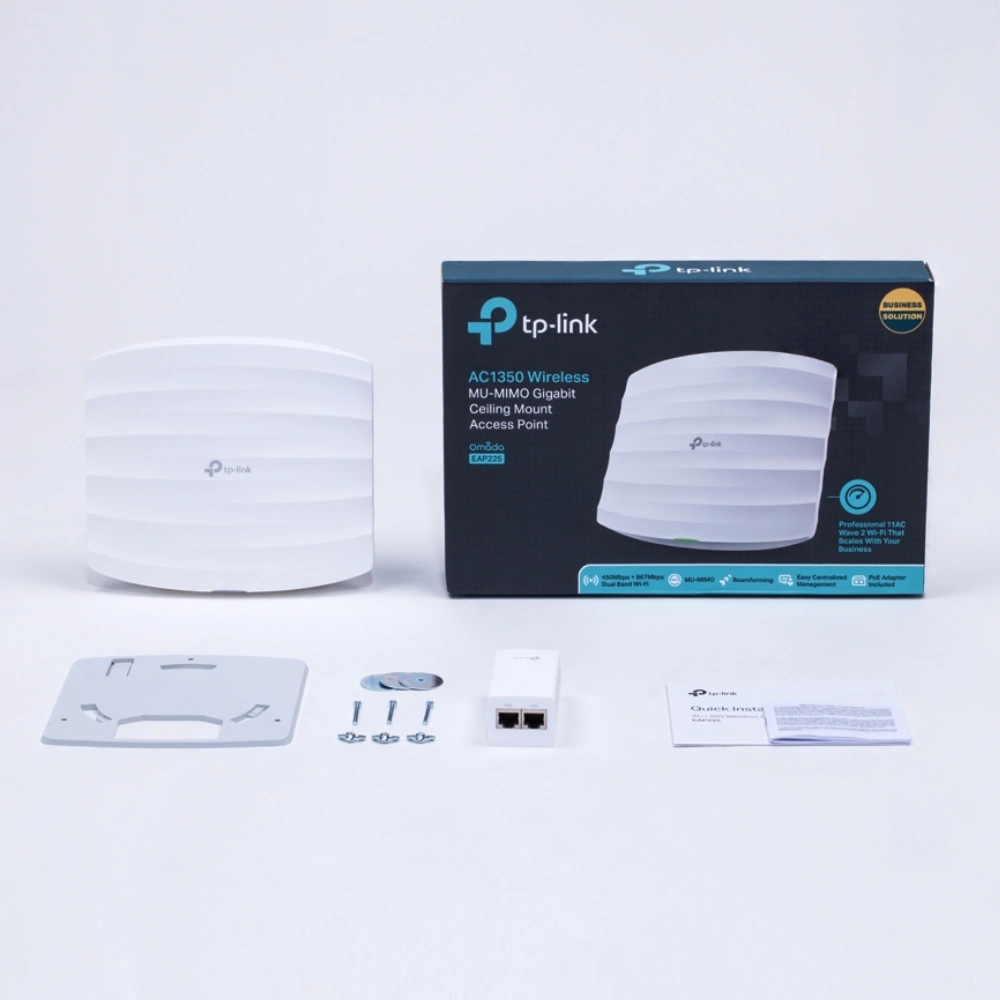

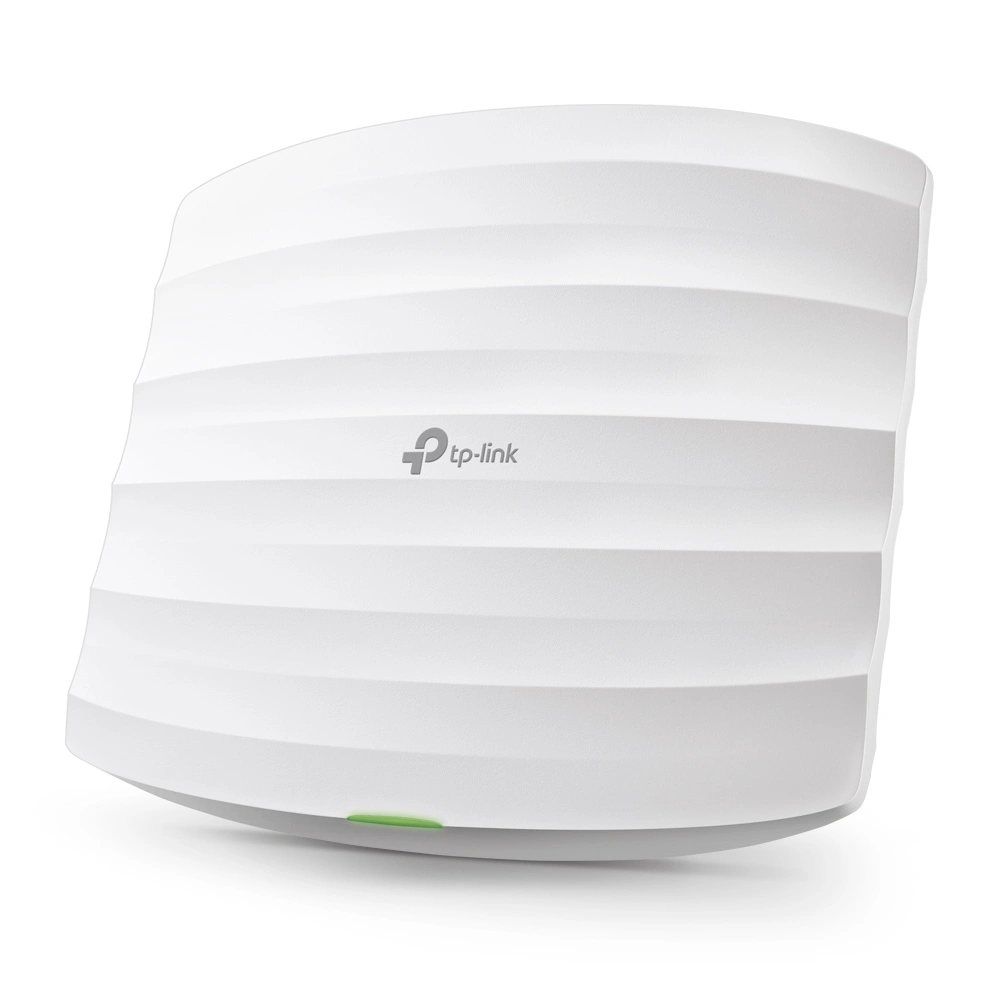

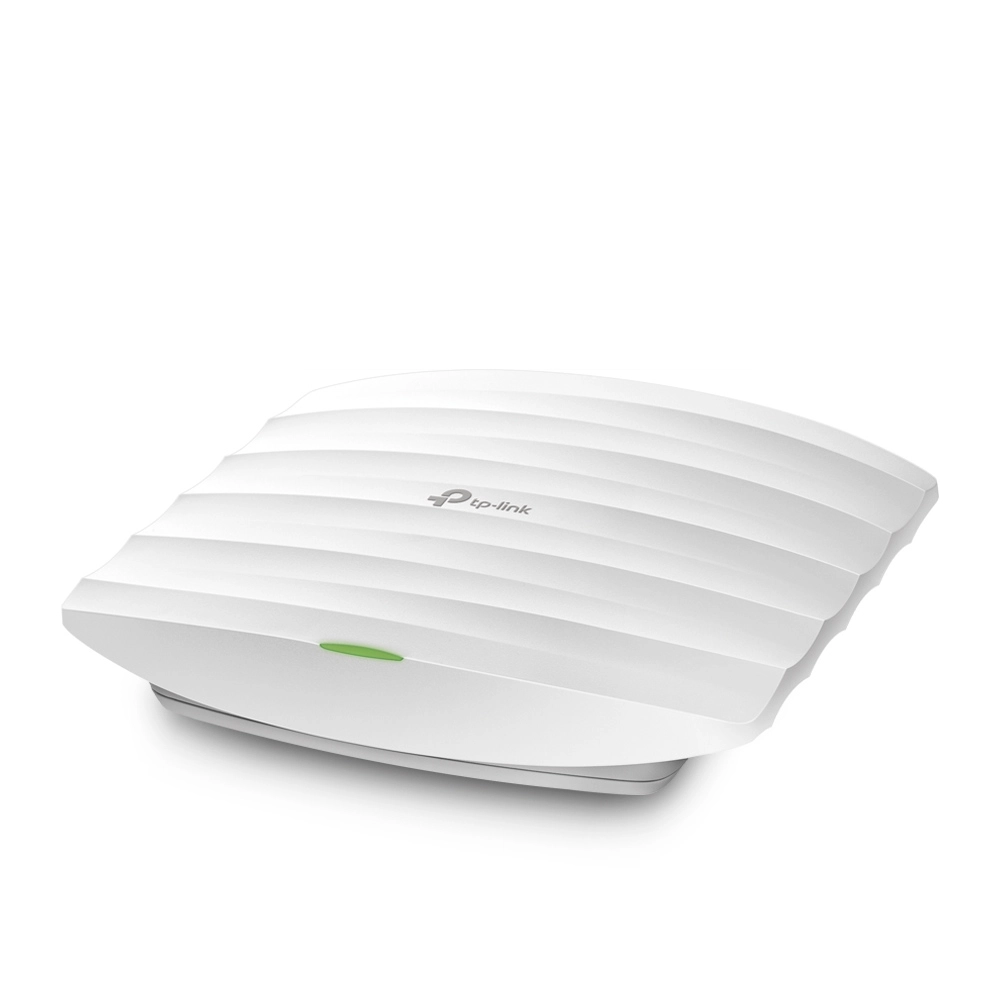

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP225)

Product ID: A0036
Item CD: 11XC000
Model: EAP225
Master Box: 10
Warranty Period: 3 Years From TPLINK Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

For Any Query : 78498 31942

Specifications

Feature: Specification
Hardware - Interface: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock: Yes
Button: Reset
Power Supply: • 802.3af/at PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: • EU: 10.5 W • US: 12.6 W
Dimensions (W x D x H): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type: 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)
Wireless - Wireless Standards: IEEE 802.11ac/n/g/b/a
Wireless - Frequency: 2.4 GHz and 5 GHz
Wireless - Signal Rate: • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 450 Mbps
Wireless - Wireless Functions: • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless - Wireless Security: • Captive Portal Authentication* • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
Wireless - Transmission Power: • CE: ≤20 dBm (2.4 GHz, EIRP), ≤23 dBm (5 GHz, EIRP) • FCC: ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz)
