- Feature
- Specification

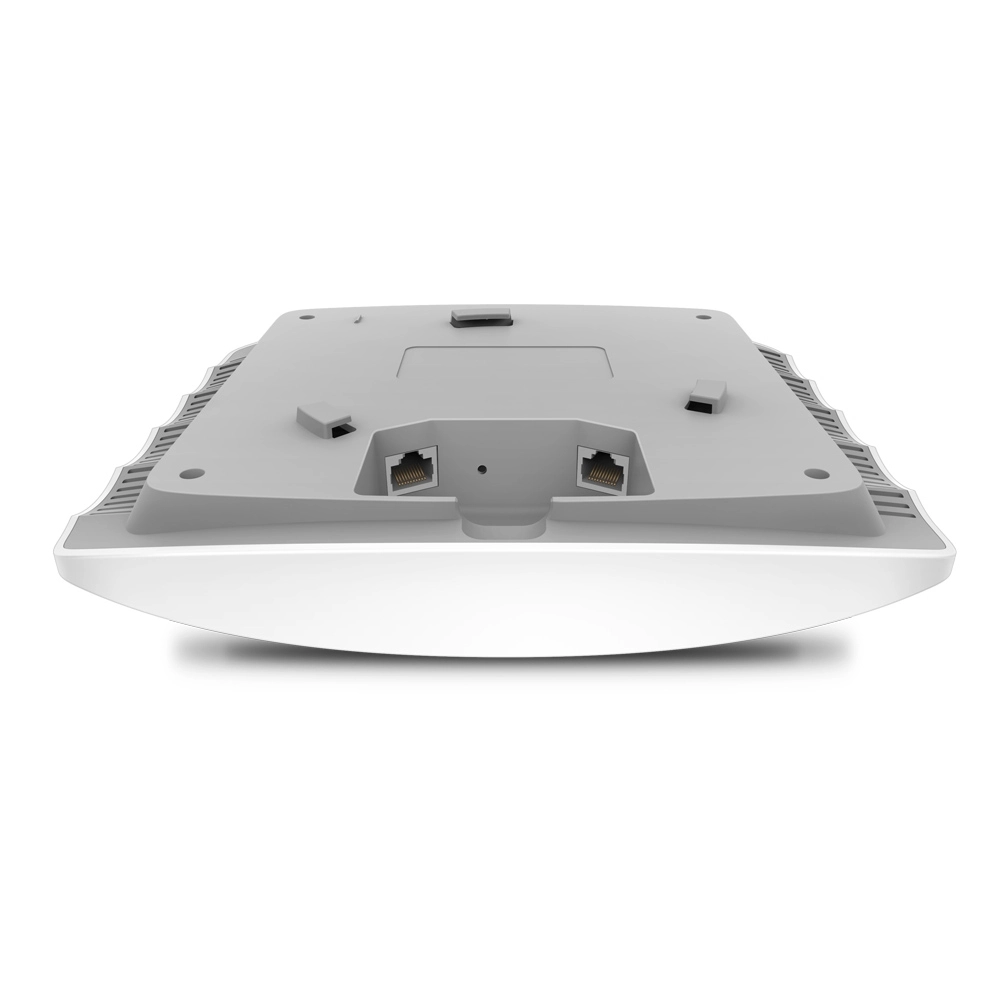

- Interface
- 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3at PoE and Passive PoE In. Another port supports Passive PoE Out, and the power consumption of its downlink terminal devices should not exceed 5W)
- Physical Security Lock
- Yes
- Button
- Reset
- Power Supply
- • 802.3at PoE • 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption
- EU: 14.3 W US: 16.1 W
- Dimensions (W x D x H)
- 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
- Antenna Type
- Internal Omni • 2.4 GHz: 3× 3.5 dBi • 5 GHz: 3× 4 dBi
- Mounting
- Ceiling /Wall Mounting (Kits included)
- Coverage
- 140㎡(1500 ft²)
- Wireless Client Capacity
- 220+
- Concurrent Clients
- 220+
- Wireless Standards
- IEEE 802.11ac/n/g/b/a
- Frequency
- 2.4GHz and 5GHz
- Signal Rate
- • 5 GHz: Up to 1300 Mbps • 2.4 GHz: Up to 450 Mbps
- Wireless Functions
- • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz, 7 for 5GHz) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
- Wireless Security
- • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, • WPA-PSK / WPA2-PSK
- Transmission Power
- • CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) • FCC: ≤24 dBm (2.4 GHz), ≤24 dBm (5 GHz)
