- Feature
- Specification
- Interface
- 1× Gigabit Ethernet (RJ-45) Port
- Button
- Reset
- Power Supply
- V2 and above: • 802.3at PoE • 48 V Passive PoE • 12 V / 1.5 A DC (Power Adapter included)
- Power Consumption
- V2 and above: • EU: 13.7 W (For PoE); 12.3 W (for DC) • US: 14.2 W (For PoE); 12.8 W (for DC)
- Dimensions (W x D x H)
- V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type
- Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
- Mounting

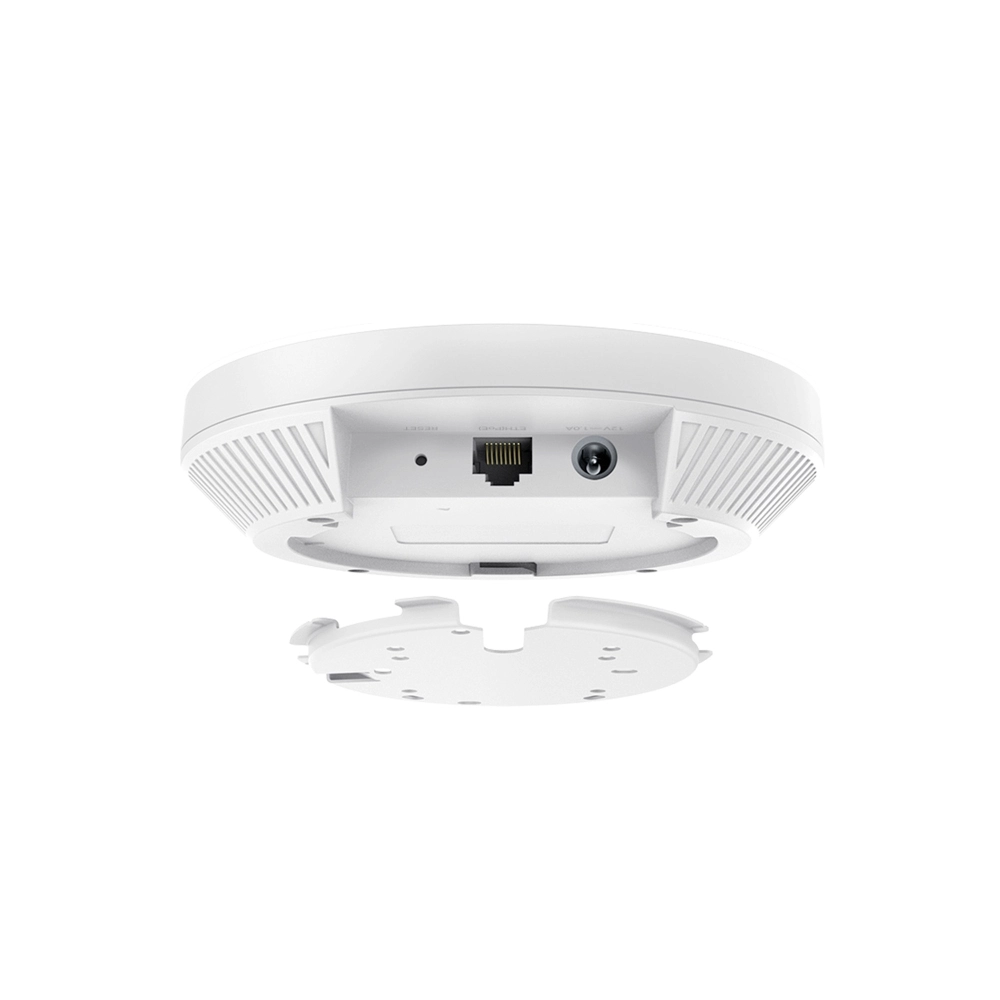

- • Ceiling / Wall Mounting (Kits included) • Junction Box Mounting
- Coverage
- 115㎡ (1250 ft²)
- Wireless Client Capacity
- 250+
- Concurrent Clients
- 250+
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
- Wireless Functions
- • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
- Wireless Security
- • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- • CE: • • • • FCC: • •
