- CPU Support
- Intel® Core™ Ultra Processors (LGA1851 Socket)
- Chipset
- Intel® Z890 Express Chipset
- Memory Support
- 4 × DDR5 DIMM, Up to 256GB, DDR5 9200MHz (OC), Dual Channel, XMP, CUDIMM & ECC/Non-ECC Support
- Graphics Output
- USB4 Type-C (DP 2.1), DisplayPort 2.1, Front HDMI, Supports Up to 3 Displays
- Audio
- Realtek® HD Audio, 2/4/5.1/7.1 Channel, Optical S/PDIF Out
- LAN
- Realtek® 2.5GbE Ethernet
- Wireless Connectivity
- Wi-Fi 7 (802.11be), Bluetooth 5.4
- Expansion Slots
- 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4
- Storage
- 3 × M.2 (1 × PCIe 5.0, 2 × PCIe 4.0), 4 × SATA 6Gb/s, RAID 0/1/5/10
- USB Ports
- USB4 Type-C, USB 3.2 Gen2, USB 3.2 Gen1 & USB 2.0
- Internal Connectors
- ATX Power, CPU/System Fan Headers, RGB Headers, USB Type-C Header, Thunderbolt Header, TPM, Q-Flash Plus

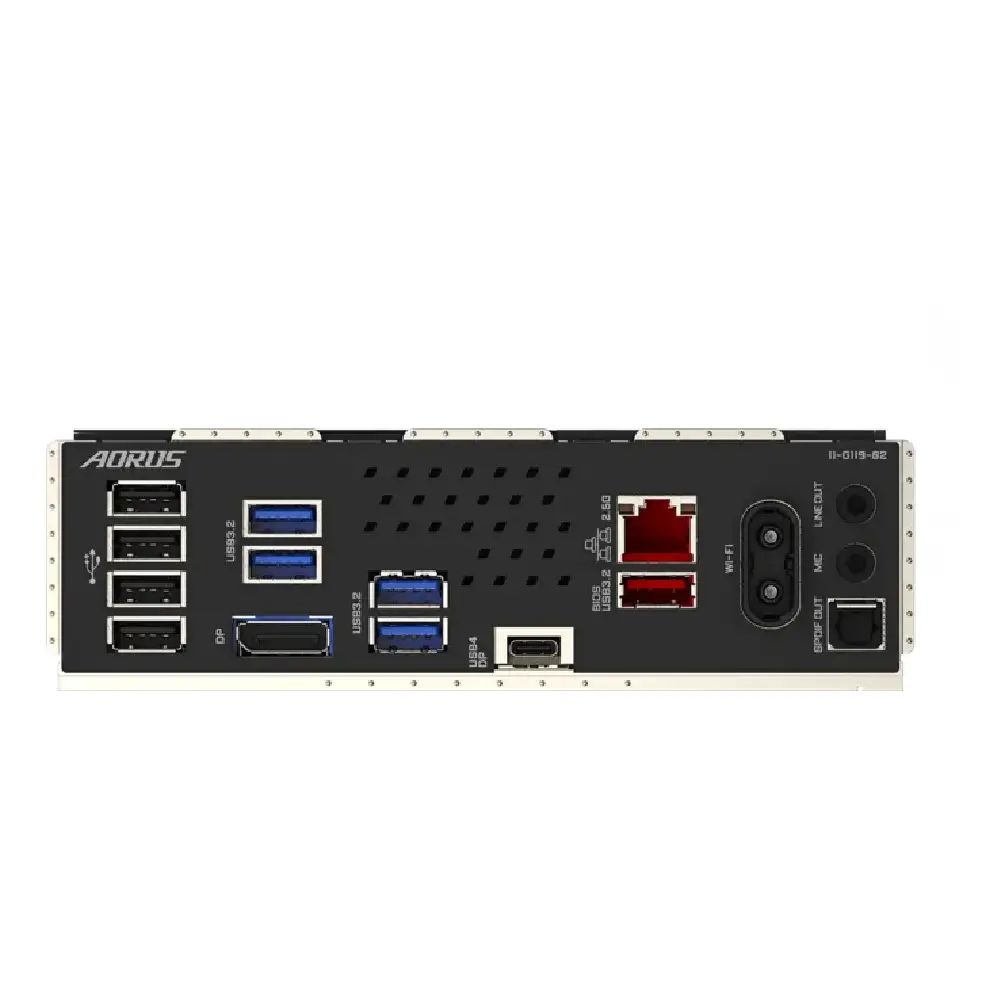

- Rear I/O
- USB4 Type-C, DisplayPort, RJ-45, Optical S/PDIF, Audio Jacks, USB 3.2 & USB 2.0 Ports
