- Main Points
- Specifications

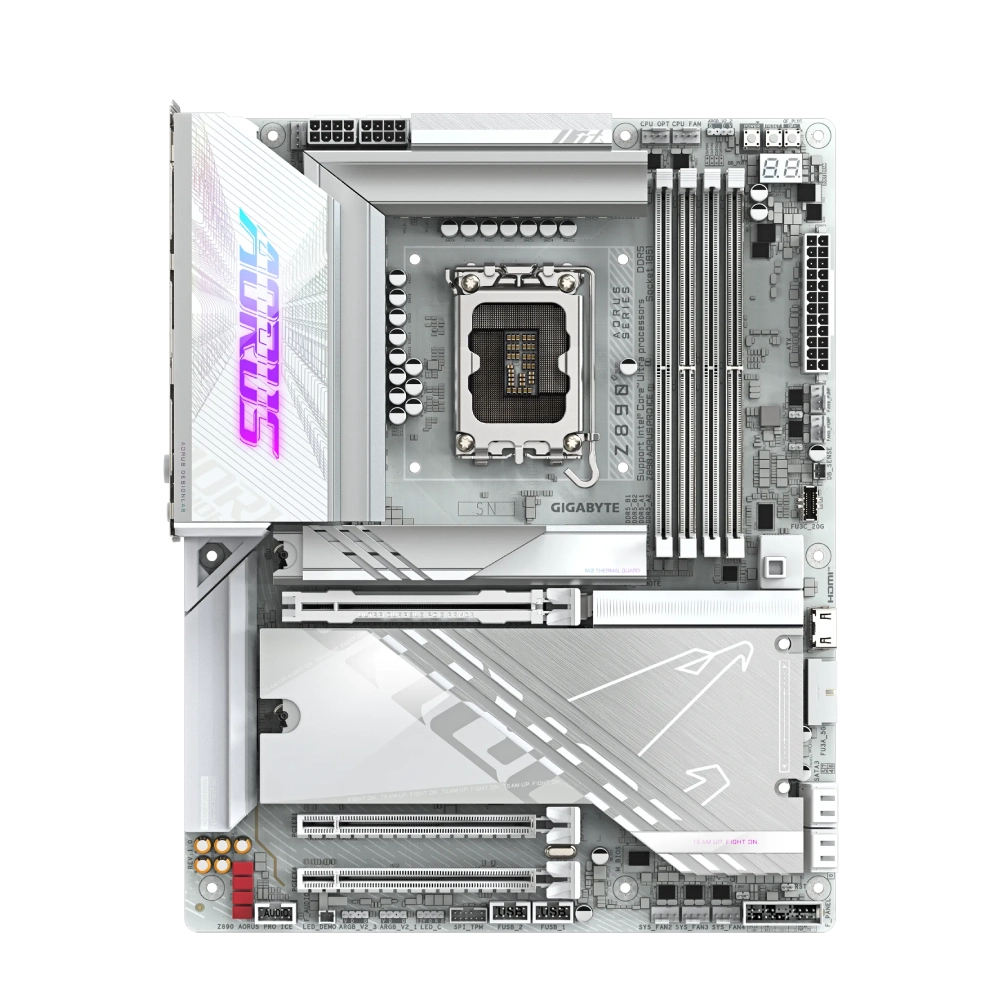

- CPU
- LGA1851 socket: Supports Intel® Core™ Ultra Processors
- Chipset
- Intel® Z890 Express Chipset
- Memory
- DDR5 9500(O.C)~5600 MT/s 4 x DDR5 DIMM, up to 256 GB Dual channel, ECC/non-ECC, XMP, CUDIMM support
- Graphics
- Intel® HD Graphics 2 x Thunderbolt™ 4 USB-C (DP/Thunderbolt output) 1 x HDMI (1920x1080@30Hz) Up to triple-display supported
- Audio
- Realtek® ALC1220 CODEC High Definition Audio, DSD audio (line out) 2/4/5.1/7.1-channel, S/PDIF Out
- LAN
- Realtek® 5GbE LAN chip

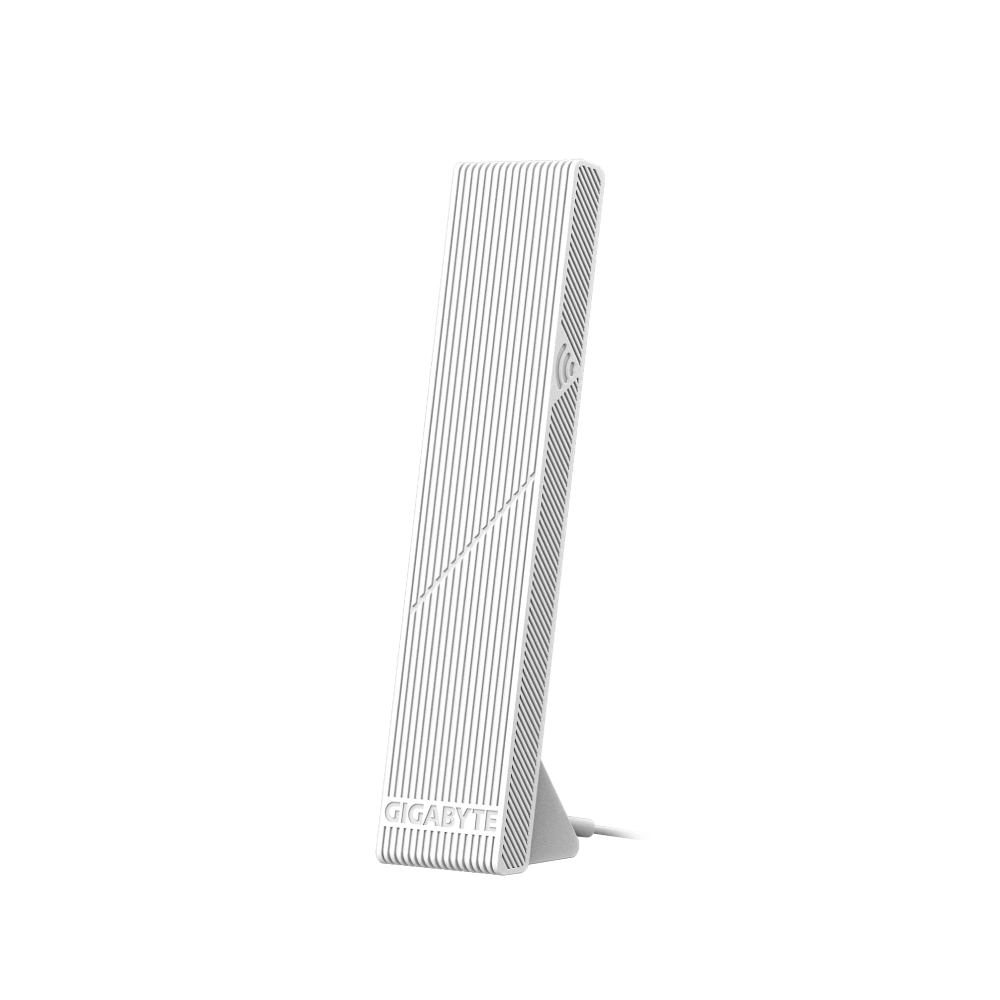

- Wi-Fi/Bluetooth
- Intel® Wi-Fi 7 BE200 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz Bluetooth 5.4
- PCIe Slots
- 1 x PCIe 5.0 x16 (CPU) 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1 (Chipset)
- Storage
- 5 x M.2 (PCIe 5.0/4.0/SATA) 4 x SATA 6Gb/s RAID 0/1/5/10 support
- USB Ports
- 2 x Thunderbolt™ 4 USB-C 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 2 Type-A 6 x USB 3.2 Gen 1 8 x USB 2.0
- Internal Connectors
- 24-pin + 2 x 8-pin power 7 x fan headers, 5 x M.2, 4 x SATA RGB, aRGB, TPM, USB headers, etc.

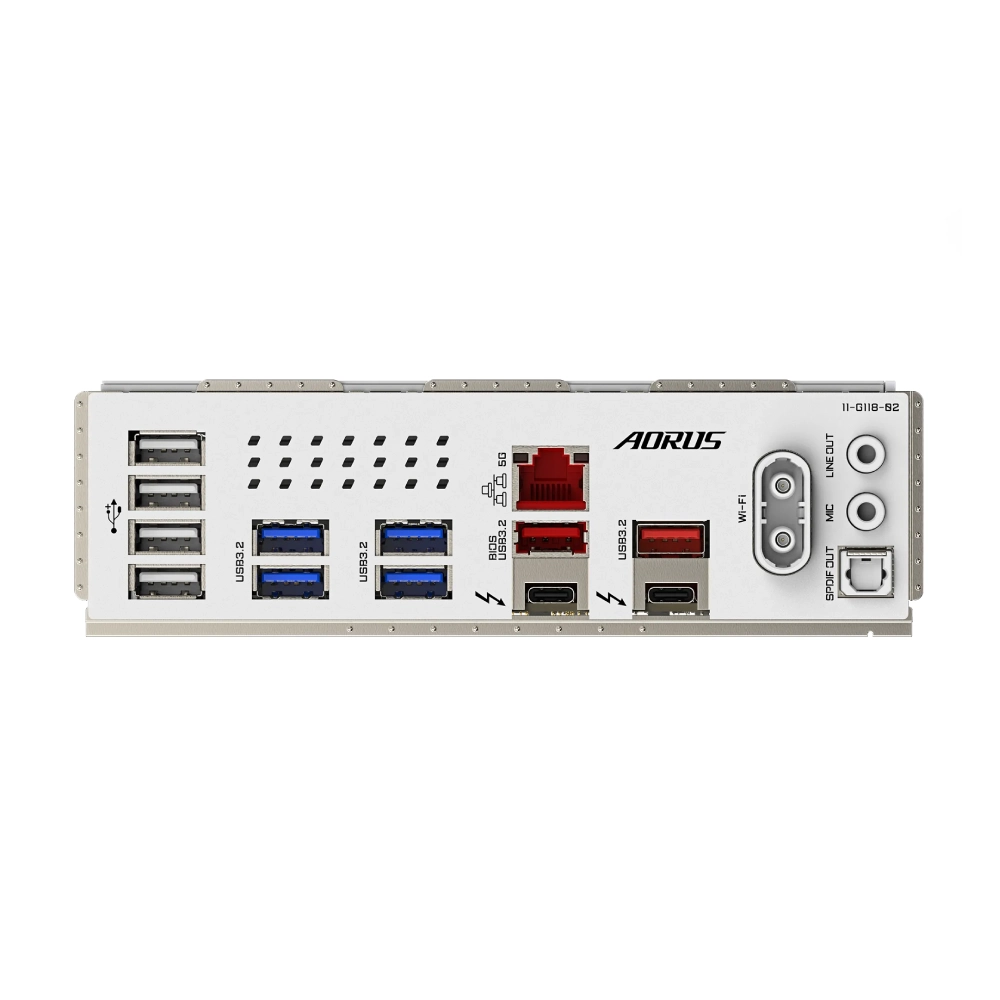

- Back Panel
- 2 x Thunderbolt™ 4 USB-C 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 4 x USB 2.0 LAN, Optical S/PDIF, 2 x Audio jacks
