- CPU
- LGA1851 socket, Intel® Core™ Ultra support
- Chipset
- Intel® Z890 Express
- Memory
- 4x DDR5 DIMMs, up to 256 GB, DDR5-9500(O.C) max, ECC/non-ECC Un-buffered, XMP, CUDIMM
- Graphics
- Intel® HD Graphics, TB4 (DP/USB-C), HDMI (1920x1080@30Hz), DP 1.4, HDCP 2.3
- Audio
- Realtek® ALC1220, 7.1-ch, S/PDIF Out
- LAN
- Realtek® 2.5GbE
- Wi-Fi / BT
- Wi-Fi 7 (MT7925 or RTL8922AE), BT 5.4
- PCIe Slots
- 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 4.0 x1
- Storage
- 5x M.2 (PCIe 5.0/4.0, SATA support), 4x SATA 6Gb/s, RAID 0/1/5/10 (NVMe + SATA)
- USB
- Rear: 1x TB4 (USB-C), 2x USB 3.2 Gen2, 4x USB 3.2 Gen1, 4x USB 2.0 Internal: 1x USB 3.2 Gen2x2 (C), 1x USB 3.2 Gen1 header, 2x USB 2.0 headers
- Internal I/O
- 24-pin ATX, 2x 8-pin ATX 12V, 5x M.2, 4x SATA, fan headers, RGB headers, USB headers, TPM, buttons, jumpers

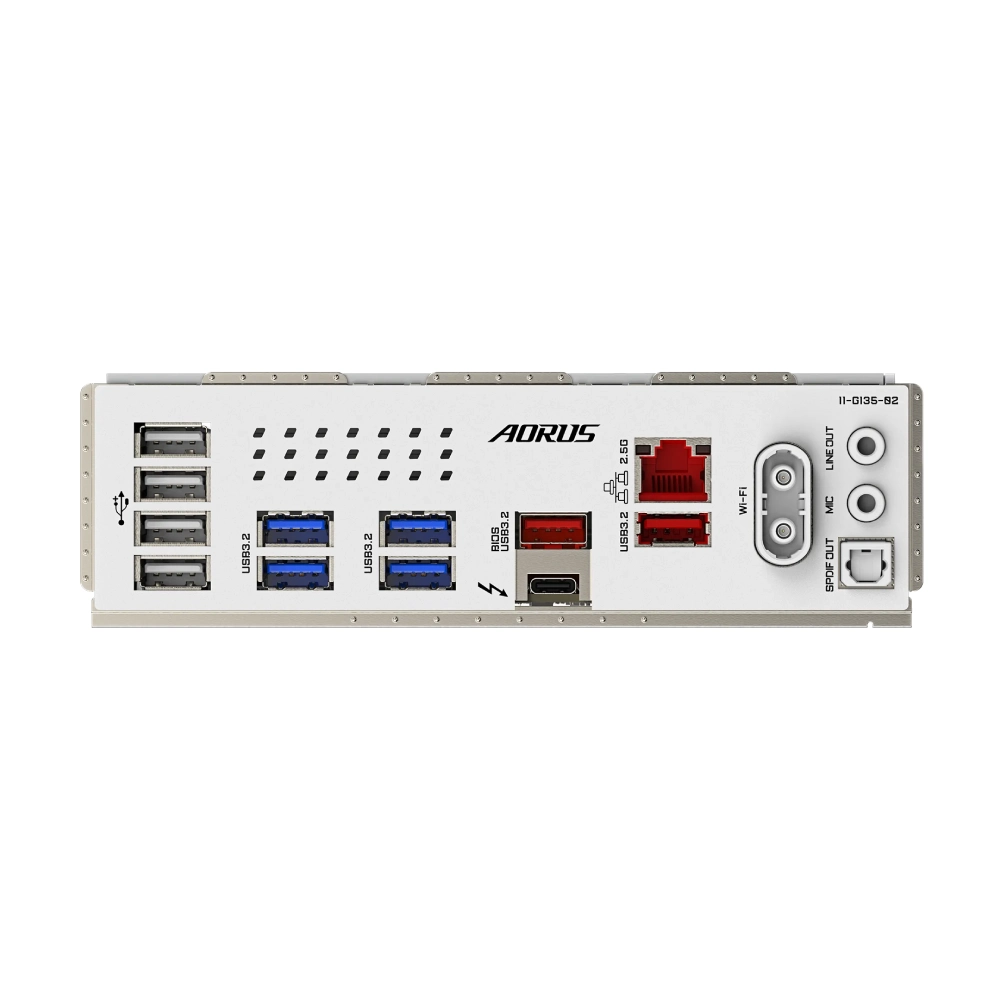

- Back Panel
- 1x TB4 (USB-C), 2x USB 3.2 Gen2, 4x USB 3.2 Gen1, 4x USB 2.0, 1x RJ-45, S/PDIF, 2x audio jacks, 2x antenna connectors
