- Main Points
- Specifications
- CPU
- LGA1851, Intel® Core™ Ultra support, L3 cache varies
- Chipset
- Intel® B860 Express
- Memory
- DDR5 up to 9066(O.C), 4 DIMMs, 256GB, Dual channel, ECC/Non-ECC, XMP
- Graphics
- Intel® HD Graphics, 1x HDMI, 2x DP, up to triple display
- Audio
- Realtek® Audio, HD, 7.1-channel
- LAN
- Realtek® 2.5GbE
- PCIe Slots
- 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x1 (Chipset)
- Storage
- 2 x M.2 (PCIe 5.0/4.0), 4 x SATA, RAID 0/1/5/10
- USB Ports
- 1 x USB 3.2 Gen2 (Type-A), 5 x USB 3.2 Gen1, 7 x USB 2.0 (Includes internal + back panel)
- Internal Connectors
- ATX power, CPU/system fan headers, RGB/ARGB headers, TPM, USB headers, Q-Flash, CMOS

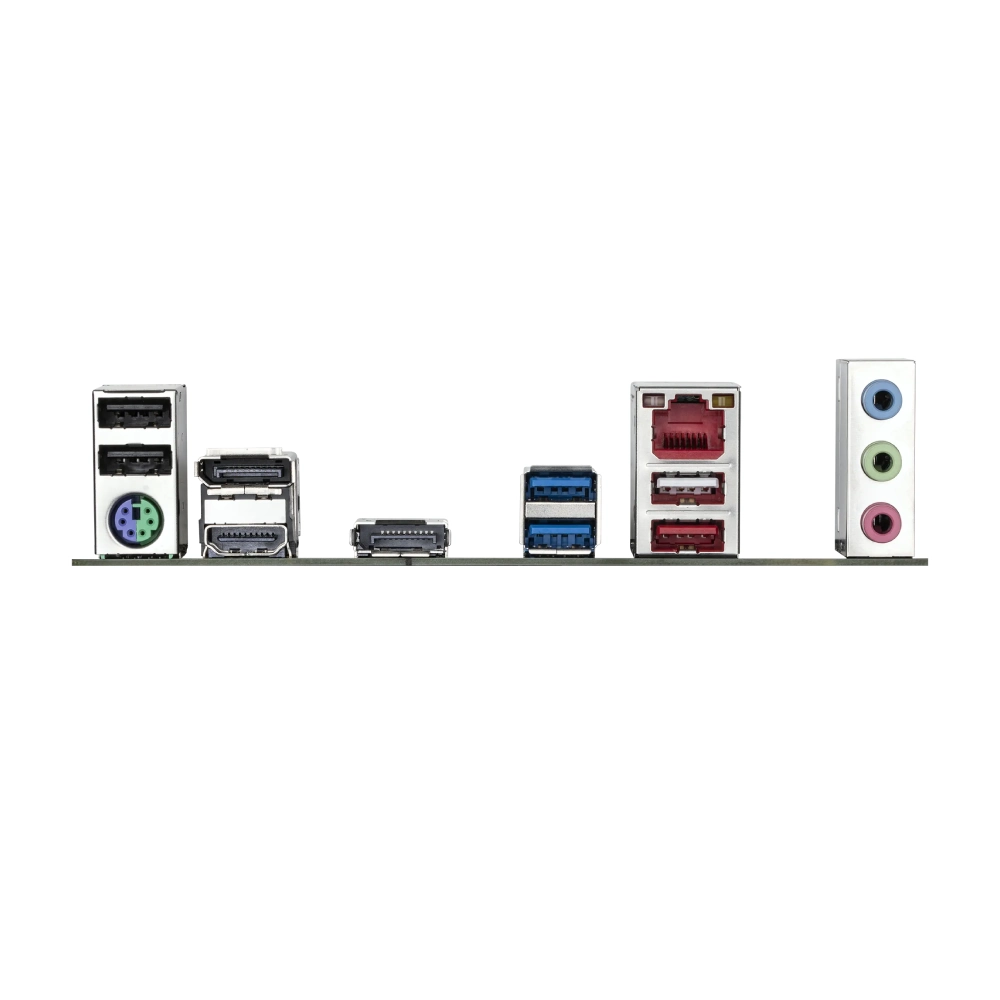

- Back Panel
- HDMI, 2 x DP, USB 3.2/2.0, PS/2, LAN, Audio jacks
