- Main Points
- Specifications
- CPU
- LGA1851, Intel® Core™ Ultra, L3 cache varies
- Chipset
- Intel® B860 Express
- Memory
- DDR5 9200(O.C) max, 4 DIMMs, 256GB, Dual channel, ECC/Non-ECC, XMP
- Graphics
- Intel® HD Graphics, USB4/DP/HDMI (up to quad-display)
- Audio
- Realtek® Audio, 7.1-channel, S/PDIF Out
- LAN
- Realtek® 2.5GbE
- Wi-Fi / BT
- Wi-Fi 7 (Realtek/MediaTek), BT 5.4
- PCIe Slots
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
- Storage
- 3 x M.2 (PCIe 5.0/4.0), 4 x SATA, RAID 0/1/5/10
- USB
- USB4, USB 3.2 Gen2/Gen1, USB 2.0 (total 17 ports incl. internal)
- Internal I/O
- ATX power, 5 fan headers, RGB/ARGB, M.2/SATA, TPM, Thunderbolt, USB headers

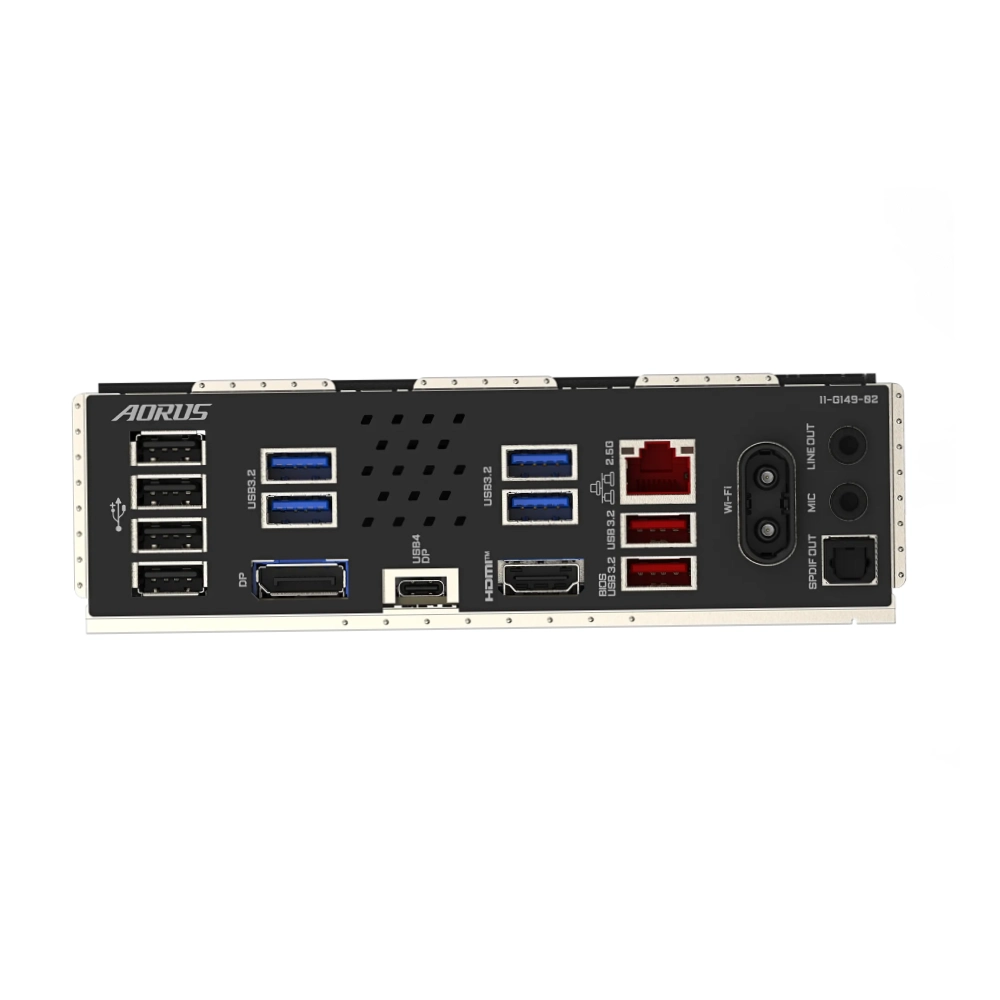

- Back Panel
- DP, HDMI, USB4, USB 3.2 Gen2/Gen1, USB 2.0, LAN, Audio, S/PDIF, Antennas
