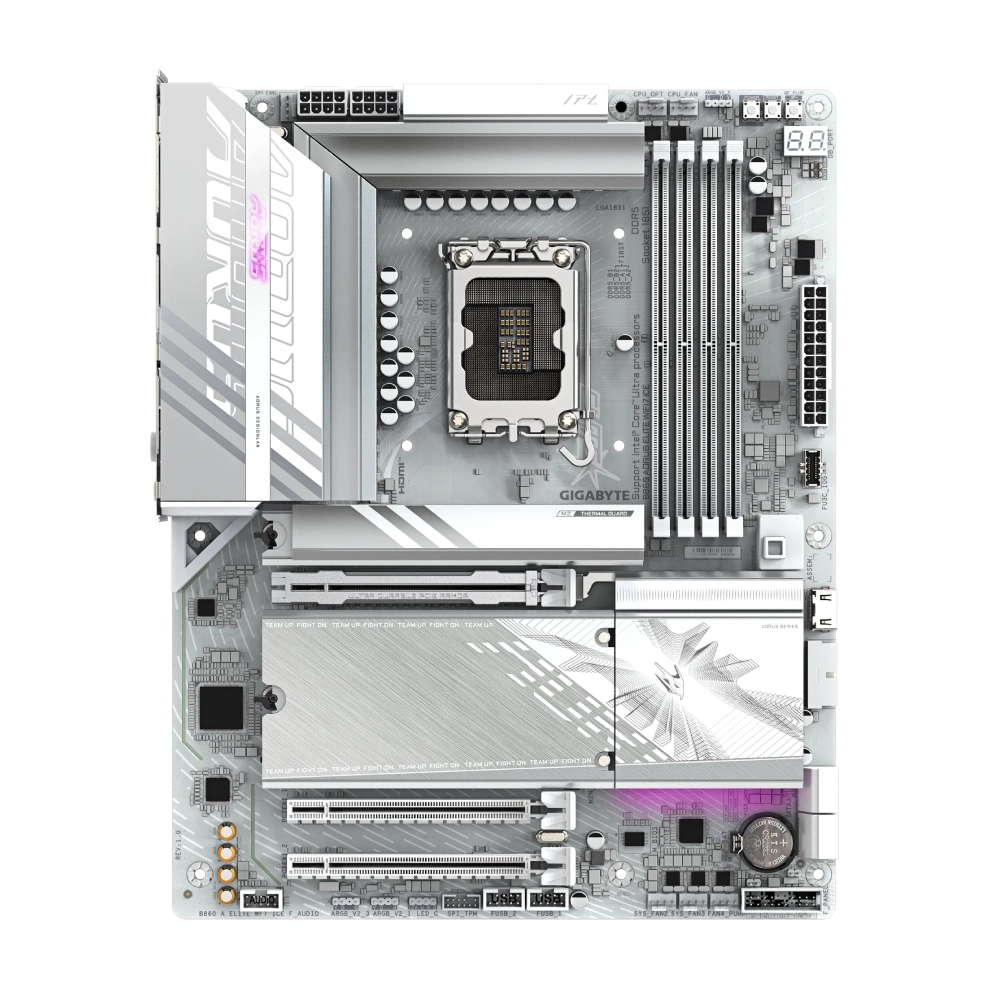

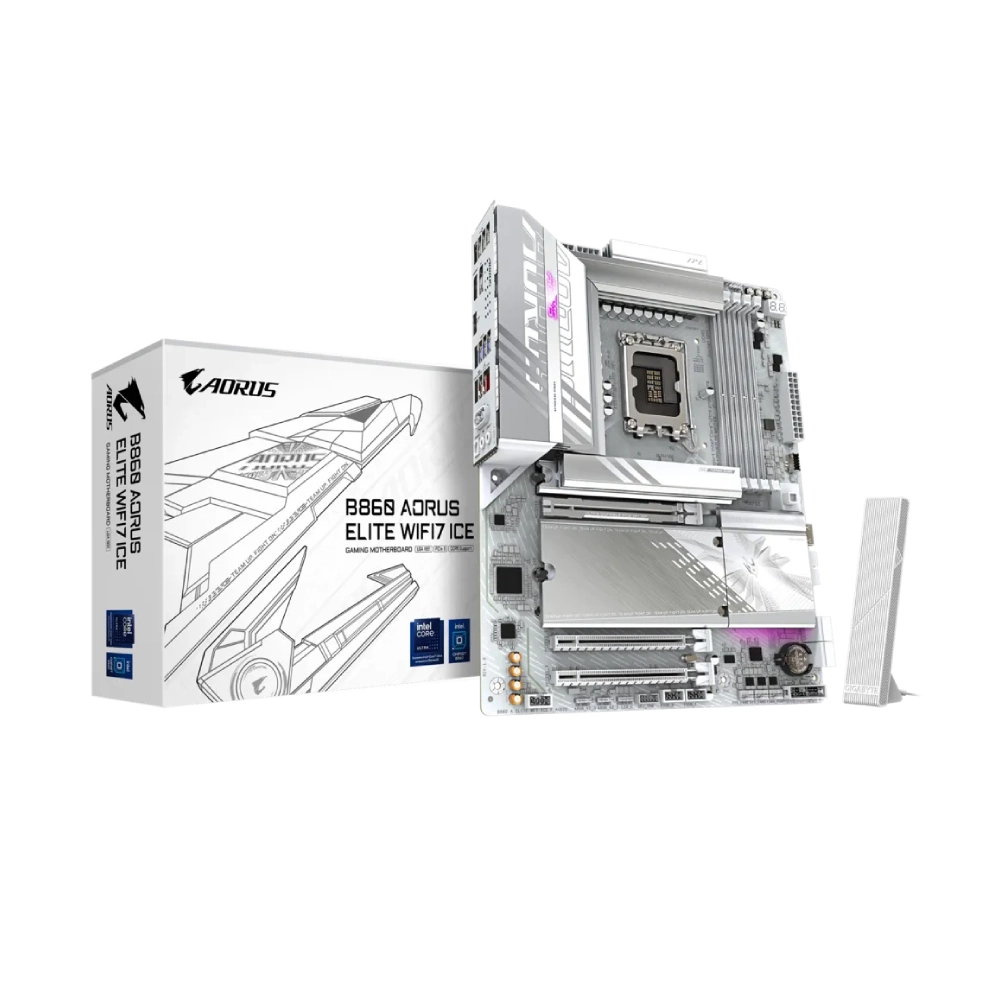

Gigabyte Motherboard B860 Aorus Elite WIFI DDR5 For Intel Ultra Processors

Product ID: A0841
Item CD: 15MRY80
Model: B860 Aorus Elite
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

For More Information: 70738 88300

Specifications

Category: Specification
CPU: LGA1851 socket: Supports Intel® Core™ Ultra Processors L3 cache varies by CPU
Chipset: Intel® B860 Express
Memory: - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) - DDR5 9200(O.C) to 5600 MT/s - Dual channel, ECC/non-ECC, XMP supported
Graphics: Integrated Intel® HD Graphics (CPU dependent) - 1 x USB4® Type-C (DP 2.1, 3840x2160@144Hz) - 1 x DisplayPort (DP 2.1, 3840x2160@144Hz) - 1 x HDMI 2.1 (4096x2160@60Hz) - 1 x front HDMI (1920x1080@30Hz) - Quad-display support
Audio: Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN

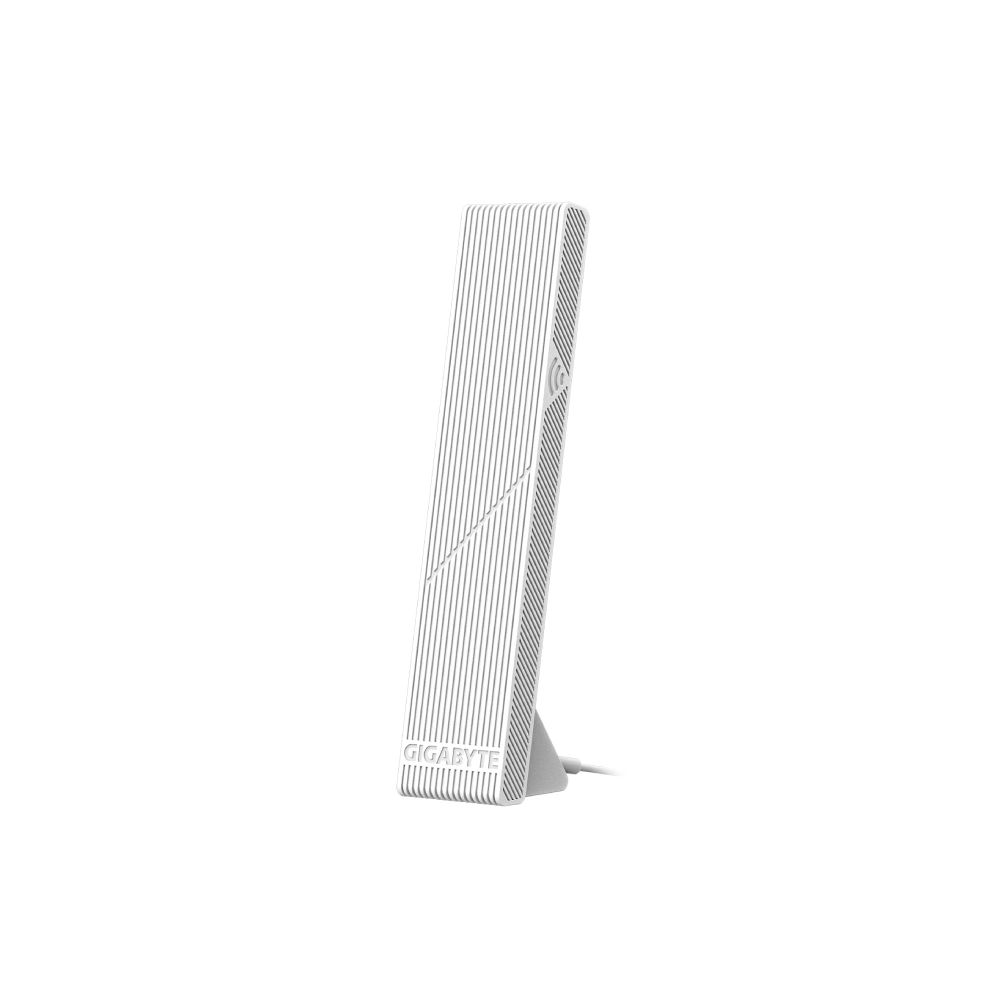

Wi-Fi / Bluetooth: - Realtek® Wi-Fi 7 RTL8922AE or MediaTek Wi-Fi 7 MT7925 (rev. dependent) - 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz - Bluetooth 5.4 * Wi-Fi 7 requires Windows 11 SV3
PCIe Slots: - 1 x PCIe x16 (CPU, PCIe 5.0) - 2 x PCIe x16 (Chipset, PCIe 4.0 x1)
Storage: - 1 x M.2 PCIe 5.0 x4/x2 (25110/22110/2280) - 2 x M.2 PCIe 4.0 x4/x2 (22110/2280) - 4 x SATA 6Gb/s - RAID 0/1/5/10 (SATA)
USB Ports: - 1 x USB4® Type-C (rear) - 1 x USB 3.2 Gen 2 Type-C (internal) - 2 x USB 3.2 Gen 2 Type-A (rear) - 6 x USB 3.2 Gen 1 (4 rear, 2 internal) - 8 x USB 2.0 (4 rear, 4 internal)
Internal Connectors: 24-pin ATX, 2 x 8-pin ATX 12V, CPU/system/water fan headers, RGB/ARGB Gen2 headers, 3 x M.2, 4 x SATA, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0, TPM, HDMI, Q-Flash Plus, Clear CMOS

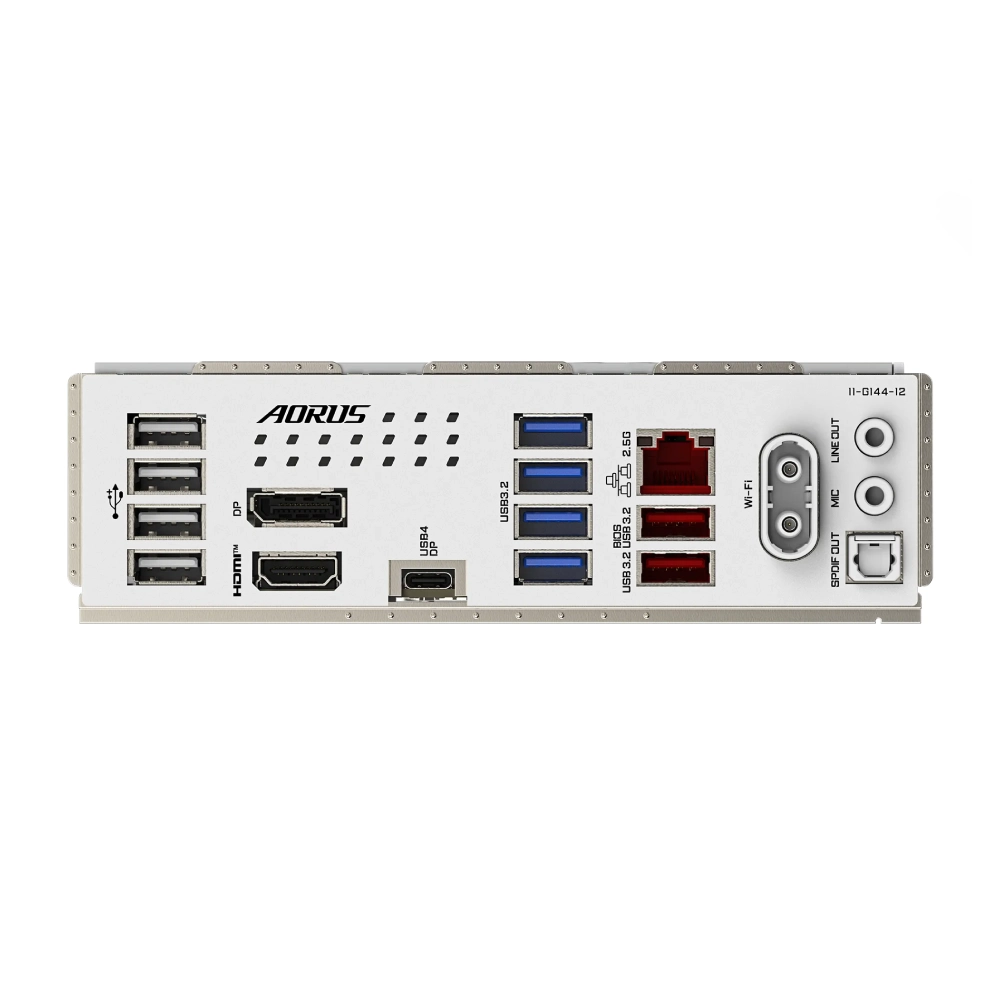

Back Panel: USB4® Type-C, 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0, DP, HDMI, 2 x antenna, RJ-45, Optical S/PDIF, 2 x audio jacks
