Component

Details

CPU Support

AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Socket AM5)

Chipset

AMD B650

Memory

4x DDR5 DIMM, up to 256 GB Supports DDR5 8000(OC) down to 4400 MT/s Dual channel, non-ECC, EXPO™ & XMP profiles supported

Onboard Graphics

1x USB Type-C® (DP 1.4, 3840x2160@144Hz, PD 20V/3A) 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3)

Audio

Realtek® ALC1220-VB CODEC, High Definition 7.1-channel Audio, S/PDIF Out, DSD supported

LAN

Intel® 2.5GbE LAN (2.5/1/0.1 Gbps)

Wi-Fi / Bluetooth

AMD Wi-Fi 6E RZ616, Dual-band 2.4/5/6 GHz, Bluetooth 5.2, up to 2.4 Gbps

PCIe Slots

1x PCIe x16 (from CPU): - Ryzen 7000/9000: PCIe 4.0 x16 - Ryzen 8000 (Phoenix 1): PCIe 4.0 x8 - Ryzen 8000 (Phoenix 2): PCIe 4.0 x4 1x PCIe x16 (from chipset, x4 mode) 1x PCIe x16 (PCIe 3.0 x1)

Storage

3x M.2 (various support for PCIe 5.0/4.0 depending on CPU) 4x SATA 6Gb/s RAID 0/1/10 for NVMe and SATA devices

USB Ports

Back: - 1x USB Type-C® (DP/USB 3.2 Gen 2) - 3x USB 3.2 Gen 2 Type-A (red) - 4x USB 3.2 Gen 1 - 2x USB 2.0 Internal: - USB 3.2 Gen 2x2 Type-C header - USB 3.2 Gen 1 header (2 ports) - 2x USB 2.0 headers (4 ports)

Internal Connectors

24-pin ATX, 8-pin & 4-pin CPU, 3x M.2, 4x SATA CPU/WC/system fan headers, RGB/ARGB, TPM, USB headers Q-Flash Plus, Reset button, Noise detection, Temp sensors, Serial port

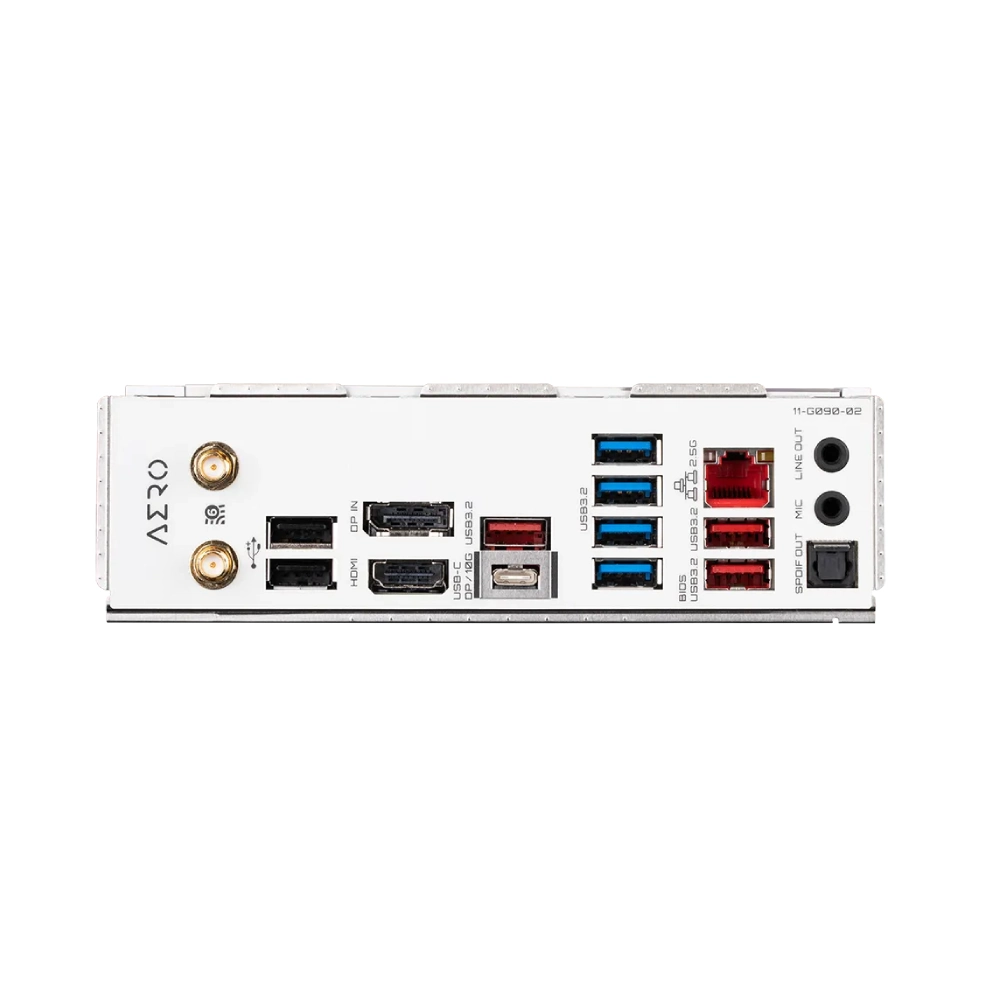

Back Panel

2x SMA antenna, 2x USB 2.0, 3x USB 3.2 Gen 2 Type-A (red) 1x USB Type-C® (DP/Gen 2), 4x USB 3.2 Gen 1 1x HDMI, 1x DisplayPort In, 1x RJ-45, 2x audio jacks, 1x optical S/PDIF

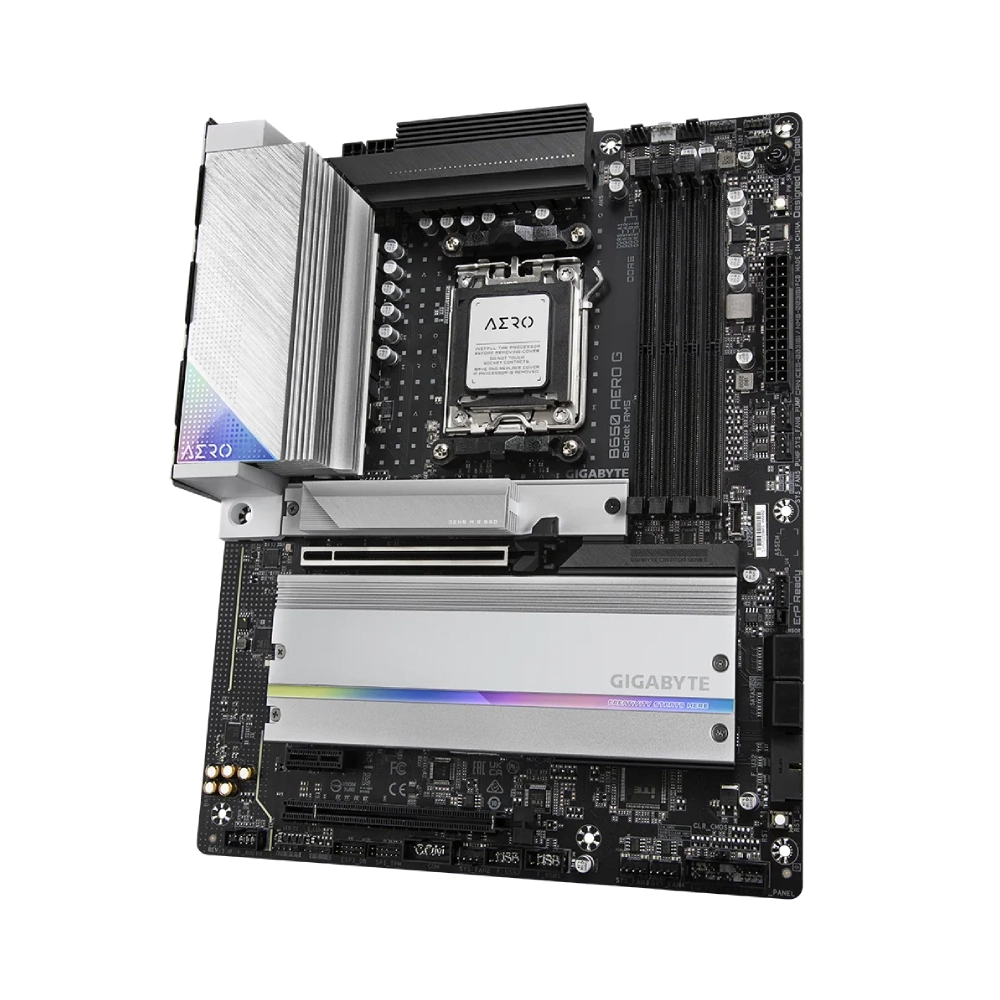

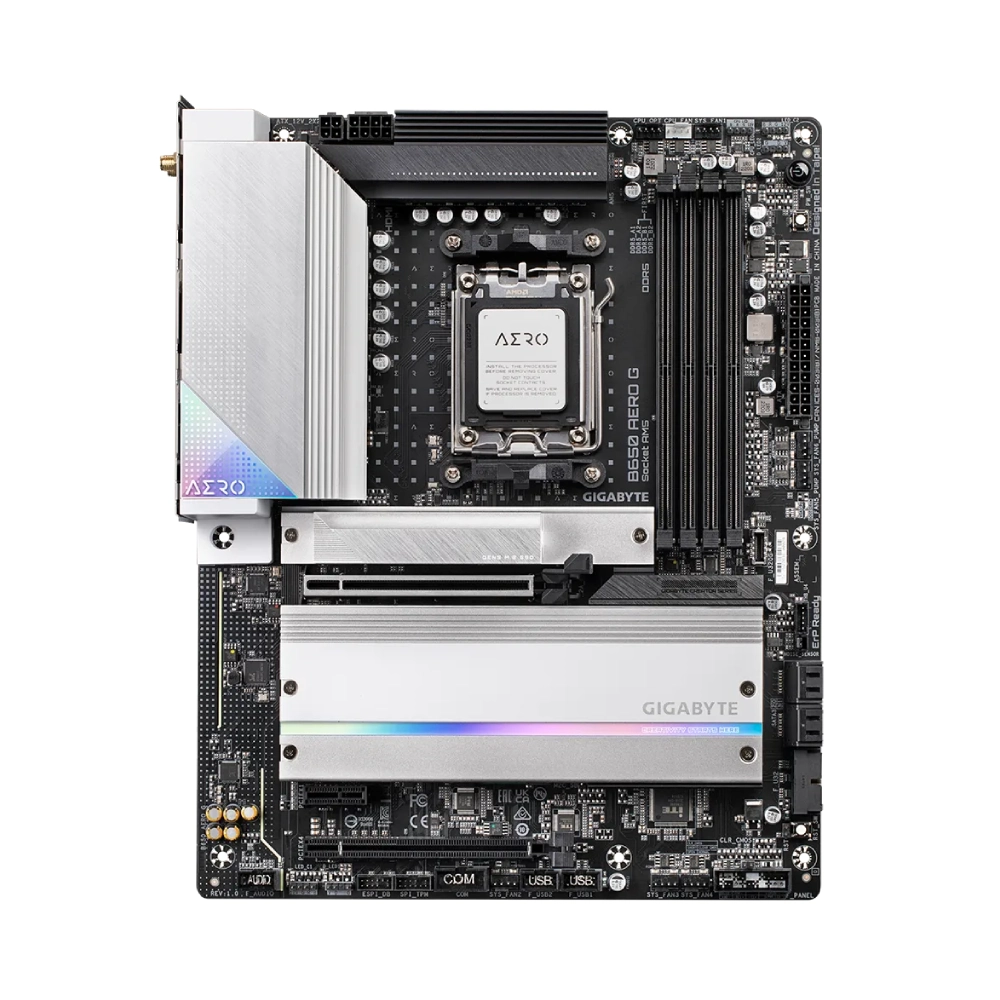

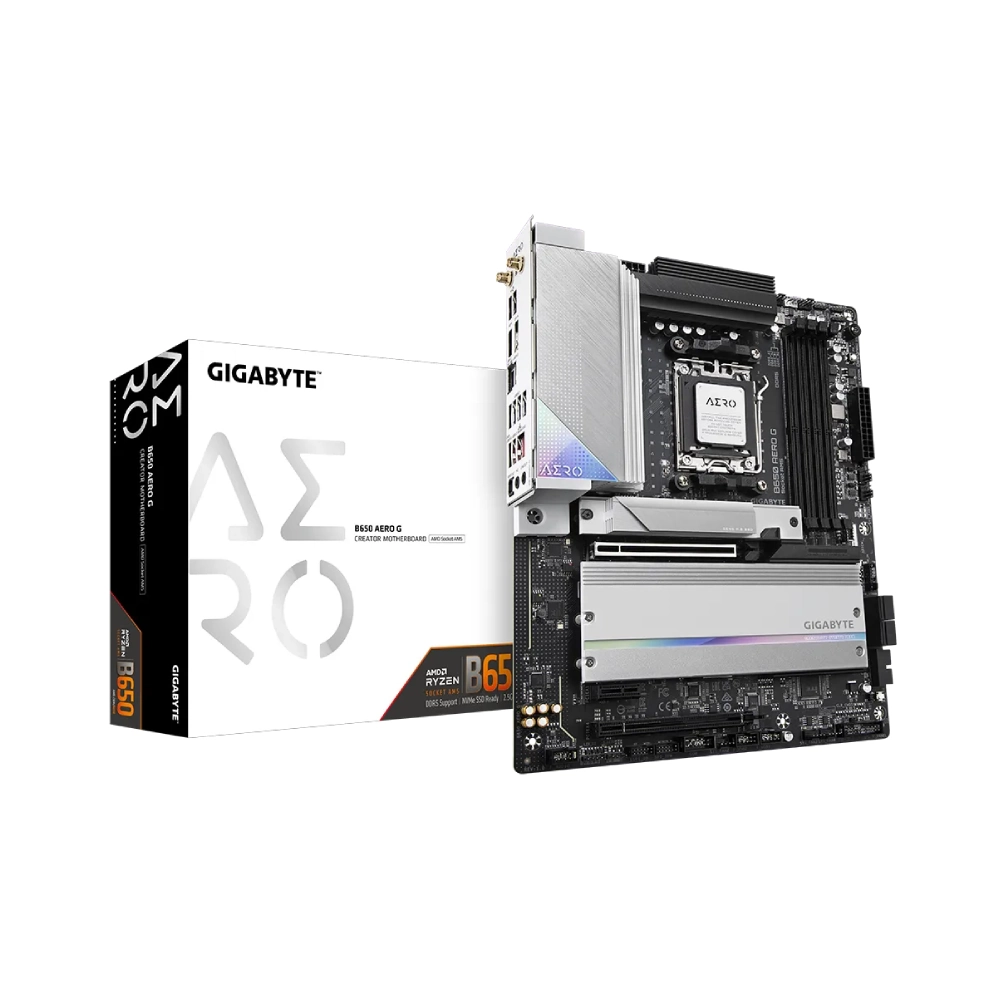

Gigabyte Motherboard B650 Aero G WIFI DDR4 For AMD
