- Feature
- Description
- CPU Support
- AMD AM4 Socket, Ryzen 5000/4000G/3000 Series
- Chipset
- AMD B550
- Memory
- 4 x DDR4 DIMM, up to 128GB, Dual Channel, XMP, ECC & non-ECC support
- Graphics
- 1 x HDMI 2.1, 1 x DisplayPort 1.4, Max 5120x2880@60Hz, Shared 16GB
- Audio
- Realtek ALC1220, HD Audio, DSD, 2/4/5.1/7.1 Channel
- LAN
- Realtek GbE LAN (10/100/1000 Mbps)
- Wireless
- Wi-Fi 6 (802.11ax), 2.4/5GHz, Bluetooth 5.3
- Expansion Slots
- 1 x PCIe x16 (4.0/3.0), 1 x PCIe x16 (x4), 1 x PCIe x1
- Storage
- 2 x M.2 (PCIe 4.0/3.0 & 3.0), 4 x SATA 6Gb/s, RAID 0/1/10
- USB
- Rear: 4 x USB 3.2 Gen1, 2 x USB 2.0; Internal: USB Type-C, USB 3.2 Gen1, USB 2.0
- Internal I/O
- 24-pin ATX, 8-pin ATX 12V, CPU/SYS fan, RGB & ARGB headers, TPM, Q-Flash Plus

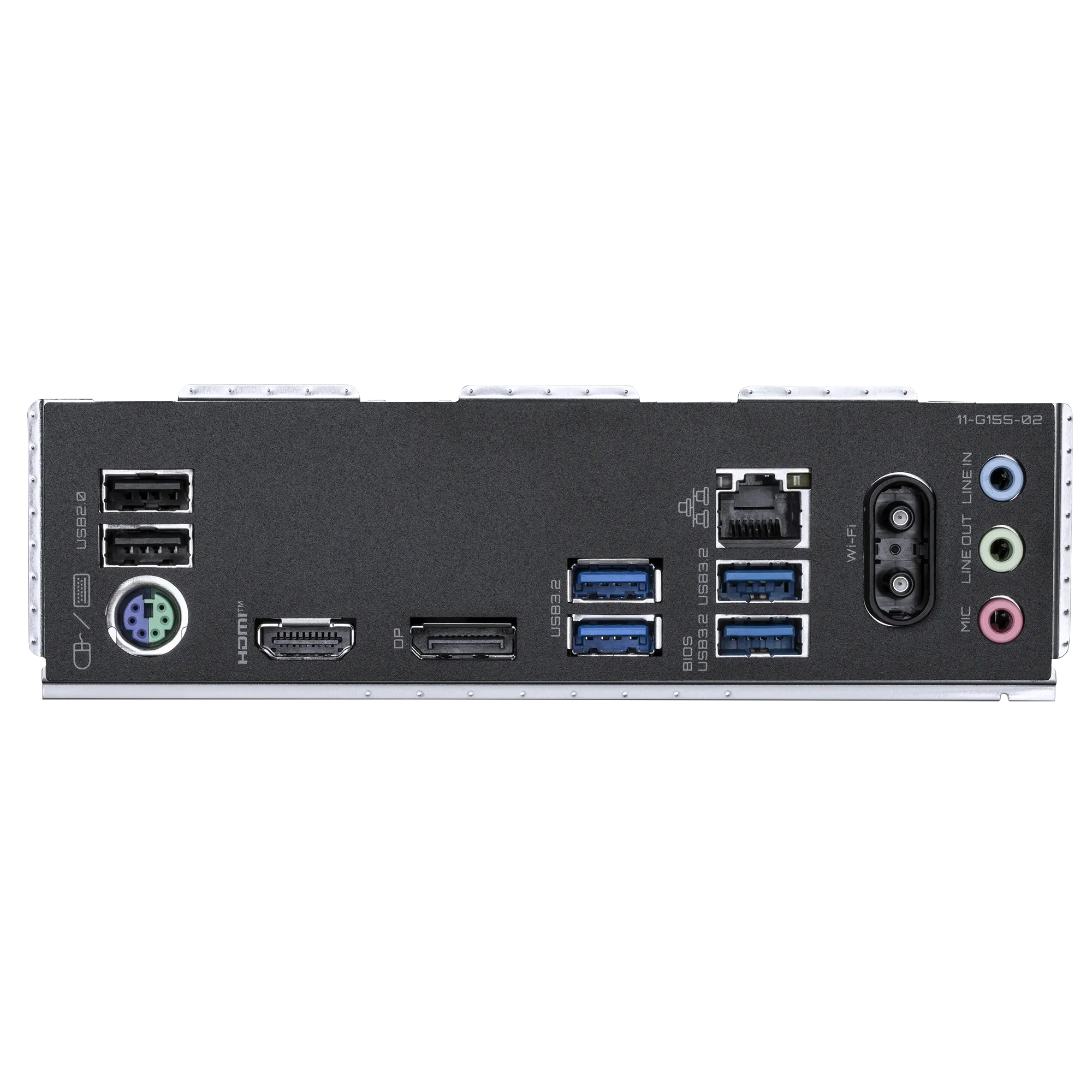

- Back Panel
- 2 x USB 2.0, 4 x USB 3.2 Gen1, HDMI, DP, RJ-45, WiFi Antenna, 3 x Audio Jacks, PS/2
- BIOS
- 128 Mbit Flash, AMI UEFI BIOS, Q-Flash & Q-Flash Plus
- Special Features
- RGB Fusion, APP Center, EasyTune, Smart Backup, System Info Viewer
- OS Support
- Windows 11/10 64-bit
- Form Factor
- Micro ATX, 24.4cm x 24.4cm
