- Component
- Details
- CPU Support
- AMD Ryzen™ 5000/4000/3000 Series & G-Series Processors (Socket AM4)
- Chipset
- AMD B550
- Memory
- 4x DDR4 DIMM, up to 128 GB, up to DDR4 4733(O.C.) MHz, ECC/Non-ECC, Dual Channel, XMP supported
- Onboard Graphics
- 1x DVI-D (1920x1200@60Hz) 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3, HDR) Max shared memory: 16 GB
- Audio
- Realtek® Audio CODEC, High Definition 7.1-channel Audio, S/PDIF supported
- LAN
- Realtek® GbE LAN (10/100/1000 Mbps)
- Wi-Fi / Bluetooth
- Realtek® RTL8852CE, Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.3
- PCIe Slots
- 1x PCIe x16 (CPU, PCIe 4.0 or 3.0 depending on CPU) 1x PCIe x16 (x4 mode, PCIe 3.0) 1x PCIe x1 (PCIe 3.0)
- Storage
- 2x M.2 (PCIe/SATA - varies by CPU) 4x SATA 6Gb/s RAID 0, 1, 10 support
- USB Ports
- Back: 4x USB 3.2 Gen 1, 4x USB 2.0 Internal: 2x USB 3.2 Gen 1 header, 1x USB 2.0 header
- Internal Connectors
- ATX 24-pin, CPU 8-pin, 2x M.2, 4x SATA, CPU/System fan headers, RGB/ARGB headers, TPM, Serial, Q-Flash Plus, Audio, USB headers

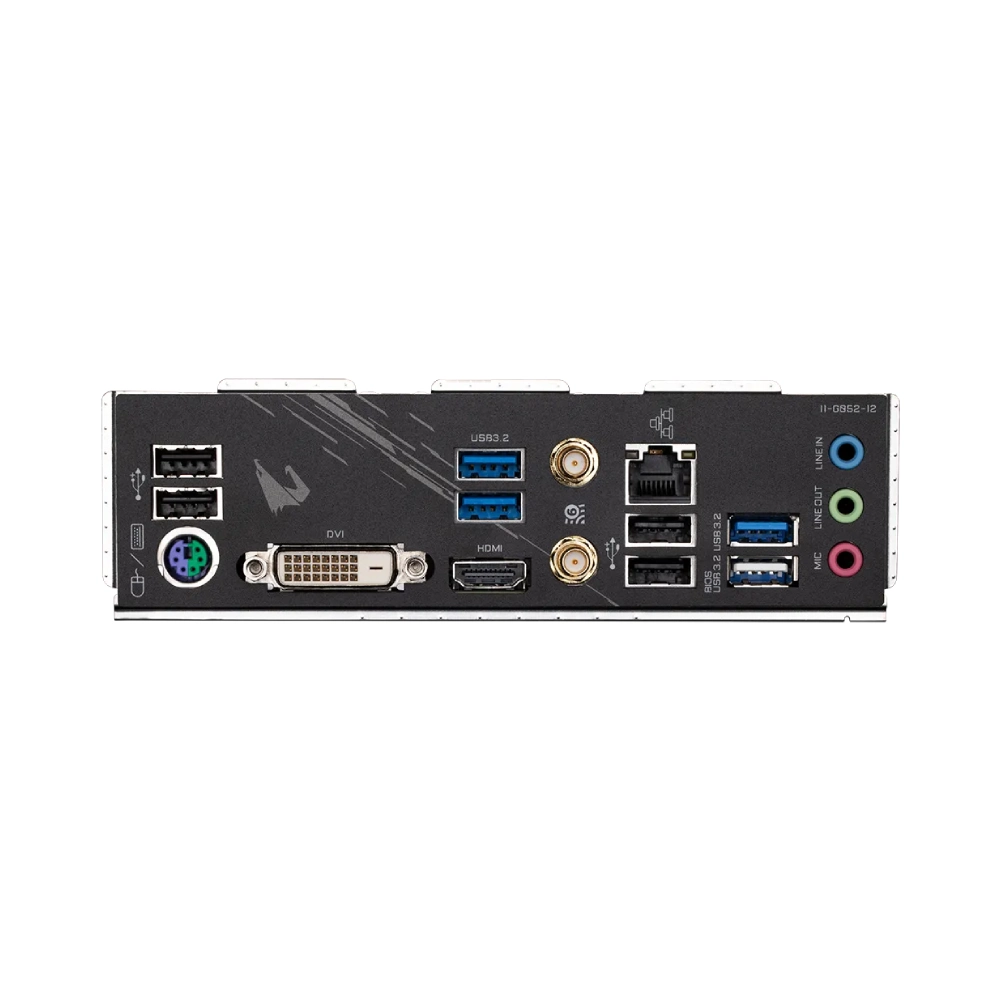

- Back Panel
- PS/2, DVI-D, HDMI, 2x SMA Antenna, 4x USB 3.2, 4x USB 2.0, RJ-45, 3x Audio jacks
