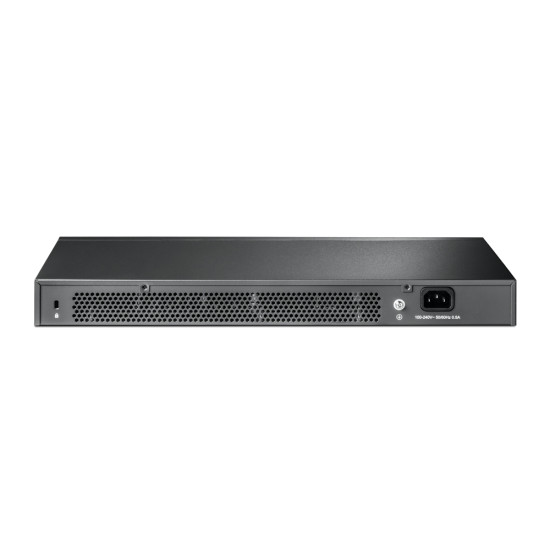

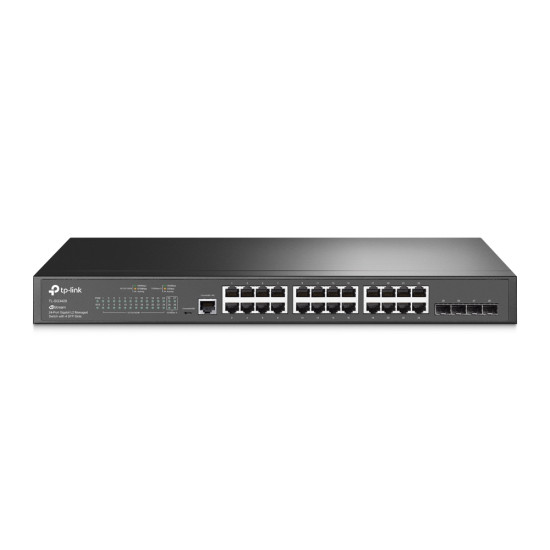

TP-Link Omada 24 Port Gigabit Lan L2+ Managed Switch with 4 Giga SFP Ports TL-SG3428
- Product ID: A0141
- Item CD: TLGCM
- Model: TL-SG3428
- Warranty: 3 Year From Tplink Service Center
- Product URL: View Product
₹10,816
In StockEx Tax: ₹10,816
MRP: ₹22,999
Available Options
For Any Query : 78498 31942
| Hardware Features | |
|---|---|
| Interface | 24× 10/100/1000 Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 19.22 W (110 V/60 Hz) |
| Max Heat Dissipation | 65.58 BTU/h (110 V/60 Hz) |
| Performance | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9 KB |
| Software Features | |
| Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow-based Rating Limiting), and more |
| L3 Features | 16 IPv4/IPv6 Interfaces, Static Routing, Static ARP, Proxy ARP, DHCP Server/Relay, Static IPv6 Routing, and more |
| L2 Features | Link Aggregation, Spanning Tree Protocol, Flow Control, Mirroring, and more |
| Multicast | Supports 511 IGMP groups, IGMP Snooping, IGMP Authentication, MLD Snooping, Multicast Filtering, and more |
| Advanced Features | Support for Omada Controllers (OC200/OC300), Zero-Touch Provisioning, Automatic Device Discovery, and more |
| VLAN | Max 4K VLAN Groups, 802.1q Tagged VLAN, VLAN VPN, Voice VLAN, and more |
| Access Control List | Time-based ACL, MAC ACL, IP ACL, IPv6 ACL, Packet Content ACL, and more |
| Security | IP-MAC-Port Binding, DoS Defend, Port Security, Broadcast/Multicast/Unicast Storm Control, 802.1X, and more |
| IPv6 Features | IPv6 Dual IPv4/IPv6, Static IPv6 Routing, IPv6 ACL, IPv6 SSH, IPv6 SNMP, and more |
| Management Features | |
| Management Options | Web-based GUI, CLI (console port, telnet), SNMPv1/v2c/v3, DHCP/BOOTP Client, Cable Diagnostics, System Log, Password Recovery, and more |
| Omada App Support | Yes, through Omada Cloud-Based Controller (OC200/OC300), Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controllers (OC200/OC300), Omada Software Controller |
| Cloud Access | Yes, through Omada Cloud-Based Controller |
| Other Information | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG3428 Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
