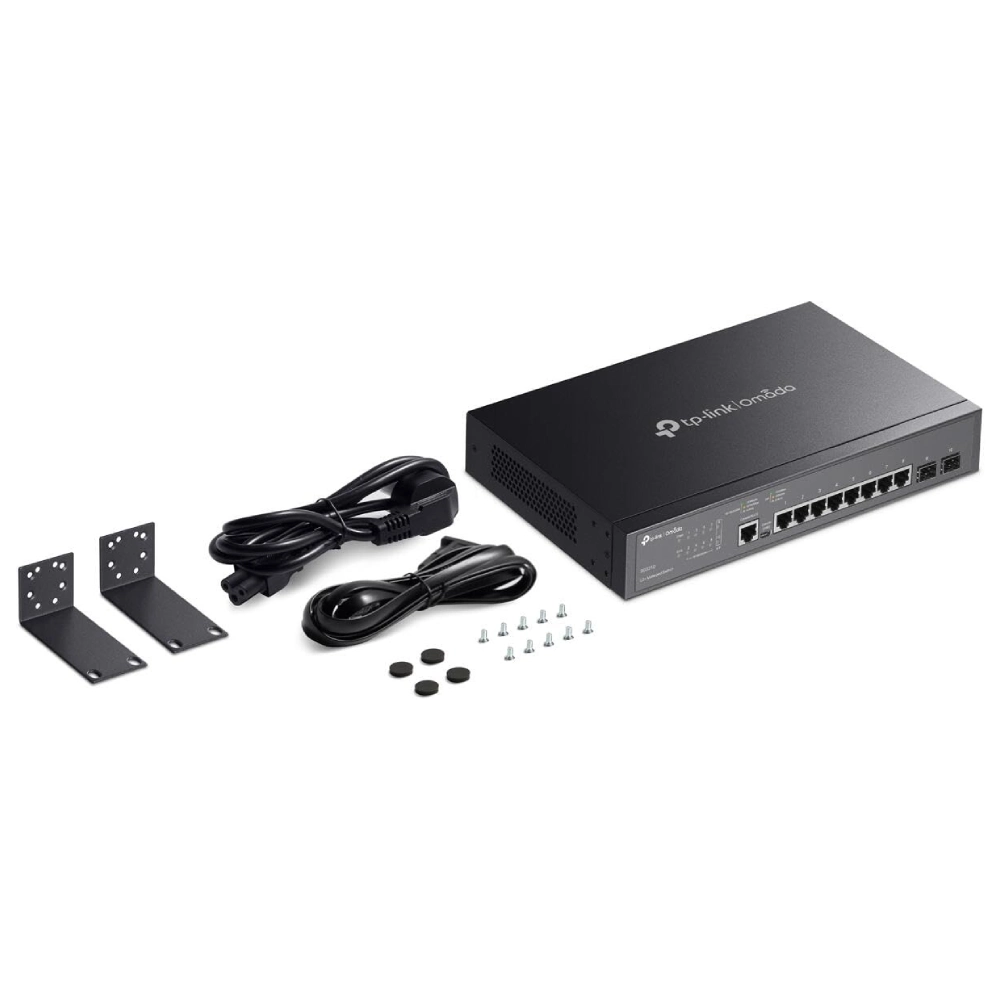

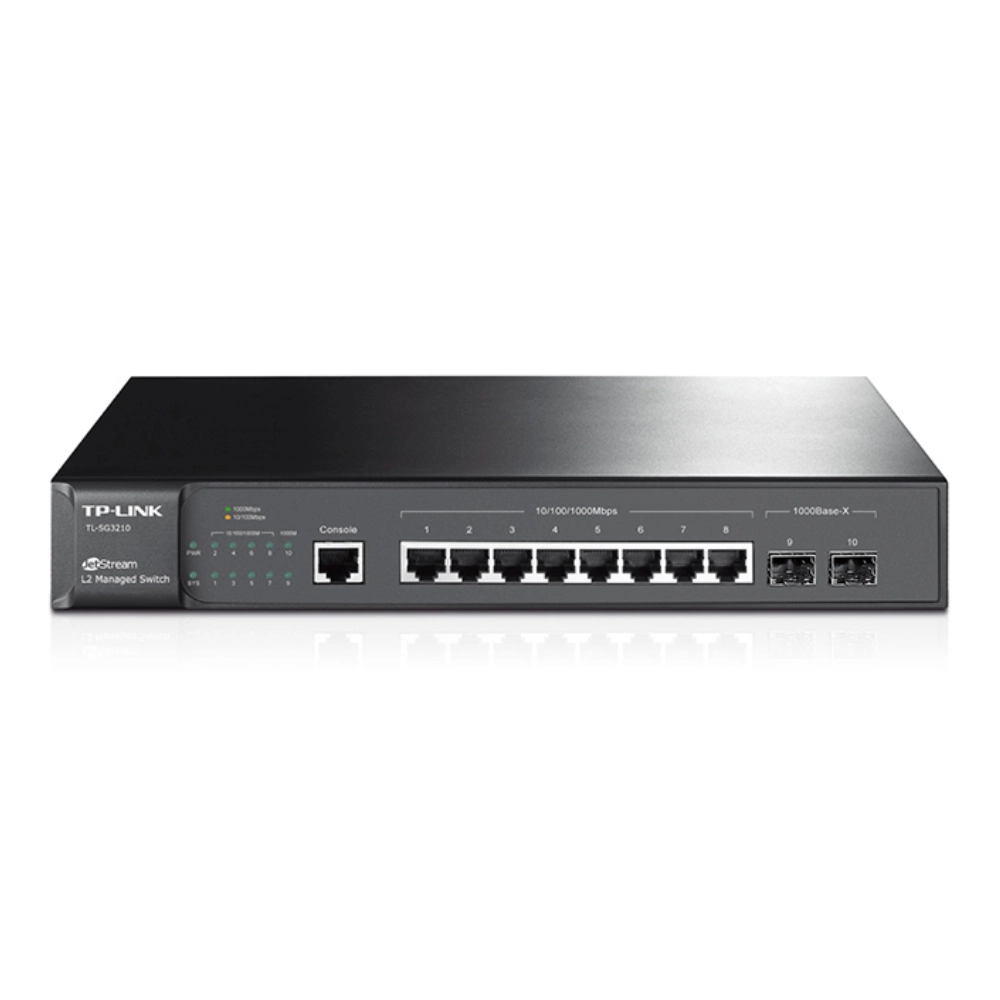

TP-Link Omada Access 8-Port Gigabit Switch with 2 SFP Slots (TL-SG3210)

Product ID: A0328
Item CD: 13EPKW0
Model: TL-SG3210
Warranty Period: 3 Year From Tplink Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

Choose Configuration

Channel

For Any Query : 78498 31942

Specifications

Category: Details
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface: 8 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 x 1000Mbps SFP Slots, 1 x Console Port
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (max 100m); 1000BASE-X: MMF, SMF
Fan Quantity: Fanless
Power Supply: 100～240VAC, 50/60Hz
Power Consumption: Maximum: 10.7W (220V/50Hz)
Dimensions (W x D x H): 11.6 x 7.9 x 1.7 in (294 x 200 x 44 mm)
Category: Details
Bandwidth/Backplane: 20Gbps
Packet Forwarding Rate: 14.9Mpps
MAC Address Table: 8k
Packet Buffer Memory: 4Mb
Jumbo Frame: 10240 Bytes
Category: Details
Quality of Service: Support 802.1p CoS/DSCP priority, 4 priority queues, Queue scheduling: SP, WRR, SP+WRR, Port/Flow-based Rate Limiting, Voice VLAN
L2 Features: IGMP Snooping V1/V2/V3, 802.3ad LACP (8 groups, 8 ports per group), Spanning Tree (STP/RSTP/MSTP), Port isolation, BPDU filtering/guard, TC/Root protect, Loopback detection, 802.3x Flow Control
VLAN: Supports up to 4K VLANs, Port/MAC/Protocol-based VLAN, GARP/GVRP, Management VLAN configuration
Access Control List: L2～L4 package filtering based on MAC, IP, TCP/UDP, 802.1p, DSCP, protocol, VLAN ID; Time Range Based
Security: IP-MAC-Port-VID Binding, IEEE 802.1X, Radius, Guest VLAN, DoS Defence, Dynamic ARP Inspection, SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Storm Control
IPv6: Dual IPv4/IPv6 stack, MLD Snooping, ND, MTU discovery, ICMPv6, TCPv6/UDPv6
IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP
Management: Web-based GUI and CLI management, SNMP v1/v2c/v3, RMON, DHCP/BOOTP Client, DHCP Snooping, CPU Monitoring, Port Mirroring, SNTP, NDP/NTDP, Firmware Upgrade (TFTP & Web), System Diagnose: VCT, SYSLOG & Public MIBs
