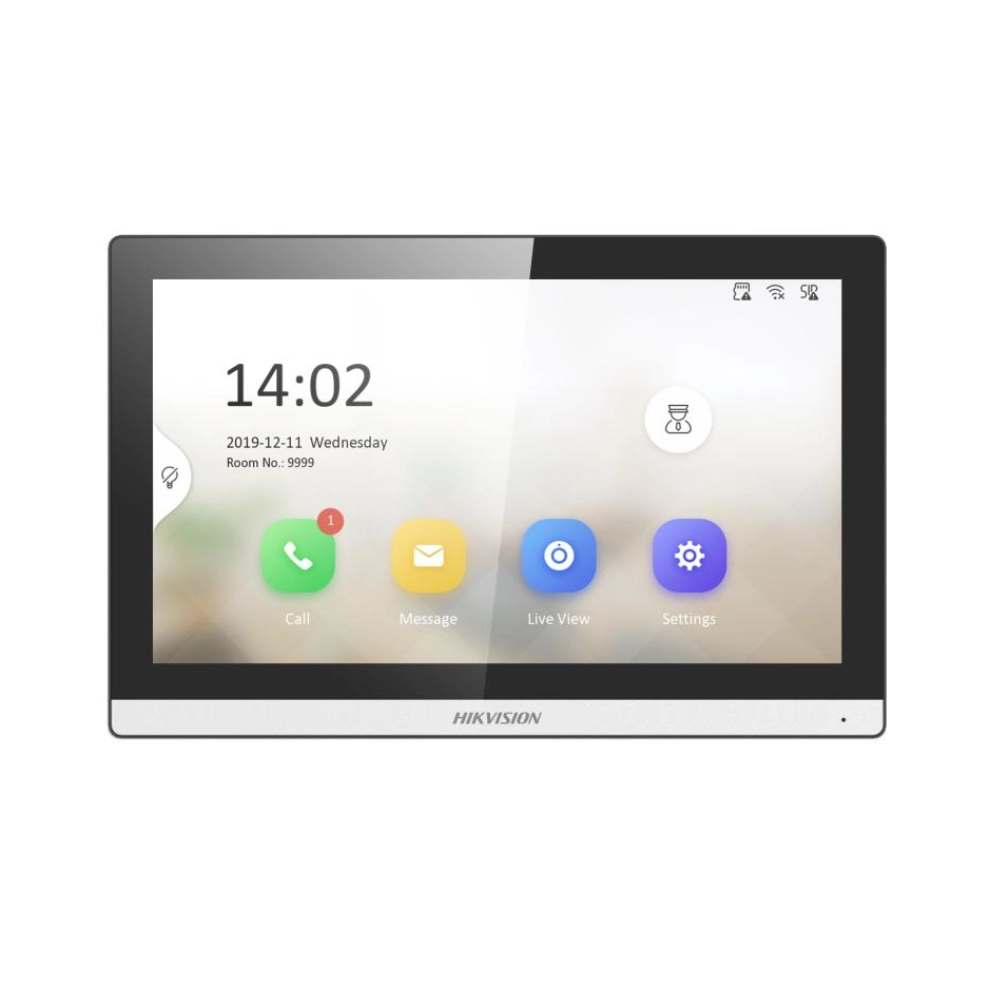

Hikvision IP Video Door Phone (VDP) Indoor Unit DS-KH6350-WTE1

Product ID: P268
Item CD: 00OYZGG
Model: DS-KH6350-WTE1
Warranty Period: 2 Year from HIKVISION Service Center
Service Center List: View
Product URL: View Product
DATASHEET: Click here

Call For Bulk Qty - 83028 85193

Specifications

Operating System: Linux
ROM: 32 MB
RAM: 128 MB
Processor: Embedded high-performance processor
Screen Size: 7-inch
Operation Method: Capacitive touch screen
Type: Colorful TFT
Resolution: 1024 × 600
Lens: /
Resolution: /
FOV: /
Wide Dynamic Range (WDR): /
Video Compression Standard: /
Focal Length: /
Audio Input: 1 built-in omnidirectional microphone
Audio Compression Standard: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio Output: 1 built-in loudspeaker
Audio Compression Bitrate: 64 Kbps
Audio Quality: Noise suppression and echo cancellation
Volume Adjustment: Adjustable
Message Capacity: TF card inserted: 200 captured pictures, 200 alarm records; Without TF card: 2 MB RAM for picture storage, 200 alarm records
Notice Capacity: 200
Linked Indoor Extensions Capacity: 16
Linked Doorphone Capacity: 17
Network Protocol: TCP/IP, SIP, RTSP
Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth: /
3G/4G: /
Zigbee: /
Alarm Input: 8
Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
TAMPER: /
RS-485: 1 RS-485 (Half duplex)
USB: /
TF Card: Support TF card, up to 128 G
Alarm Output: 2
Lock Control: 2 relays, Max. 30 VDC 0.3 A
Button: /
Installation: Wall mounting, table mounting
Indicator: /
Weight: Net weight: 355 g (0.8 lb), Gross weight: 683 g (1.5 lb)
Protective Level: /
Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
Working Humidity: 10% to 90% (no-condensing)
Dimension (W × H × D): 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
Battery: /
Application Environment: Indoor
Power Consumption: ≤ 5 W
Language: English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Chinese Traditional
