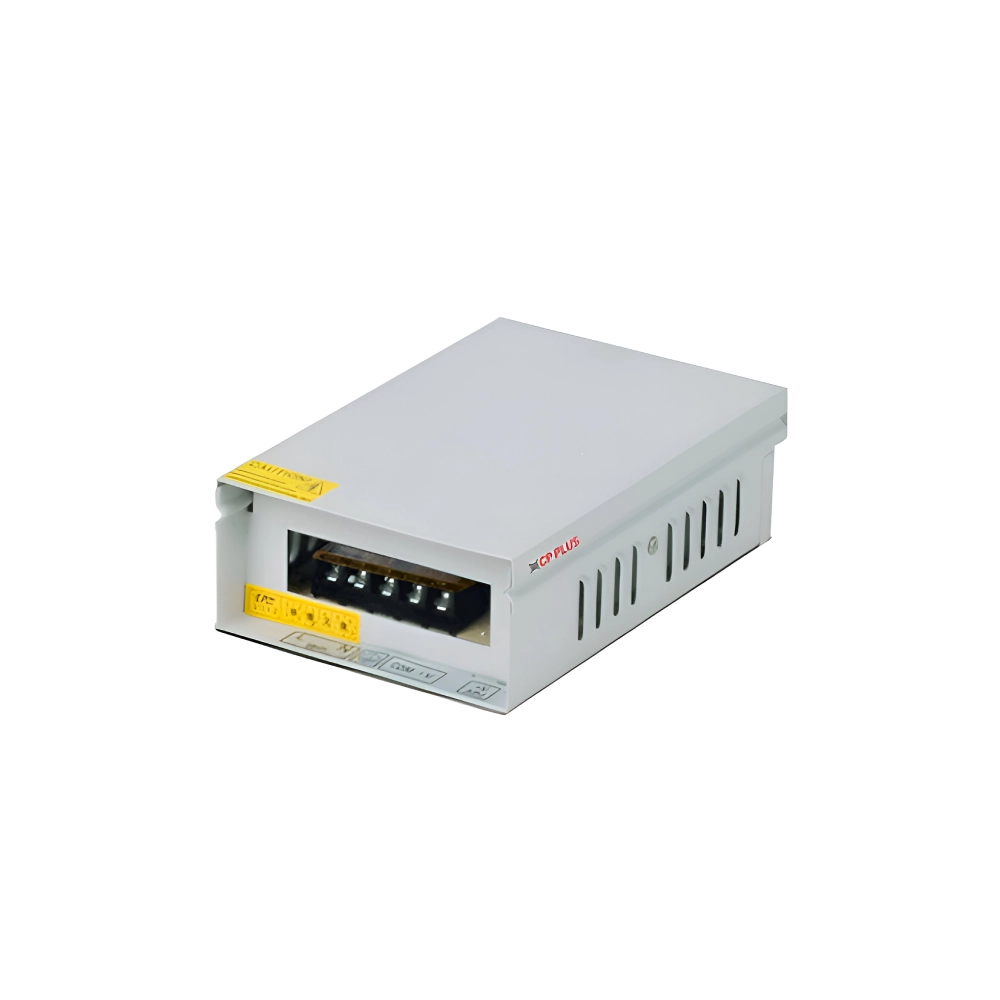

CP-Plus CCTV Power Supply Premium 8ch Metal 12v/10a (MD100P)

Name: CP-Plus CCTV Power Supply Premium 8ch Metal 12v/10a (MD100P)
Brand: CP PLUS
SKU: 089BJEO
Price: 674 INR
Availability: InStock

Product IDP2097

Item CD089BJEO

ModelCP-DPS-MD100P-12D

Warranty Period2 Years

Service Center ListView Product URLView Product Warranty ClaimClick here DATASHEETClick here

₹674

In Stock

Channel

4ch 16ch 16ch

Feature	Specification
Input Voltage	180~264VAC
Output Voltage	12V DC
Current Range	0~10A
Rated Power	120W
Ripple & Noise (max.)	100mVp-p
Voltage Adjustment Range	11.4~13.2V
Line Regulation	1.0%
Voltage Tolerance	2.0%
Setup Rise Time	600ms, 30ms at full load
Hold Up Time (Typ.)	13ms at full load
Load Regulation	5.0%
Temperature Coefficient	0.03%/°C (0~50°C)
Frequency Range	47~63Hz
Efficiency (Typ.)	84%
AC Current (Typ.)	5A/115VAC, 3A/230VAC
Inrush Current (Typ.)	20A/115VAC, 40A/230VAC
Over Load	110~200% rated output power, Protection type: Shut down O/P, re-power
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH
Working Humidity	20~90% RH Non-condensing
Vibration	10 ~ 500Hz, 3G 10min./1 cycle, 60min.each along X, Y, Z axes
Dimension	187(L) x 103(W) x 52mm(H)
Storage Temperature	-20~+85°C, 10~95%RH
Working Temperature	-20~+40°C
Withstand Voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
