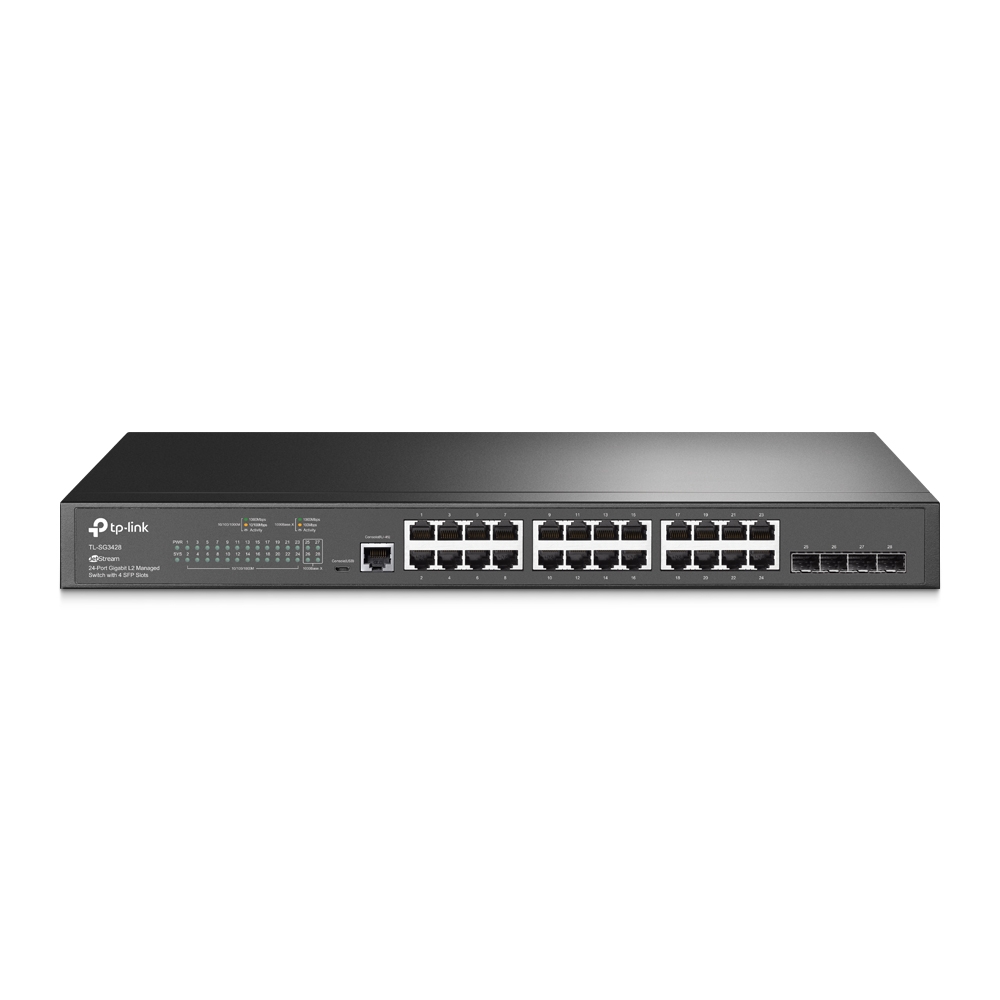

TP-Link Omada 24 Port Gigabit Lan L2+ Managed Switch with 4 Giga SFP Ports TL-SG3428

Name: TP-Link Omada 24 Port Gigabit Lan L2+ Managed Switch with 4 Giga SFP Ports TL-SG3428
Brand: TP-Link SMB
SKU: 12HXNUO
Price: 11536 INR
Availability: InStock

Product IDA0141

Item CD12HXNUO

ModelTL-SG3428

Warranty Period3 Year From Tplink Service Center

Service Center ListView Product URLView Product Product RegistrationClick here Warranty ClaimClick here Technical SupportClick here InstallationClick here

₹11,536

In Stock

Channel

8 Port

Interface	24× 10/100/1000 Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
Fan Quantity	Fanless
Power Supply	100-240 V AC~50/60 Hz
Dimensions (W x D x H)	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	19.22 W (110 V/60 Hz)
Max Heat Dissipation	65.58 BTU/h (110 V/60 Hz)
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	8K
Jumbo Frame	9 KB
Quality of Service	8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow-based Rating Limiting), and more
L3 Features	16 IPv4/IPv6 Interfaces, Static Routing, Static ARP, Proxy ARP, DHCP Server/Relay, Static IPv6 Routing, and more
L2 Features	Link Aggregation, Spanning Tree Protocol, Flow Control, Mirroring, and more
Multicast	Supports 511 IGMP groups, IGMP Snooping, IGMP Authentication, MLD Snooping, Multicast Filtering, and more
Advanced Features	Support for Omada Controllers (OC200/OC300), Zero-Touch Provisioning, Automatic Device Discovery, and more
VLAN	Max 4K VLAN Groups, 802.1q Tagged VLAN, VLAN VPN, Voice VLAN, and more
Access Control List	Time-based ACL, MAC ACL, IP ACL, IPv6 ACL, Packet Content ACL, and more
Security	IP-MAC-Port Binding, DoS Defend, Port Security, Broadcast/Multicast/Unicast Storm Control, 802.1X, and more
IPv6 Features	IPv6 Dual IPv4/IPv6, Static IPv6 Routing, IPv6 ACL, IPv6 SSH, IPv6 SNMP, and more
Management Options	Web-based GUI, CLI (console port, telnet), SNMPv1/v2c/v3, DHCP/BOOTP Client, Cable Diagnostics, System Log, Password Recovery, and more
Omada App Support	Yes, through Omada Cloud-Based Controller (OC200/OC300), Omada Software Controller
Centralized Management	Omada Cloud-Based Controller, Omada Hardware Controllers (OC200/OC300), Omada Software Controller
Cloud Access	Yes, through Omada Cloud-Based Controller
Certification	CE, FCC, RoHS
Package Contents	TL-SG3428 Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
