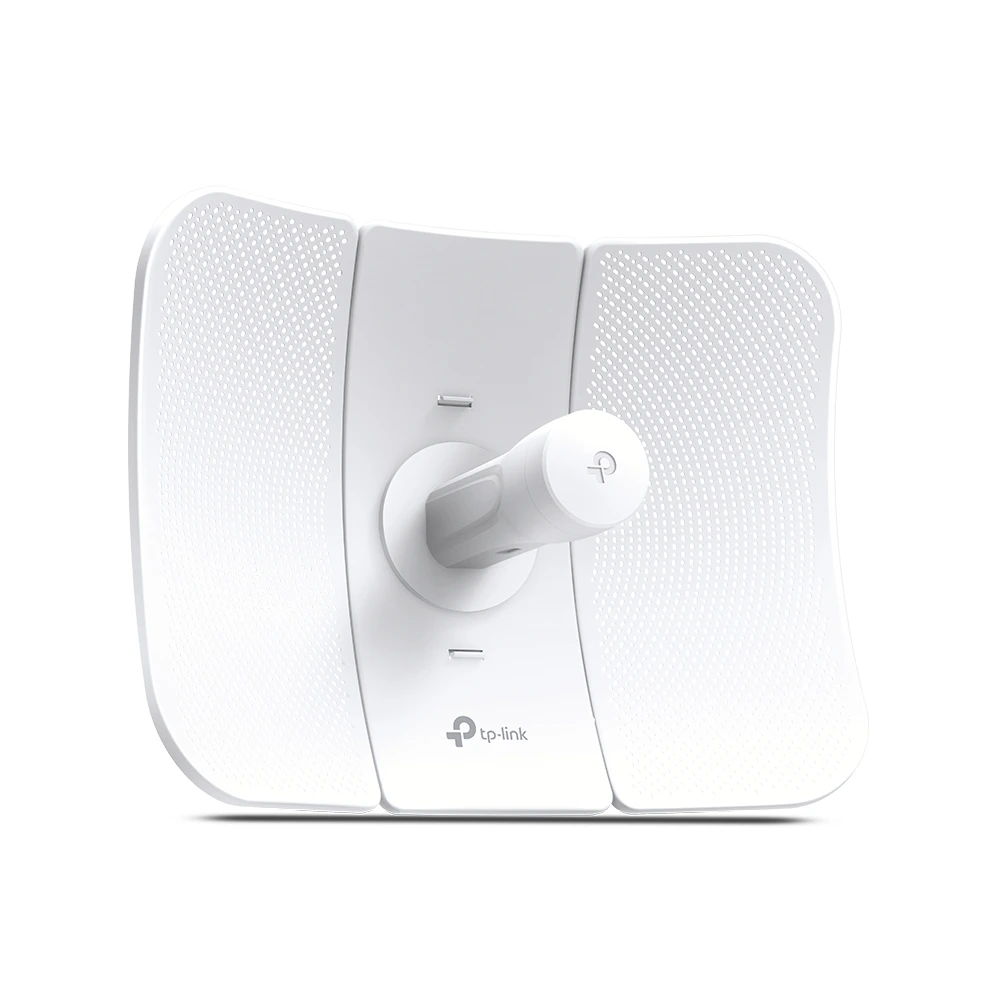

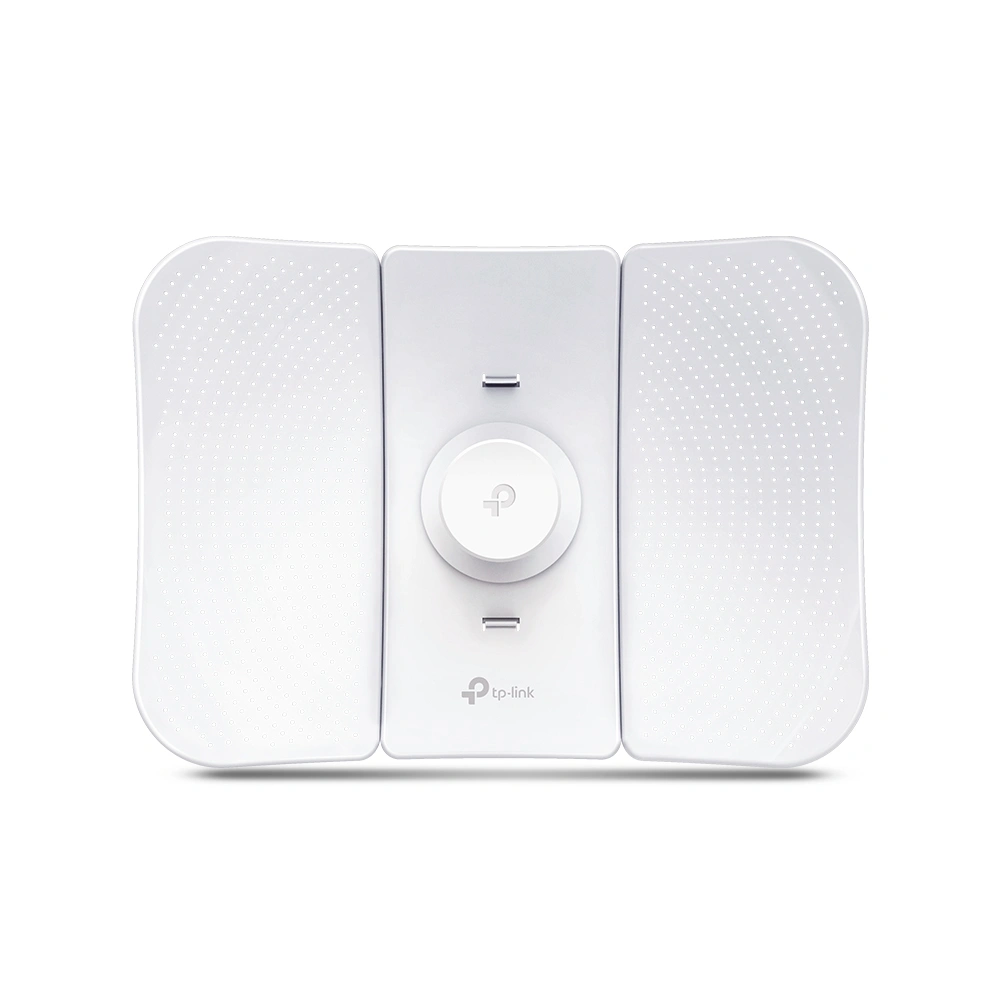

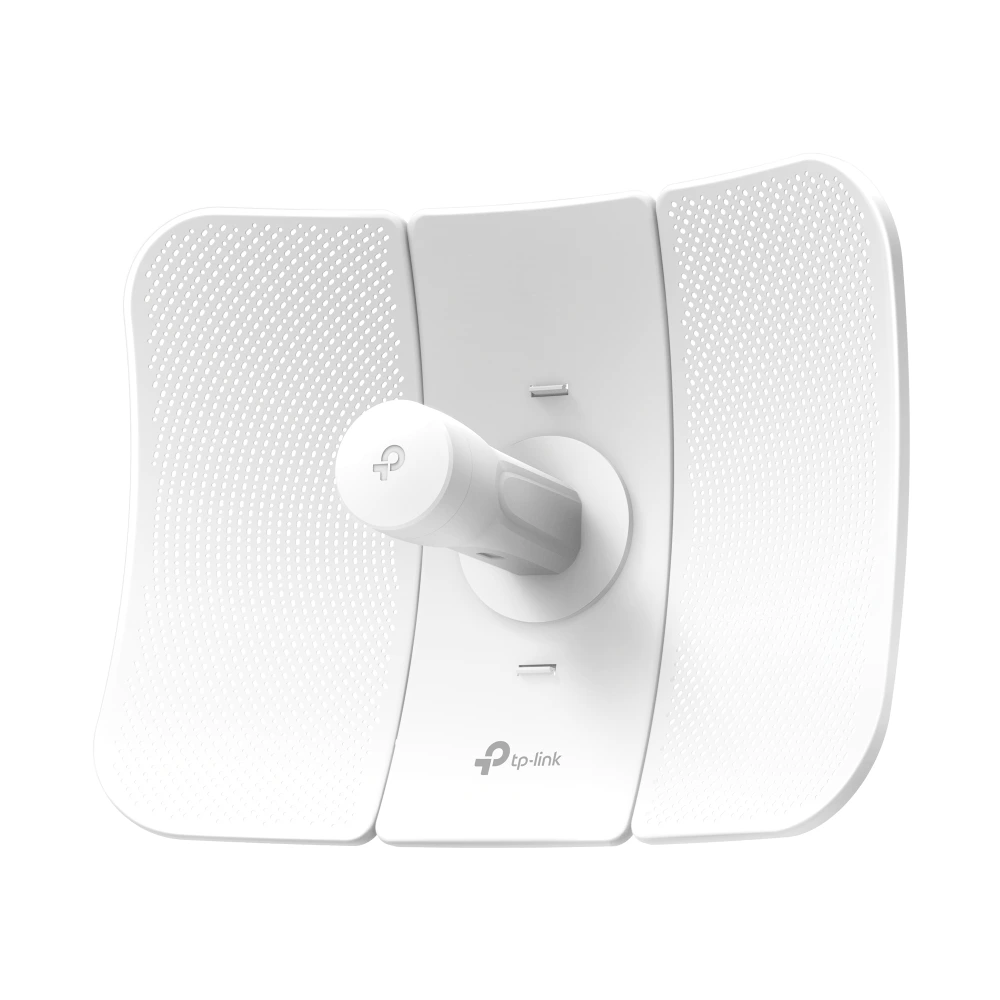

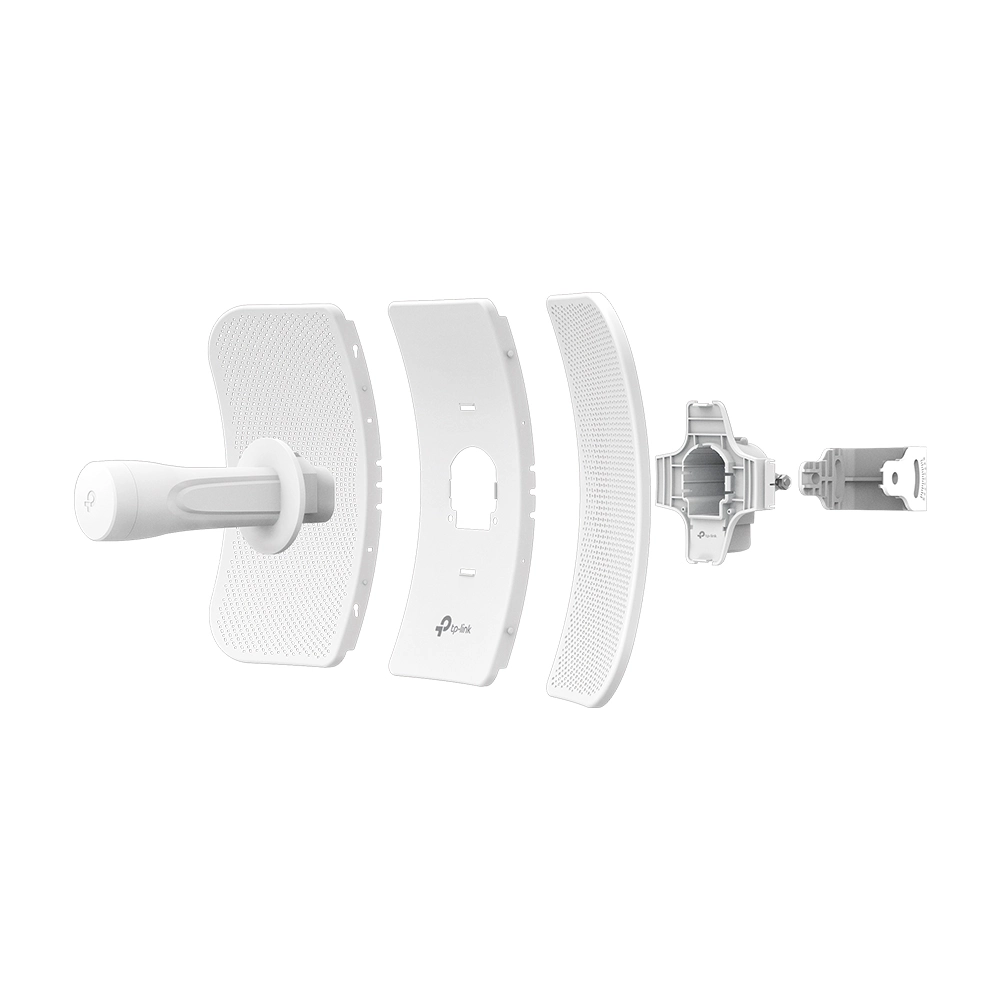

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor Access Point to Point (P2P)

Product ID: A0041
Item CD: 11Y43CW
Model: CPE710
Master Box: 10
Warranty Period: 3 Years From TPLINK Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

For Any Query : 78498 31942

Specifications

Feature: Description
Processor: Qualcomm 750MHz CPU, MIPS 74Kc
Memory: 128 MB DDR2 RAM, 16 MB Flash
Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE) 1 Reset Button
Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC
Dimensions (W x D x H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain: 23 dBi
Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)
Protection: 15 KV ESD Protection 6 KV Lightning Protection
Enclosure: Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
Feature: Description
Wireless Standards: IEEE 802.11a/n/ac
Wireless Speeds: Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency: 5.15–5.85 GHz
Transmit Power: Max. 27 dBm (Adjustable power by 1dBm)
Feature: Description
Network Configuration: WAN: Static/Dynamic/PPPoE LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations: Selectable Channel Width: 20/40/80 MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia Long Range PtP
Management: Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment
System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications
Feature: Description
Dimensions (W x D x H): 85.8 × 43.9 × 29.7 mm
Interfaces: 1 AC Jack with Earth Ground 1 × 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1 × 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button: Remote Reset Button
Power Status LEDs: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.5A Max +4, 5pins; -7, 8pins (Supports up to 60m Power over Ethernet)
Efficiency: >84.29%
Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
