- Category
- Feature
- Hardware Features
- Processor
- Memory
- 64MB DDR2 RAM, 8MB Flash

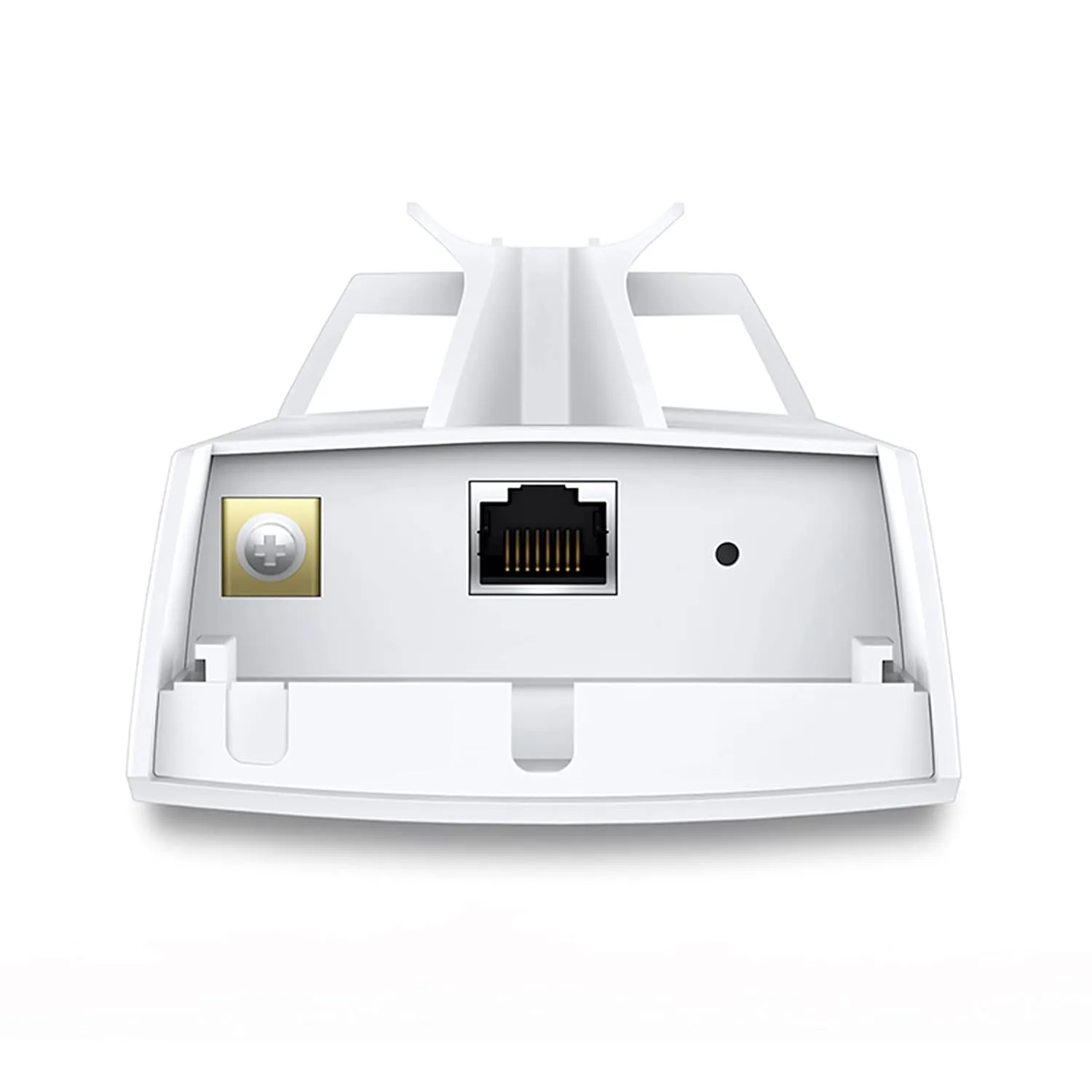

- Interface
- 1 10/100Mbps Shielded Ethernet Port (Passive PoE in), 1 Grounding Terminal, 1 Reset Button
- Power Supply
- Passive PoE via LAN0 (+4,5pins; -7,8pins), Voltage: 16-27VDC
- Power Consumption
- 10.5 Watts Max

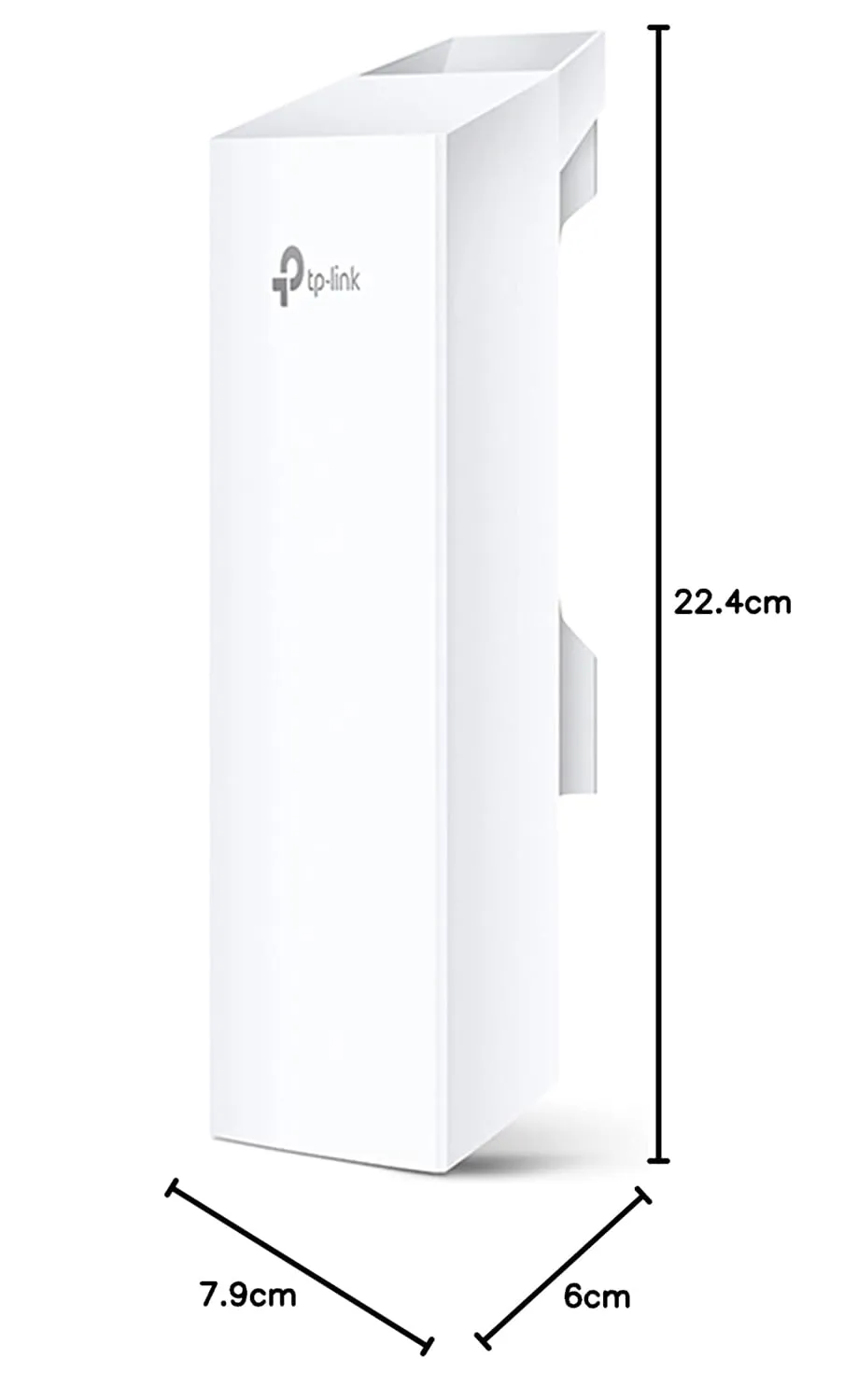

- Dimensions
- 8.8 x 3.1 x 2.4 in
- Antenna Type
- Built-in 13dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 45° (H-Plane) / 30° (E-Plane)
- Wireless Features
- Wireless Standards
- Proprietary Protocol
- TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds
- Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic)
- Frequency
- 5.15~5.85GHz
- Transmission Power
- 23dBm/200mw (Adjustable by 1dBm)
- Security
- WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP Encryption
- Advanced Wireless Features
- Pharos MAXtream TDMA Technology Selectable Channel Width (5/10/20/40MHz) Automatic Channel Selection Distance/ACK Timeout Setting
- Software Features
- Management
- System Log
- SNMP, Ping Watch Dog, Dynamic DDNS, SSH Server
- System Tools
- Spectrum Analyzer, Speed Test, Ping, Traceroute
- Optimizations
- Optimized IGMP Snooping/Proxy for multicast applications
- Signal Quality Indicators
- Signal Strength, Noise, Transmit CCQ, CPU/Memory Usage
- Multicast
- Hardware Watchdog
- Others
- Certifications
- Environment
- Operating Temp: -30°C to 70°C (-22℉ to 158℉), Storage Temp: -40°C to 70°C (-40℉ to 158℉)
- Humidity
- Operating: 10%~90% non-condensing, Storage: 5%~95% non-condensing
- Included Accessories
- Outdoor Wireless CPE, Passive PoE Adapter, Mounting Straps, Power Cord, Installation Guide
- System Requirements
- Google Chrome, Safari, Firefox for web GUI
