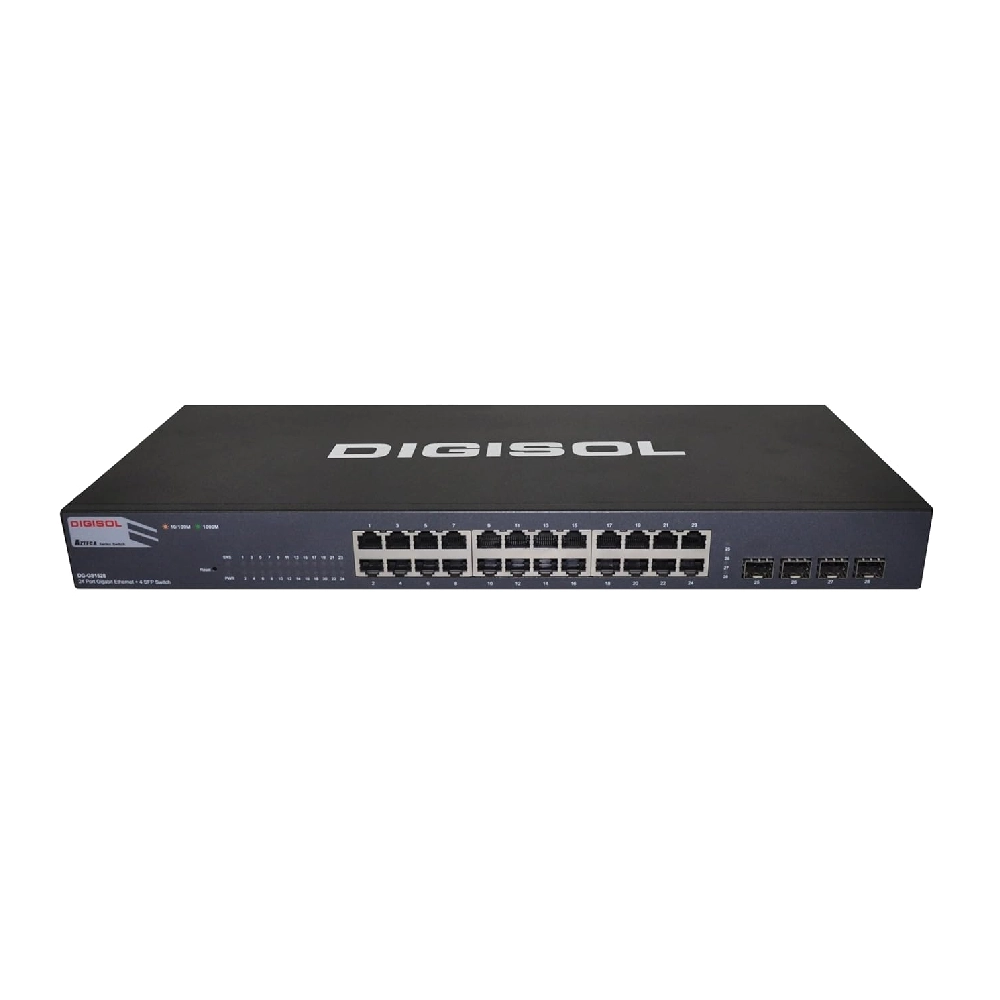

DIGISOL Desktop LAN Switch 24 Port Gigabit Ethernet Layer 2 Web managed Switch with 4 Gigabit SFP Ports (DG-GS1528)

Product ID: A2024
Item CD: 1ARVOCG
Model: DG-GS1528
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

Specifications

Physical Ports: • 24 × 10/100/1000 Base-T Ethernet Ports • 4 × Gigabit SFP Ports
Performance: • Switching Capacity: 56Gbps • MAC Address Table: 8K • Memory Per Unit: 2.4MB • Jumbo Frame: 10K
L2 Features: • Auto-negotiation for port speed and duplex mode • Spanning Tree Protocol (STP / RSTP / MSTP, max 16 instances) • Loopback Detection, BPDU Filter, BPDU Guard • IGMP Snooping v1/v2/v3, IGMP Querier, IGMP Proxy, MVR • VLANs: 256 IEEE 802.1q tag-based VLAN with 4K VLAN ID - Port Isolation (Multi-to-one), Port-Based VLAN - MAC Based VLAN, Voice VLAN, Guest VLAN • Link Aggregation: LACP (8 Groups, 8 Ports/Group), Static Trunk
QoS Features: • Queueing Mechanism: SP and WRR • Classifications based on COS, DSCP, IP Precedence • Each port supports 8 queues • LLDP • Rate Limit (Port Based) • Flow Control
Security: • MAC Address Binding • Broadcast Storm Control • IP and MAC ACL • RADIUS, AAA • Port Security, Protected Port • DoS Protection • DHCP Snooping, IP Source Guard
Management: • Port Mirroring, Traffic Statistics • IPv4 Web-based Management • Configuration Backup and Recovery • Management VLAN • SNMP v1/v2c/v3 • Telnet, SSH, HTTPS • RMON, SNTP • Ping, Traceroute • Dual Firmware Image • UDLD, EEE
