- Feature
- Description
- Auto MDI/MDIX
- Yes
- Control
- 802.3x Flow
- Dimensions
- 88 x 48 x 21.45 mm
- Energy Efficient Ethernet (EEE)
- Yes
- FAN
- Fanless
- Head-of-line (HOL) Blocking Prevention
- Yes

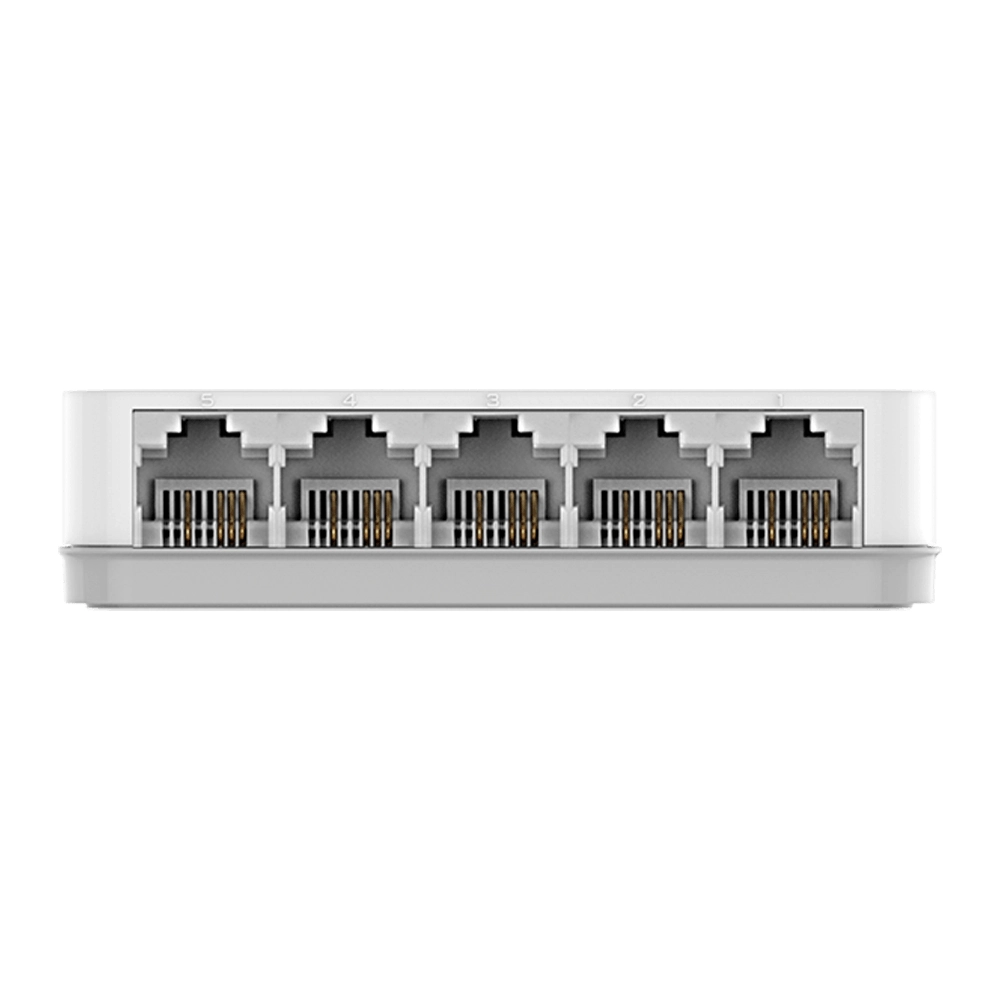

- Interfaces
- 5 x 100Base-TX
- Jumbo Frame
- 2048 Bytes
- MAC Address Table Size
- 2,000
- Max. Packet Forwarding Rate
- 0.74 Mpps
- Maximum Heat Dissipation
- 0.406 BTU/h
- Maximum Power Consumption
- 0.784 W
- MTBF
- 1,785,631 hours
- Operating Humidity
- 10% ~ 90% RH
- Operating Temperature
- 0 ~ 40 °C
- Packet Buffer Size
- 96 KBytes

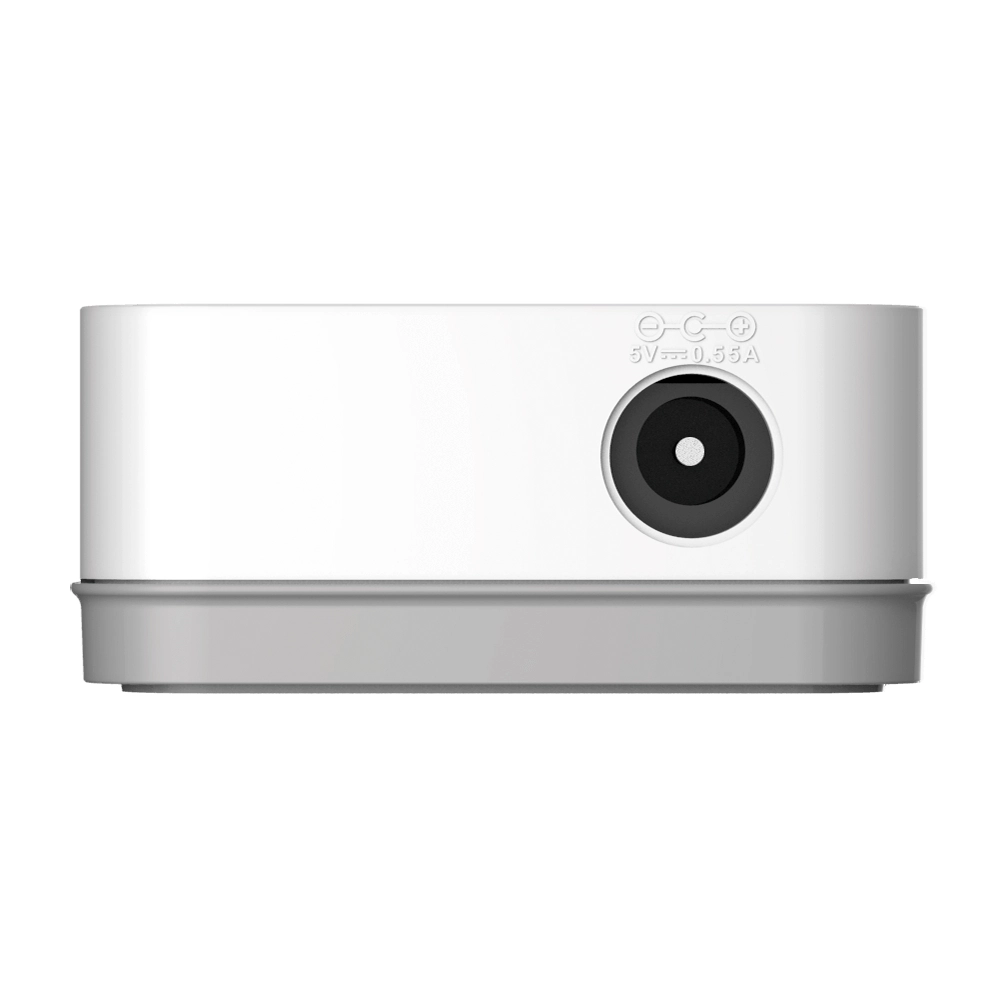

- Power Input
- DC: 5V, 0.55A
- Power Saving By Link Status
- Yes
- Standby Power Consumption
- 0.4 W
- Storage Humidity
- 5% ~ 95% RH
- Storage Temperature
- -40 ~ 70 °C
- Store & Forwarding
- Yes
- Switching Capacity
- 1 Gbps
- Weight
- 434 g
