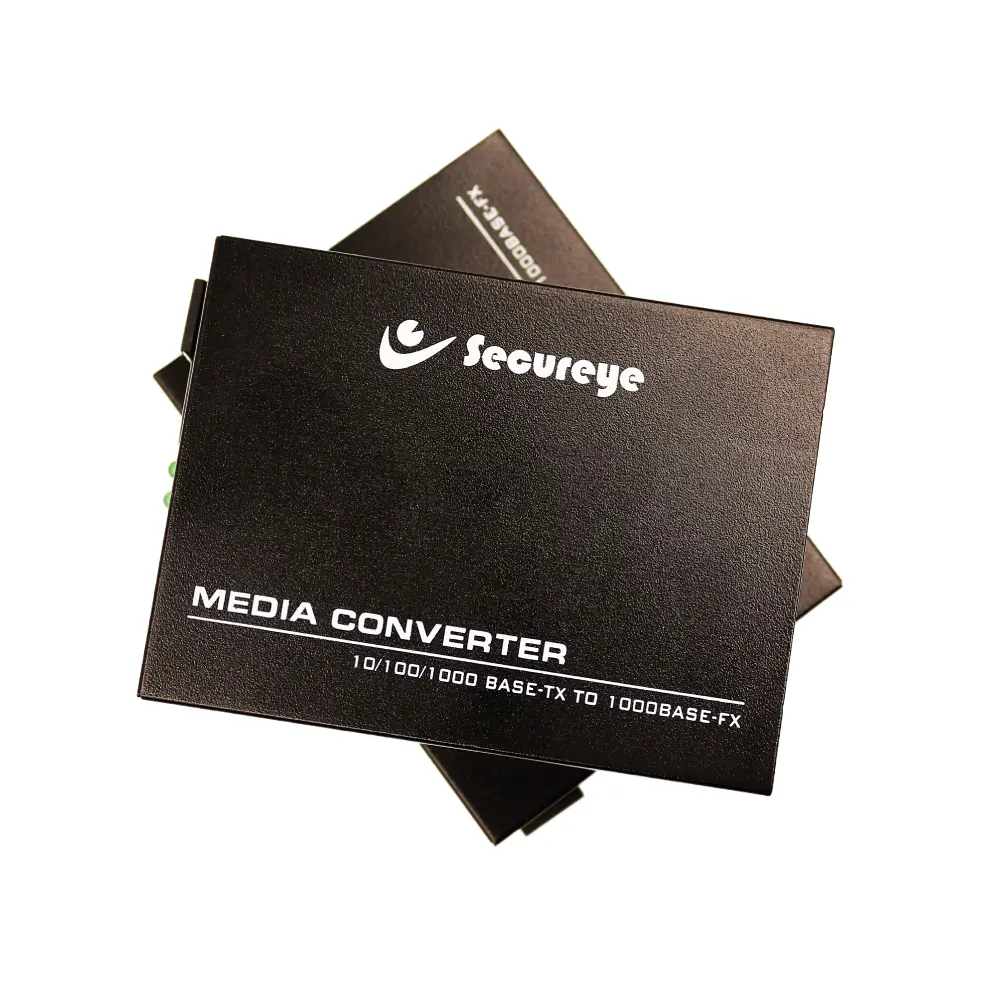

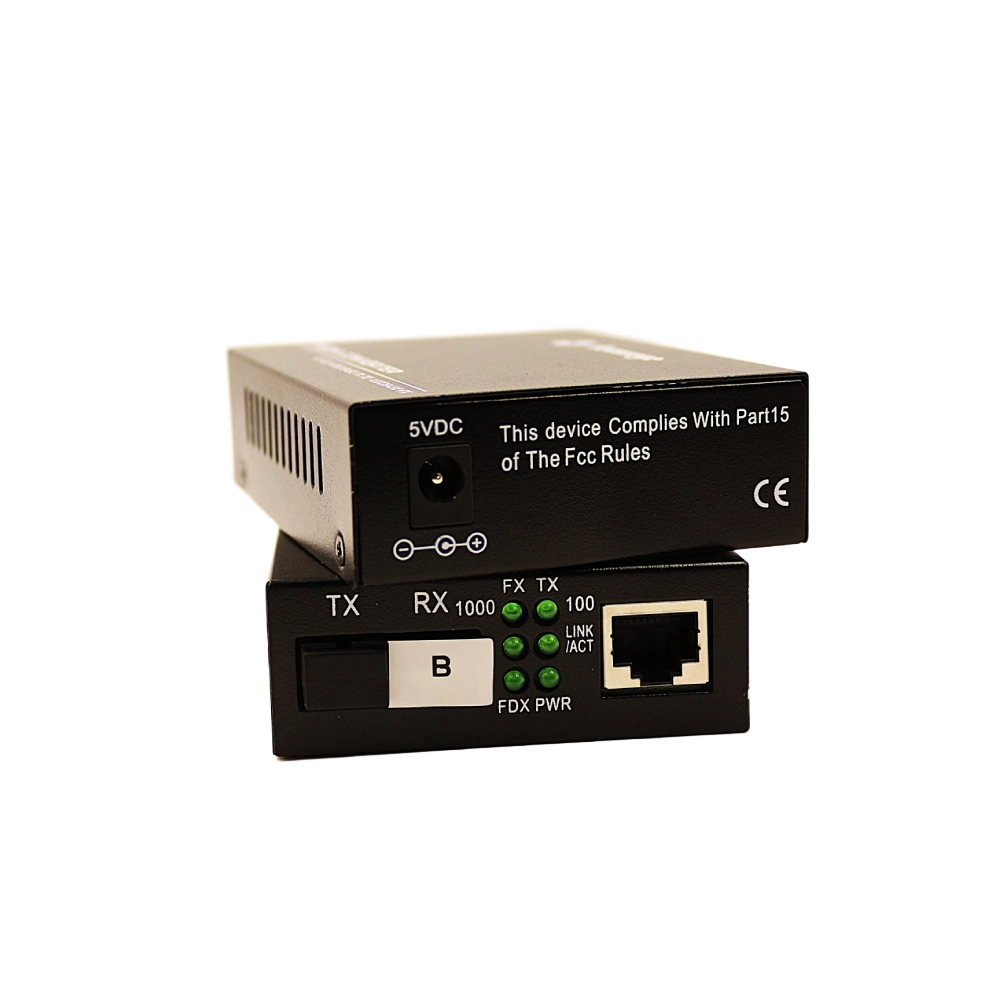

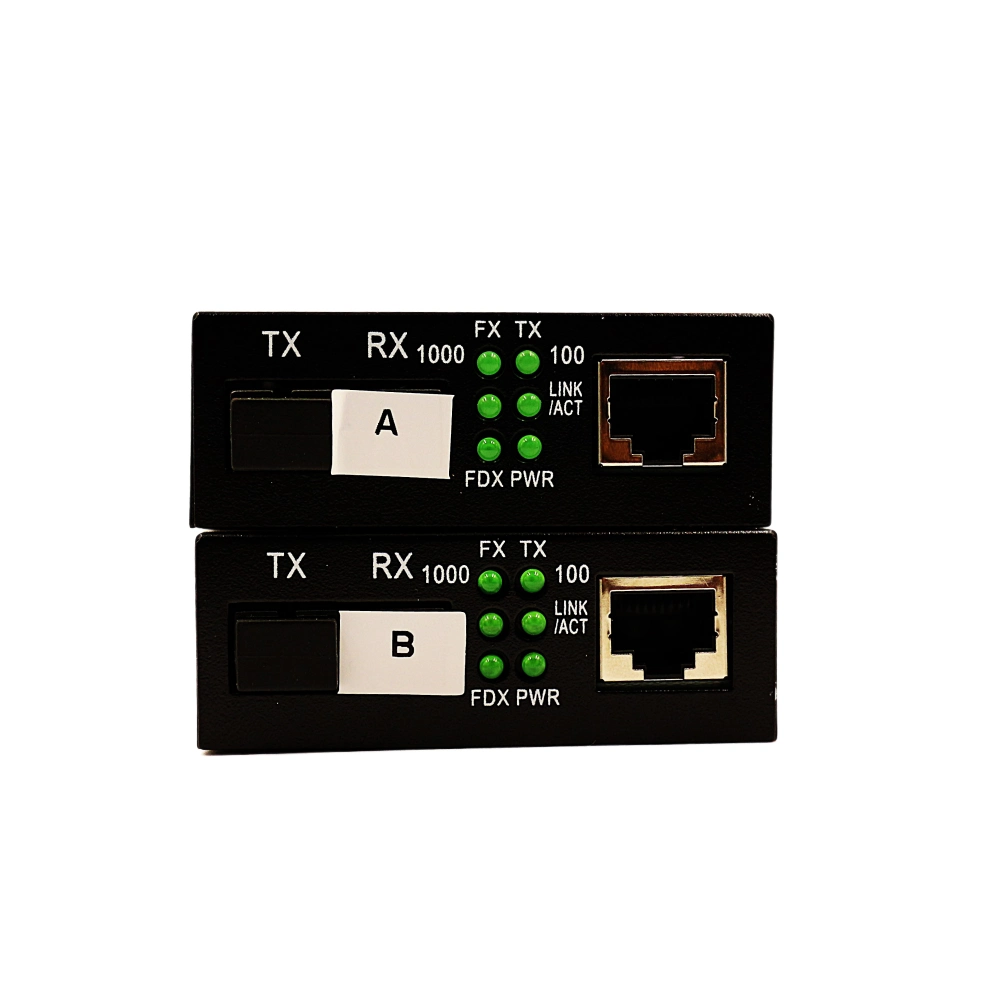

Secureye Fiber Media Converter Giga Pair 10/100/1000 Giga

Product ID: P2371
Item CD: 09FXFK0
Model: S-SMSF-GE
Warranty Period: 2 Years From Secureye Service Center
Service Center List: View
Product URL: View Product

Call For Bulk Qty - 83028 85193

Specifications

Standard: IEEE802.3u,10/100/1000Base -T,1000Base-SX/LX, IEEE802.3ah, IEEE802.3z/ab
Flow control: IEEE8.2.3x port flow control and backpressure control
Transmission speed: 10M/100/1000M auto-negotiation
Transmission mode: Full-duplex/semiduplex (auto-negotiation)
Conversion mode: Storage transmission
MAC Address: VLAN 4K
Buffer space: 128KB
Packet length: Storage transmission: 9728Bytes, straight-through, infinite.
Time-delay: 9.6us
MTBF: 100,000 hours
Power Supply: AC100~265V 50/60Hz / DC5V 1A
Interface: Eletric port: RJ45,Fiber port:SC/FC or SFP
Twisted-pair: Cat.5,Cat.6
Singlemode fiber: 8/125,8.3/125,9/125um
Wavelength: 850nm/1310nm/1550nm
Single fiber single mode: 20Km (40/60/80Km) Optional (Transmission distance)
Cat5/Cat-6 twisted-pair: 100m (Transmission distance)
Operating Temperature: -10~60° C
Storage temperature: -40~70° C
Humidity: 5%~90% (no condensation)
