- Product Name

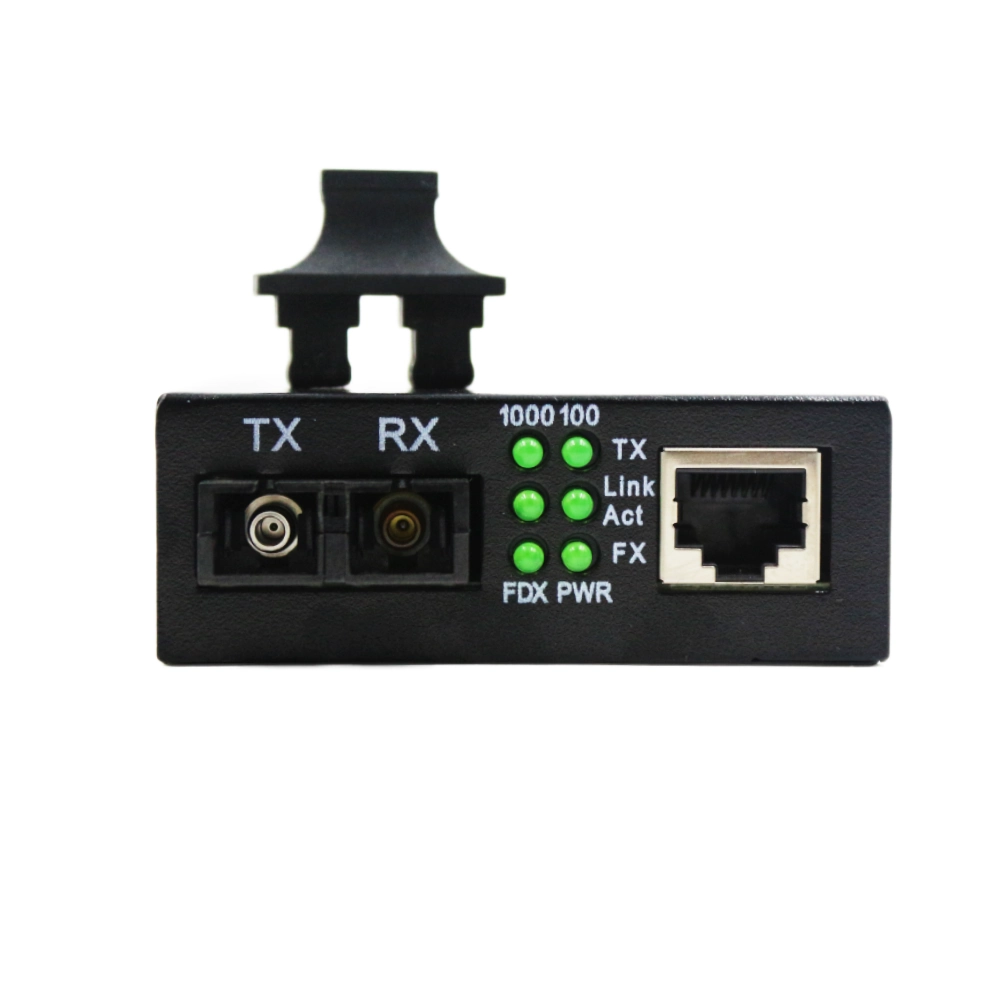

- Metro Dual Fiber Media Converter 10/100/1000 Giga
- Standards
- IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
- Interface
- 10/100/1000 Mbps RJ45 port x1, Dual Fiber SC/LC port x1
- Fiber Type
- Dual Fiber (Single-mode / Multi-mode, based on model)
- Transmission Distance
- Up to 550m (Multi-mode), Up to 20km (Single-mode)
- Wavelength
- 850nm (Multi-mode), 1310nm/1550nm (Single-mode)
- MAC Table & Buffer
- 4K MAC address table, 256K Memory buffer
- Forwarding Rate
- 10M: 14,880 pps 100M: 148,800 pps 1000M: 1,488,000 pps
- Diagnostic LEDs
- PWR, TXL, FXL, 100M, 1000M, TX, RX
- Power
- External Power Adapter Input: AC 120V-240V Voltage Requirement: DC 5V/2A Power Consumption: 6W
- Operating & Storage Temperature
- Operation: 0°C - 70°C Storage: -40°C - 85°C Humidity: 5% - 90% (non-condensing)
- Dimensions & Weight
- 155 x 126 x 41 mm (WxDxH), 0.8kg
- Certifications
- FCC Class A, CE
