- Brand
- Gigabyte
- Model
- H81M H
- Product Type
- DDR3 Motherboard
- Processor Support
- Intel 4th Gen Core i7 / i5 / i3 / Pentium / Celeron Processors
- Socket
- LGA 1150
- Chipset
- Intel H81 Express Chipset
- Form Factor
- Micro ATX
- Memory Support
- 2 × DDR3 DIMM Slots, Up to 16GB
- Memory Speed
- DDR3 1600 / 1333 MHz
- Memory Architecture
- Dual Channel
- Graphics Output
- HDMI, VGA (D-Sub)
- Maximum Resolution
- HDMI: 4096 × 2160 @24Hz
- Audio
- Realtek ALC887 HD Audio, 7.1 Channel
- LAN
- Realtek Gigabit LAN (10/100/1000 Mbps)
- Expansion Slots
- 1 × PCIe x16, 2 × PCIe x1
- SATA Ports
- 2 × SATA 6Gb/s, 2 × SATA 3Gb/s
- USB Ports
- 2 × USB 3.0, 6 × USB 2.0
- Internal Connectors
- 24-pin ATX, 4-pin CPU Power, Front Audio, USB Headers, Fan Headers

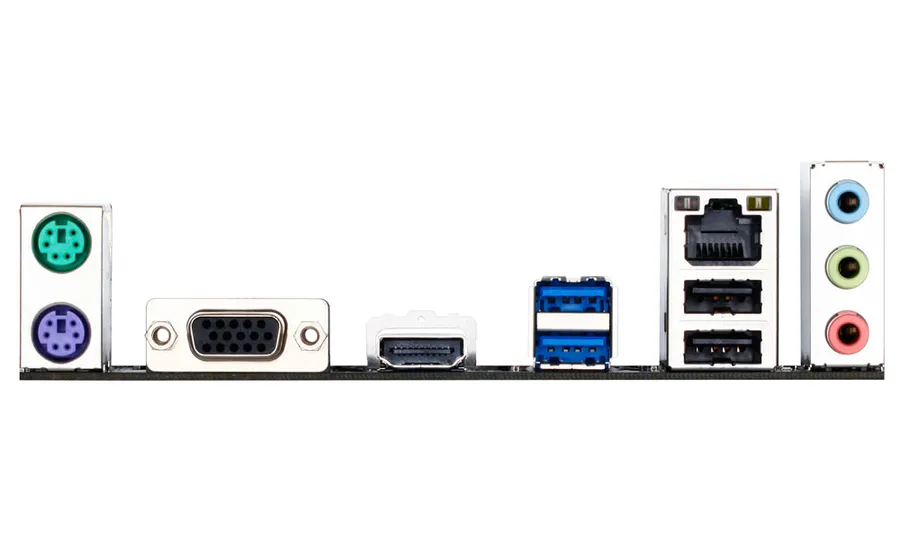

- Back Panel Ports
- PS/2, HDMI, VGA, USB 3.0, USB 2.0, RJ45 LAN, Audio Jacks
- BIOS
- AMI EFI BIOS
- Special Features
- Q-Flash, APP Center, EasyTune, ON/OFF Charge, Smart Recovery
- Operating System Support
- Windows 10 / 8.1 / 8 / 7
- Motherboard Size
- 22.6 × 17 cm
- Usage
- Desktop PC, Office PC, Entry Gaming & Upgrade Builds
