- Component
- Description
- Chipset
- Intel H310
- CPU SUPPORT
- Socket 1151 for 9th / 8th Gen Intel Core, Pentium and Celeron processors Maximum CPU TDP (Thermal Design Power): 95Watt * Please refer to www.biostar.com.tw for CPU support list.
- MEMORY
- Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list.
- INTEGRATED VIDEO
- By CPU model Supports DX12 Supports HDCP
- STORAGE
- 4 x SATA III Connectors (6Gb/s) * Specifications vary by CPU types
- LAN
- RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
- AUDIO CODEC
- ALC887 7.1 Channels, High Definition Audio Support HD Audio
- USB
- 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header) 6x USB 2.0 port (4 on rear I/Os and 2 via internal header)
- EXPANSION SLOT
- 2x PCIe 2.0 x1 Slot 1x PCIe 3.0 x16 Slot * Specifications vary by CPU types

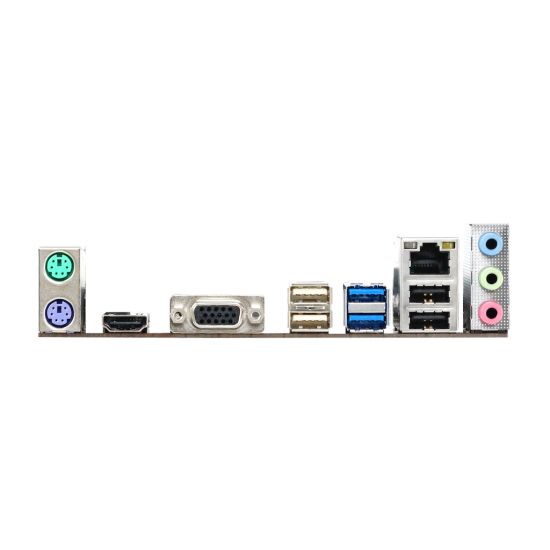

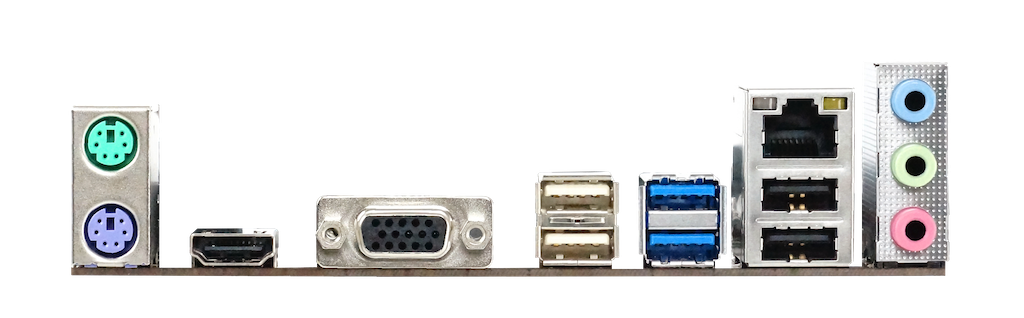

- REAR I/O
- 1x PS/2 Mouse Port 1x PS/2 Keyboard Port 1x HDMI Port 1x VGA Port 1x LAN Port 4x USB 2.0 Port 2x USB 3.2(Gen1) Port 3x Audio Jack
- INTERNAL I/O
- 4x SATA III Connector 1x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports) 1x 8-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 1x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Clear CMOS Header 1x COM Port Header
- H/W MONITORING
- CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring
- DIMENSION
- Micro ATX Form Factor Dimension: 226mm x 171mm (W x L)
- OS SUPPORT
- Supports Windows 7/ 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
- BUNDLE SOFTWARE
- BullGuard
- ACCESSORIES
- 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide
